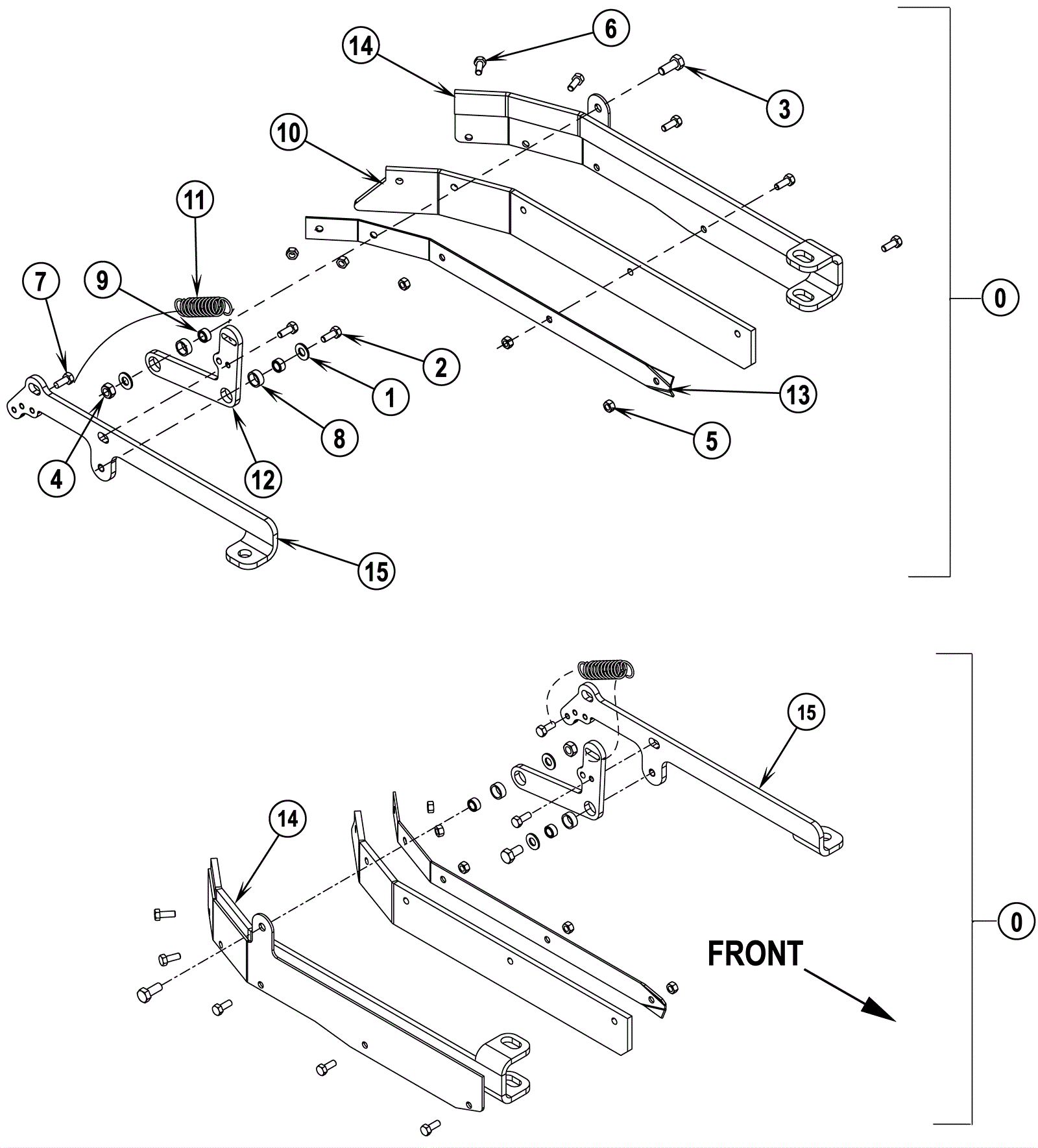

ADGRESSOR 3820D Skirt Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
0a 272-5419 Left skirt assembly $383.41 1 usually ships 17-28 days
0b 272-5420 Right skirt assembly $413.78 1 usually ships 17-28 days
1 999-9004 Washer 5/16 SAE flat stainless steel $1.69 2 ships same day
2 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 1 ships same day
3 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 1 ships same day
4 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
5 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 5 ships same day
6 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 6 ships same day
7 999-1644 Screw M6-1 x 16mm hex lock $2.37 1 usually ships 1-5 days
8 172-2742 Bushing $13.76 2 usually ships 1-5 days
9 172-4008 Bushing $33.43 2 ships same day
10a 172-3417 linatex skirt $29.51 1 (standard) usually ships 17-28 days
10b 172-8874 Gum rubber skirt $16.57 1 (optional) ships same day
10c 272-5425 Scrub deck blade linatex (pkg of 4) $95.66 1 (standard)(for use on 35 and 38 inch decks)(includes 10 and 58 in Scrub Assembly - Cylindrical 35-38 inch models) usually ships 17-28 days
10d 272-6065 Cylindrical deck blade kit 35/38 inch gum rubber $104.61 1 (optional)(for use on 35 and 38 inch decks)(includes 10 and 58 in Scrub Assembly - Cylindrical 35-38 inch models) usually ships 1-5 days
11 172-2344 Extension spring $12.31 1 usually ships 17-28 days
12 272-6088 Mount arm $26.04 1 usually ships 1-5 days
13 272-6089 Skirt retainer $32.69 1 usually ships 1-5 days
14a 272-6090 Left hand skirt bracket weldment $131.95 1 usually ships 1-5 days
14b 272-6091 Right hand skirt bracket weldment $131.95 1 usually ships 1-5 days
15a 272-6092 Left hand mount bracket $46.00 1 usually ships 1-5 days
15b 272-6093 Right hand mount bracket $46.00 1 usually ships 1-5 days
