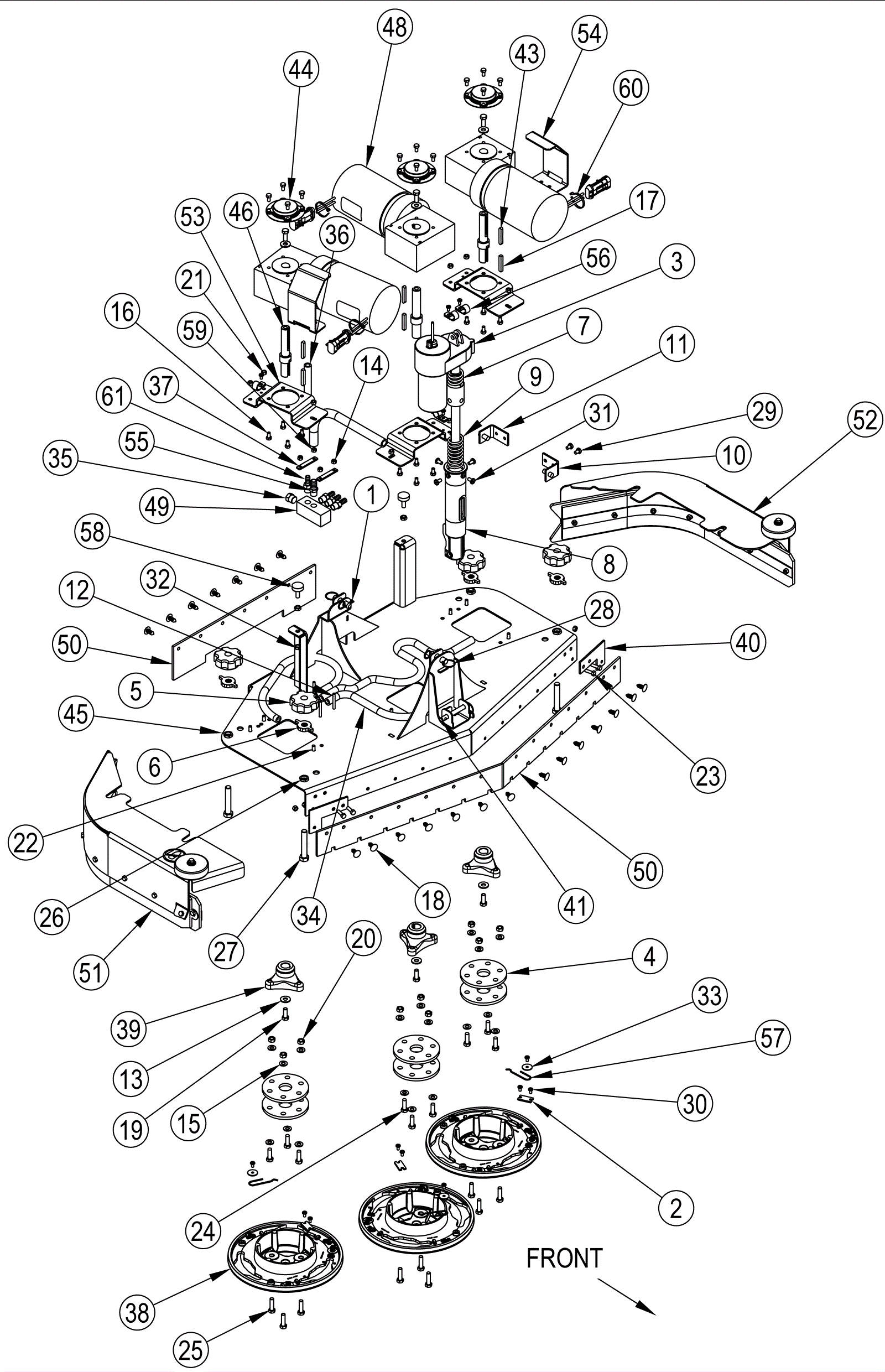

ADGRESSOR 3820D Scrub Assembly - Disk 35-38 Inch Models

#PartDescriptionPriceReqNotesAvailability
1 172-2001 Hair cotter pin $10.85 2 usually ships 16-41 days
2 172-0155 Stop plate $12.31 3 usually ships 16-41 days
3a 172-8921 Actuator $551.66 1 usually ships 16-41 days
3b 172-8922 Plastic drive nut $19.98 1 usually ships 16-41 days
4 172-2070 Thermoid disk $9.26 6 ships same day
5 172-9281 Knob $11.57 4 usually ships 16-41 days
6 172-9282 Knob $13.17 4 ships same day
7 172-8941 Compression spring $29.23 1 usually ships 16-41 days
8 172-8952 Spring housing $72.63 1 usually ships 16-41 days
9 172-8953 Compression spring $35.60 1 usually ships 16-41 days
10 172-8954 Nut retainer $52.67 1 usually ships 16-41 days
11 172-8955 Nut retainer $52.67 1 usually ships 16-41 days
12 999-1901 Screw 10-24 x 1 3/4 pan phillips stainless steel $0.99 4 usually ships 1-5 days
13 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
14 999-0199 Nut 10-24 nylon insert lock zinc plated $0.99 4 ships same day
15 999-9004 Washer 5/16 SAE flat stainless steel $1.69 18 ships same day
16 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 24 ships same day
17 172-3375 Square keyway $12.31 3 usually ships 16-41 days
18 991-5122 1/4 nylon tree push-in rivet $1.55 21 ships same day
19 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel $0.99 6 ships same day
20 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 9 ships same day
21 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 13 ships same day
22 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 9 ships same day
23 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 4 (38 inch) ships same day
24 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 9 ships same day
25 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 9 ships same day
26 999-1377 Nut M12-1.75 hex jam $0.99 4 ships same day
27 999-1349 Screw M12-1.75 x 70mm full thread hex head stainless steel $5.98 4 ships same day
28 172-3360 Ring pin 1/2 x 1-1/4 $7.24 2 usually ships 16-41 days
30 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 13 ships same day
31 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 4 ships same day
32 999-0430 Nut 5/16-18 hex jam plain finish $0.99 4 ships same day
33 999-0588 Washer 7/8 flat stainless steel $11.44 3 ships same day
34 272-1036 Solution hose $26.04 3 usually ships 1-5 days
35 272-9961 Pipe plug $12.31 1 usually ships 16-41 days
36 272-2314 Wire reinforced clear hose 3/4 $13.17 1 usually ships 1-5 days
37 272-6076 Plate $12.31 2 usually ships 1-5 days
38 172-2089 Drive plate $83.78 3 usually ships 16-41 days
39 172-2088 Drive hub (OBSOLETE) $46.00 3 usually ships 16-41 days
40 272-6073 Forward skirt bracket $19.98 2 (38 inch) usually ships 1-5 days
41 172-3368 Cotterless hitch pin $46.00 1 usually ships 16-41 days
42 272-0193 Barb adapter $12.31 4 usually ships 1-5 days
43 172-3388 Square keyway $12.31 3 usually ships 16-41 days
44 172-3389 Gearbox cover $18.38 3 usually ships 1-5 days
45 272-6077 35-38 inch disk deck weldment $1,608.28 1 usually ships 1-5 days
46 272-6078 Hub mount shaft $125.77 3 usually ships 16-41 days
48a 272-6614 Brush drive motor assembly $1,608.28 3 usually ships 16-41 days
48b 272-6079 Replacement gearbox $1,225.03 usually ships 1-5 days
48c 272-6080 36V replacement drive motor $1,837.46 usually ships 16-41 days
48d 272-6081 Carbon brush kit $98.68 (1 kit per motor) usually ships 1-5 days
49 272-6082 Solution manifold $44.58 1 usually ships 1-5 days
50a 272-5685 Skirt blade kit 35 inch gum rubber (red) (pkg of 2) $261.02 1 (standard)(includes 18, 51 and 52) usually ships 16-41 days
50b 272-6087 Disk blade kit $551.66 1 (optional)(includes 18, 51 and 52) usually ships 1-5 days
50c 272-8942 38 inch squeegee blade deck kit gum rubber $229.88 1 (standard)(includes 18, 51 and 52) usually ships 16-41 days
50d 993-2696 BLADE KIT, TAN GUM $123.00 1 (optional)(includes 18, 51 and 52) usually ships 1-5 days
51 272-6083 Right hand skirt assembly $597.67 1 usually ships 1-5 days
52 272-6084 Left hand skirt assembly $597.67 1 usually ships 1-5 days
53 272-6085 Motor bracket $27.58 3 ships same day
54 272-6086 Motor guard bracket $41.54 2 usually ships 1-5 days
55 172-0200 Barb fitting 1/4 x 1/2 $12.31 1 usually ships 1-5 days
56 181-0269 P clamp $12.31 4 usually ships 1-5 days
57 172-2087 Spring retainer $17.39 3 ships same day
58 172-2503 Tank leveler $13.76 2 usually ships 16-41 days
59 172-2815 Main solution hose $13.17 1 usually ships 16-41 days
