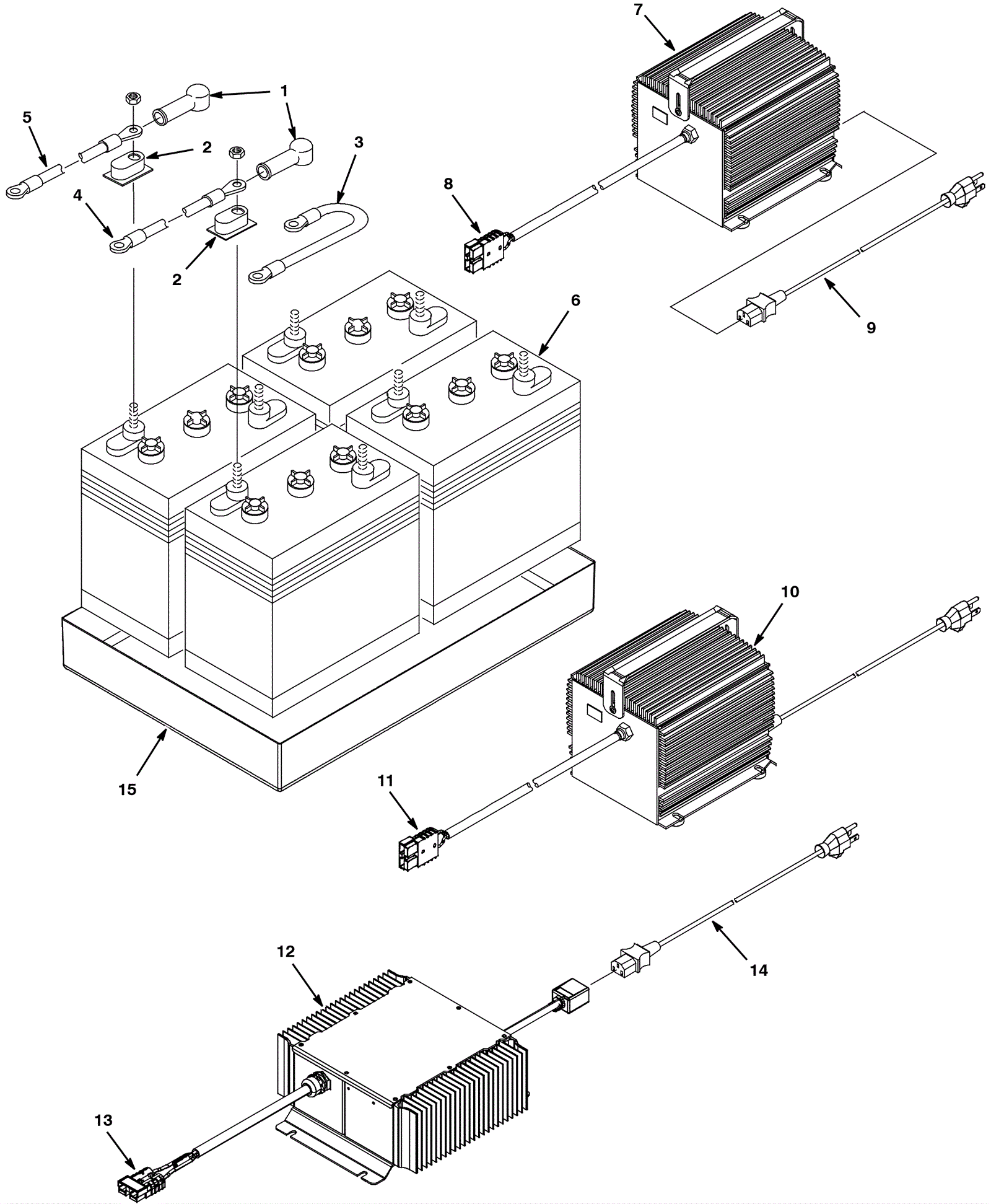

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-1103
|
Battery cable boot (black) |
8 |
|
|
2a |
175-2121
|
Battery terminal cover (clear) |
8 |
|
|
2b |
275-5948
|
Battery terminal cover (black) |
8 |
|
|
3 |
998-0010
|
Battery jumper cable - ring type (red) |
3 |
|
|
4 |
175-3138
|
Battery cable 5/16 x 3/8 (red) |
1 |
|
|
5 |
175-3137
|
Battery cable (black) |
1 |
|
|
6a |
162-0003
|
6V 225Ah wet battery (SNSR) |
4 |
|
|
6b |
162-0043
|
6V 224Ah AGM battery (Group GC2) (SNSR) |
4 |
|
|
7a |
175-3139
|
24V 19amp off board battery charger |
1 |
(includes 8-9) |
|
7b |
375-0042
|
24V 19amp battery charger for AGM batteries |
1 |
(includes 8-9) |
|
8 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
9 |
275-0052
|
16/3 charger extension cord 10 foot |
1 |
|
|
15 |
175-8751
|
Battery tray |
1 |
|
|
