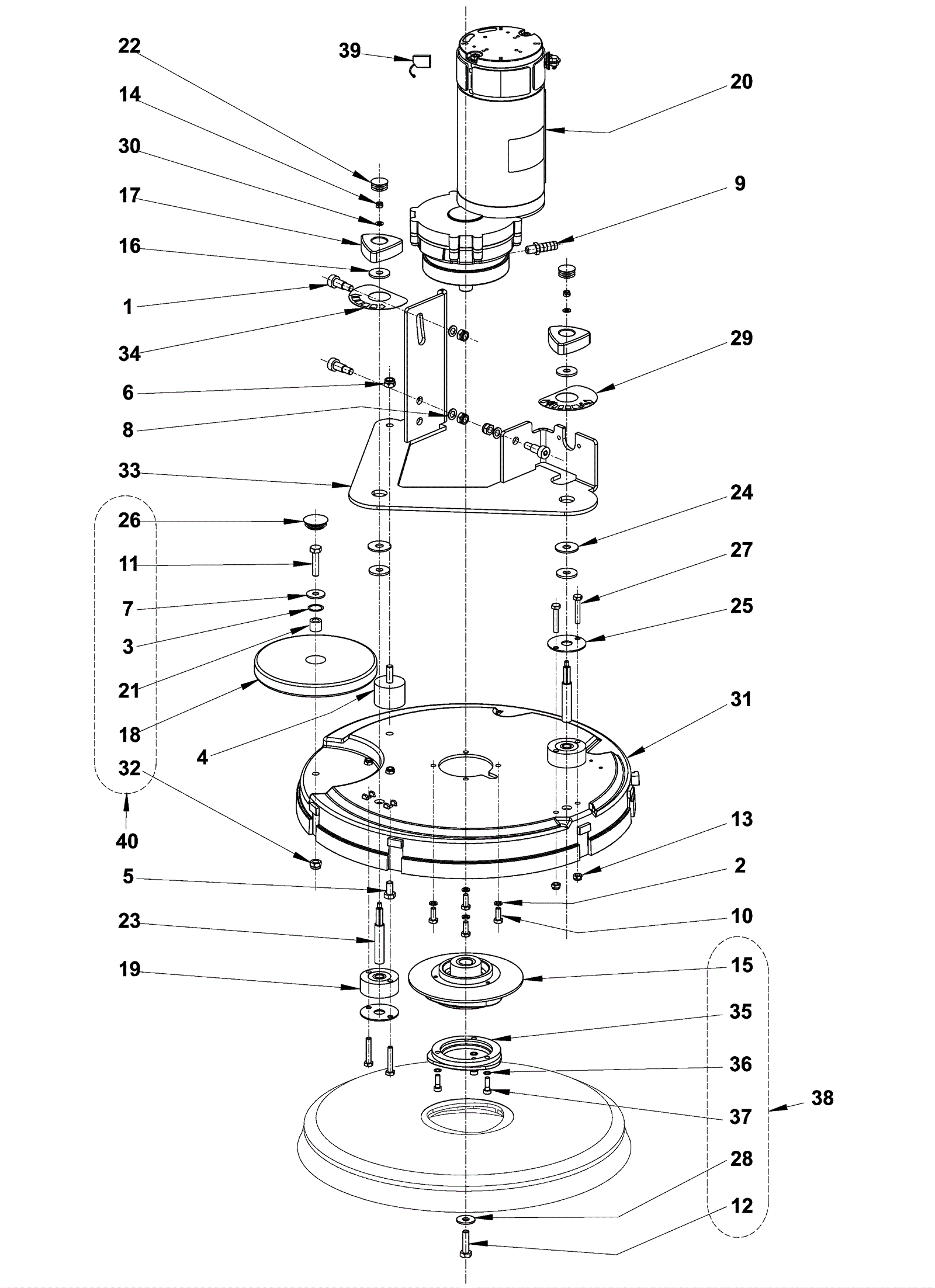

ADFINITY 17ST Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-4807 Bolt M10 x 16mm shoulder $5.26 3 usually ships 16-41 days
2 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
3 172-4817 Bumper wheel kit $268.66 1 (Spring washer) ships same day
4 272-1919 Vibration damping M8 (set of 2) $48.32 1 ships same day
5 272-6321 Brush deck hardware kit $154.41 1 (Screw M8 x 16mm hex head stainless steel) usually ships 16-41 days
6 272-6321 Brush deck hardware kit $154.41 4 (Nut M8 self locking) usually ships 16-41 days
7 172-4817 Bumper wheel kit $268.66 1 (Washer M8) ships same day
8 999-1262 Washer M10 flat $1.47 3 ships same day
9 272-1978 Rubber barb $11.26 1 usually ships 16-41 days
10 172-4810 Screw M6 x 16mm hex head stainless steel $8.80 4 usually ships 16-41 days
11 172-4817 Bumper wheel kit $268.66 1 (Screw M8 x 30mm hex head stainless steel) ships same day
12 272-5385 Polygonal holder with flange kit $115.52 1 (Screw M6 x 20mm hex head stainless steel) usually ships 16-41 days
13 272-6321 Brush deck hardware kit $154.41 4 (Nut M6 self locking) usually ships 16-41 days
14 272-0770 Nut M5 self-locking (OBSOLETE) $9.24 2 usually ships 1-5 days
15 272-5385 Polygonal holder with flange kit $115.52 1 (Brush hub) usually ships 16-41 days
16 172-5079 Washer M9 x 28mm flat (OBSOLETE) $8.80 4 usually ships 16-41 days
17 272-6321 Brush deck hardware kit $154.41 2 (Knob) usually ships 16-41 days
18 172-4817 Bumper wheel kit $268.66 1 (Bumper roller) ships same day
19 272-7135 Buffer $25.36 2 usually ships 16-41 days
20 372-1270 24V brush motor $1,640.40 1 usually ships 16-41 days
21 172-4817 Bumper wheel kit $268.66 1 (Spacer) ships same day
22 272-6321 Brush deck hardware kit $154.41 2 (Cap for knob) usually ships 16-41 days
23 272-6321 Brush deck hardware kit $154.41 2 (Plate pin) usually ships 16-41 days
24 272-6321 Brush deck hardware kit $154.41 2 (Rubber washer) usually ships 16-41 days
25 272-1939 Vibration damping plate $13.40 2 usually ships 16-41 days
26 172-4817 Bumper wheel kit $268.66 1 (Bumper cap) ships same day
27 272-5388 Screw M6 x 35mm (OBSOLETE) $6.29 4 usually ships 1-5 days
28 272-5385 Polygonal holder with flange kit $115.52 1 (Washer M5 flat) usually ships 16-41 days
29 272-5386 Brush adjusting decal (OBSOLETE) $5.93 1 usually ships 1-5 days
30 272-6321 Brush deck hardware kit $154.41 2 (Washer M5 stainless steel) usually ships 16-41 days
31 272-5387 Brush deck $95.70 1 usually ships 1-5 days
32 172-4817 Bumper wheel kit $268.66 1 (Nut M8 hex self locking) ships same day
33 172-4812 Brush deck holder plate $209.34 1 usually ships 16-41 days
34 172-4813 Brush adjusting decal (OBSOLETE) $6.96 1 usually ships 1-5 days
35 272-5385 Polygonal holder with flange kit $115.52 1 (Clutch plate) usually ships 16-41 days
36 272-5385 Polygonal holder with flange kit $115.52 1 (Washer M6) usually ships 16-41 days
37 272-5385 Polygonal holder with flange kit $115.52 1 (Screw) usually ships 16-41 days
38 272-5385 Polygonal holder with flange kit $115.52 1 (includes 12, 15, 28, 35, 36, 37) usually ships 16-41 days
39 272-0741 Carbon brush (pkg of 4) $469.96 1 usually ships 16-41 days
40 172-4817 Bumper wheel kit $268.66 1 (includes 3, 7, 11, 18, 21, 26, 32) ships same day
41 272-6321 Brush deck hardware kit $154.41 1 (includes 5, 6, 12, 13, 17, 20, 21, 22, 23, 24, 26, 30) usually ships 16-41 days
