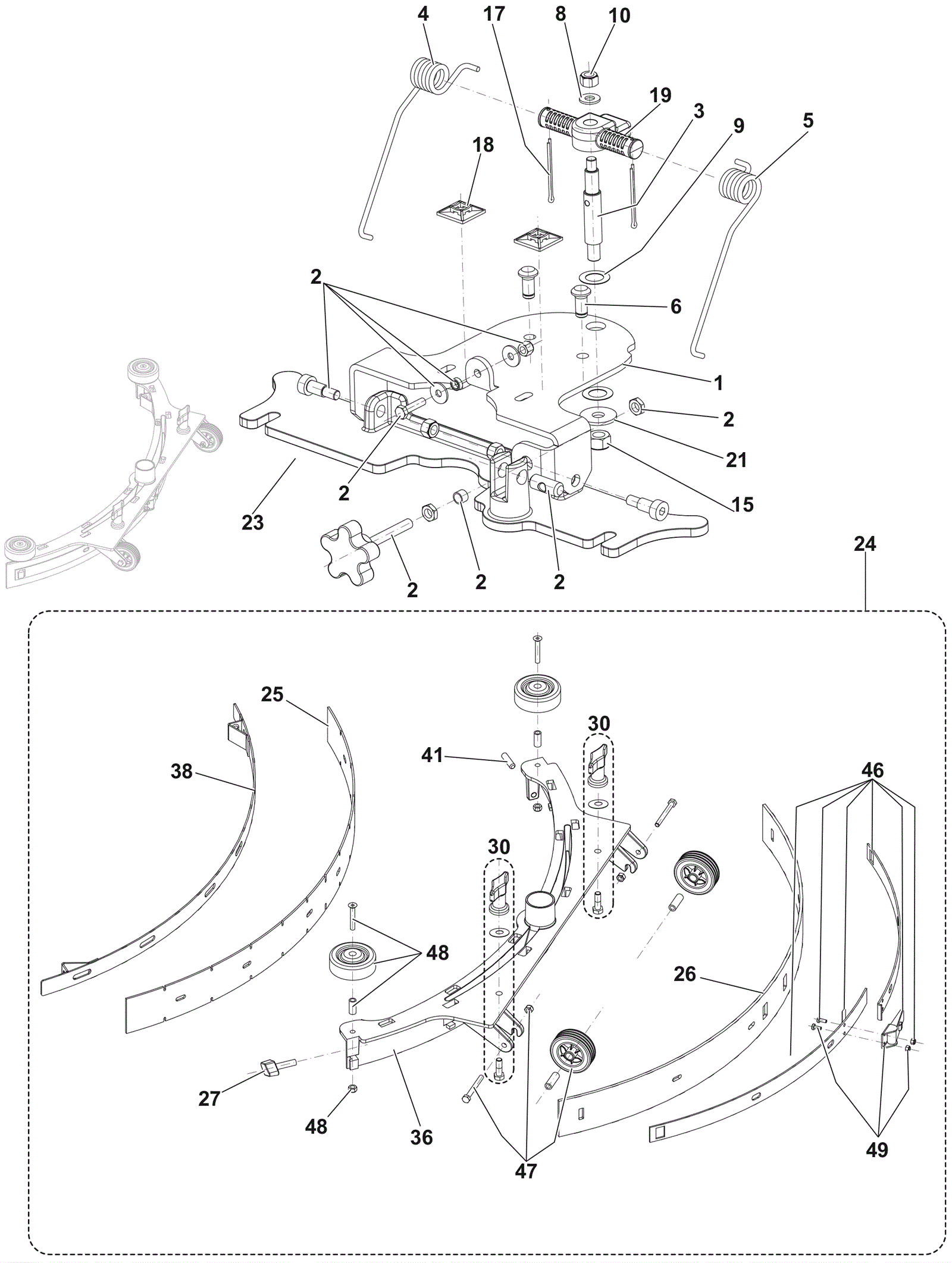

ADFINITY X20R REV Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-4774 Squeegee support bracket $181.96 1 usually ships 13-18 days
2 172-4796 Hardware fixing kit $232.99 2 usually ships 13-18 days
3 270-0395 Squeegee pin $15.17 1 ships same day
4 172-4776 Right hand squeegee torsion spring $13.78 1 ships same day
5 172-4777 Spring $13.78 1 ships same day
6 270-0398 Squeegee fixing pin $15.17 2 usually ships 13-18 days
8 999-1267 Washer M8 flat zinc $0.99 1 ships same day
9 272-2000 Washer M15 x 25mm plain nylon $11.19 2 usually ships 13-18 days
10 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 3 ships same day
15 172-4782 Nut M10 self locking $12.89 1 usually ships 13-18 days
17 270-0399 Split pin $11.35 2 usually ships 13-18 days
18 172-4784 Wire tie holder $11.35 2 ships same day
19 270-0114 Spring support $6.51 1 ships same day
21 999-9099 Washer M10 flat stainless steel $0.99 1 ships same day
23 272-7000 Squeegee mounting bracket kit $169.98 1 ships same day
24 272-7162 Squeegee kit $689.40 1 (includes 25-49) ships same day
25 272-2026 Squeegee blade kit gum rubber $50.78 1 ships same day
26 272-2026 Squeegee blade kit gum rubber $50.78 1 ships same day
27 272-8529 Knob M8 x 30mm stainless steel $25.75 1 usually ships 13-18 days
30 272-6579 Squeegee fixing kit $40.16 2 usually ships 13-18 days
36 172-4788 Squeegee weldment $255.29 1 ships same day
38 172-4789 Front squeegee strap (OBSOLETE) $46.00 1 usually ships 13-18 days
41 172-4790 Dowel M8 x 30mm $13.78 1 usually ships 13-18 days
46 172-4792 Rear squeegee strap and hardware kit $177.07 1 ships same day
47 172-4793 Squeegee wheel kit $124.22 2 ships same day
48 172-4794 Squeegee bumper wheel kit $106.34 2 ships same day
49 172-4795 Squeegee latch kit $91.65 1 usually ships 13-18 days
N/S 272-2026 Squeegee blade kit gum rubber $50.78 1 ships same day
N/S 272-6320 Squeegee adjustment washer kit $22.58 1 usually ships 13-18 days
N/S 372-1312 Squeegee blade kit linatex $112.55 1 ships same day
