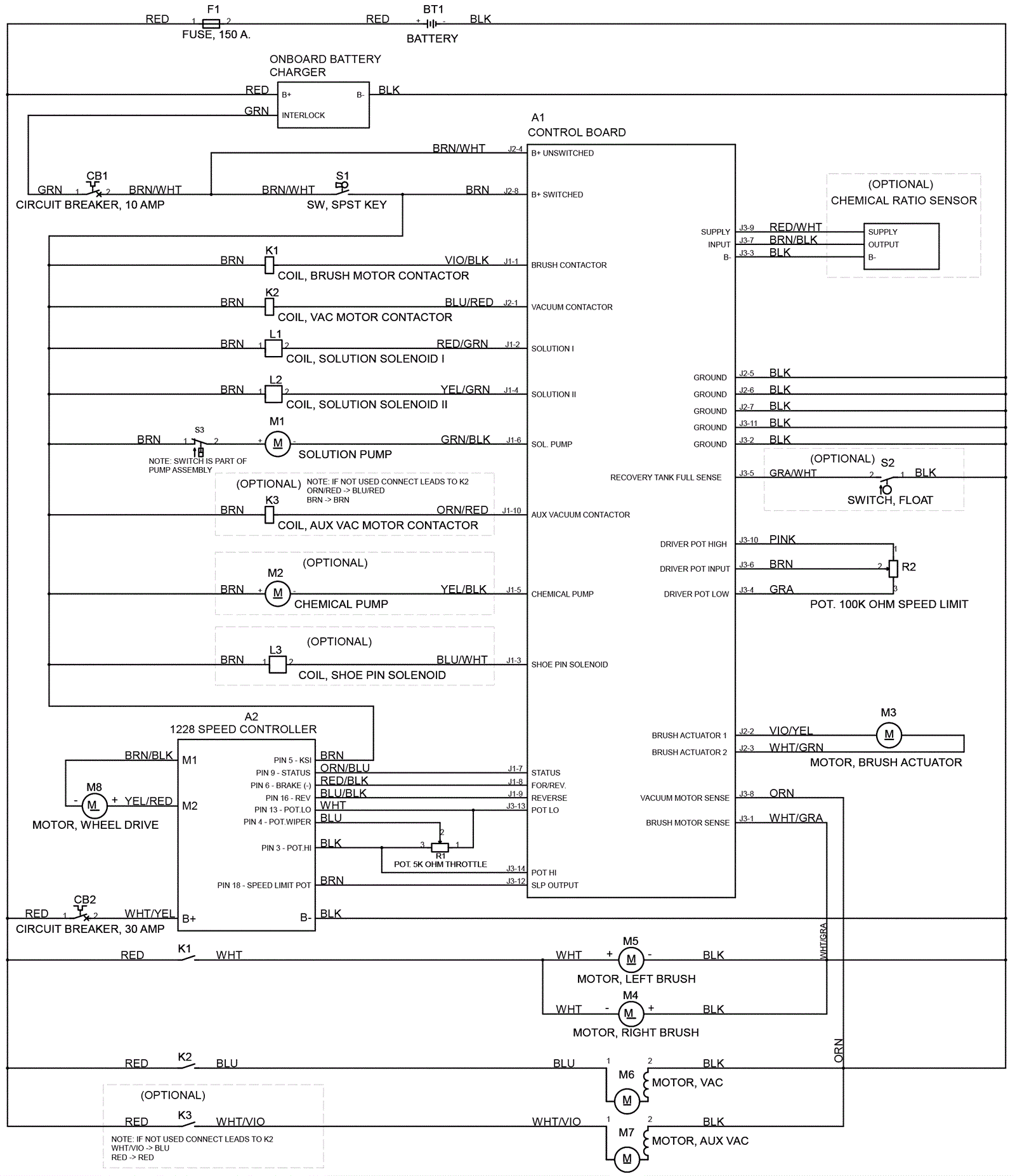

AQUAPLUS Wiring diagram

#PartDescriptionPriceReqNotesAvailability
A1a 272-9365 Control panel assembly $1,558.88 1 (AquaPLUS and AXP) usually ships 16-41 days
A1b 272-9366 Control panel assembly $1,491.27 1 (Adphibian) usually ships 1-5 days
A2 272-9361 Speed controller $464.77 1 usually ships 16-41 days
BT1 162-0003 6V 225Ah wet battery (SNSR) $269.50 4 ships same day
CB1 272-9374 10amp circuit breaker $21.77 1 ships same day
CB2 272-2209 30amp circuit breaker $12.18 1 ships same day
F1 172-8836 150amp fuse $17.41 1 usually ships 16-41 days
K1 272-9362 24V 200amp contactor $92.60 1 usually ships 16-41 days
K2 272-9360 24V 100amp contactor $57.12 1 usually ships 16-41 days
L1 272-5312 24V solenoid valve $142.40 1 ships same day
L2 272-5312 24V solenoid valve $142.40 1 ships same day
M1 272-8540 24V pump $372.81 1 usually ships 16-41 days
M2 272-2175 Chemical pump $264.47 1 (AXP and Adphibian) ships same day
M3 272-9370 Actuator assembly $718.72 1 usually ships 16-41 days
M4 272-2148 24V brush motor $732.57 1 usually ships 16-41 days
M5 272-2148 24V brush motor $732.57 1 usually ships 16-41 days
M6 272-5311 24V 3 stage vacuum motor $332.08 1 usually ships 16-41 days
M7 272-5311 24V 3 stage vacuum motor $332.08 1 usually ships 16-41 days
M8 272-2335 24V transaxle $1,059.40 1 usually ships 16-41 days
R1 172-2039 5K potentiometer $55.83 1 ships same day
R2 991-9022 100K Potentiometer (speed control) $51.89 1 usually ships 16-41 days
S1a 272-2195 Key switch assembly $81.46 1 usually ships 16-41 days
S1b 272-2196 Keys (pkg of 2) $38.04 1 ships same day
S2 272-2104 Float switch $103.10 1 (optional on AquaPLUS and standard on Adphibian) ships same day
S3 N/A Not available Call for price 1 (switch) (part of M7) usually ships 3-26 days
N/S 172-8951 Carbon brush and spring kit $147.74 2 (for M4 and M5) (order if your scrub motor has a serial tag from Scott Motors Co. (4BB1344)) ships same day
N/S 472-7212 MOTOR BRUSH/SPRING KIT $50.11 2 (for M4 and M5) (order if your scrub motor has a serial tag from Nilfisk-Advacne (ZD22000)) usually ships 16-41 days
N/S 170-1960 Carbon brush set $21.77 1 (for M6 and M7) usually ships 16-41 days
N/S 272-2336 Motor (OBSOLETE) $424.44 1 (for M8) usually ships 1-5 days
N/S 272-2337 Carbon brush assembly $257.94 4 (for M8) usually ships 1-5 days
N/S 272-2338 Neoprene mounting sleeve $24.71 2 (for M8) usually ships 16-41 days
N/S 272-2358 24V onboard battery charger $1,117.17 1 (onboard charger models only) usually ships 16-41 days
N/S 272-8198 Thermistor repair kit $30.12 1 (for 272-2358) usually ships 1-5 days
N/S 272-2176 Chemical sensor assembly $176.61 1 (AXP) usually ships 1-5 days
N/S 272-9377 Main harness $773.17 1 usually ships 1-5 days
N/S 272-9378 Scrub deck ground harness $10.90 1 usually ships 1-5 days
N/S 172-2164 Cable assembly - ring terminal type $51.89 3 usually ships 16-41 days
N/S 172-0223 Battery cable boot $8.20 8 ships same day
N/S 272-7413 Cable tie $10.90 2 usually ships 1-5 days
N/S 372-2096 Cable tie $10.90 9 usually ships 16-41 days
N/S 172-3451 Battery spacer $12.18 1 usually ships 16-41 days
