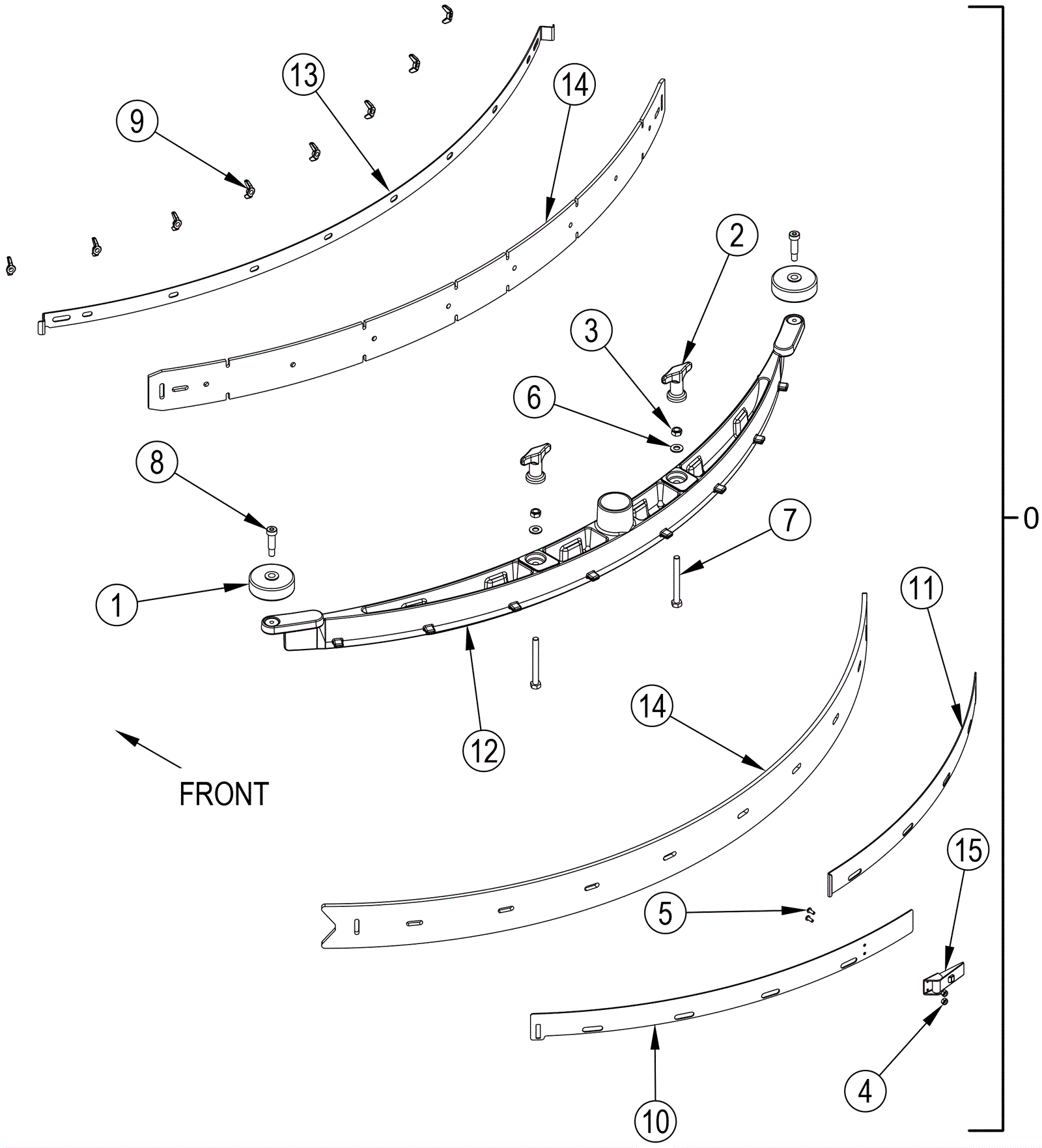

ADPHIBIAN Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 272-2350 26 inch squeegee assembly $618.74 1 (includes 1-15) (to replace all squeegee straps as a set order 172-0828) (172-0828 includes both rear strapsa, front strap and latch) ships same day
1a 172-0045 Guide wheel $13.40 2 (OEM) ships same day
1b 991-3051 Guide wheel $4.95 2 (NON-OEM) ships same day
2 172-4099 Nut 5/16-18 thumb $11.26 2 ships same day
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
4 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
5 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
6 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
7 272-2754 Screw 5/16-18 x 3 hex head full thread $10.56 2 ships same day
8 999-1256 Screw 5/16-18 x 3/8 x 1 socket head shoulder $4.84 2 ships same day
9 999-0603 Nut 1/4-20 wing stainless steel $7.33 6 ships same day
10a 994-0057 Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) $33.75 1 (optional, includes front and rear squeegee blades) (NON-OEM) ships same day
10b 994-0058 Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) $171.00 1 (optional, includes both front and rear blades) (NON-OEM) usually ships 5-16 days
10c 272-2355 Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) $72.26 1 (optional, includes both front and rear blades) (OEM) ships same day
10d 272-2354 Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) $49.86 1 (optional, includes both front and rear blades) (OEM) ships same day
10e 172-3482 Squeegee blade kit 26 and 28 inch neoprene $179.06 1 (optional, includes both front and rear blades) (OEM) usually ships 16-41 days
11a 172-3461 Right rear strap $11.99 1 ships same day
11b 172-3458 Left rear strap $11.99 1 usually ships 16-41 days
12 172-3473 Squeegee weldment $402.90 1 usually ships 16-41 days
13 172-3464 Front strap $54.10 1 usually ships 16-41 days
14 272-2354 Squeegee blade kit 26 and 28 inch gum rubber (pkg of 2) $49.86 1 (includes both front and rear blades) ships same day
15 172-0094 Latch $43.41 1 ships same day
