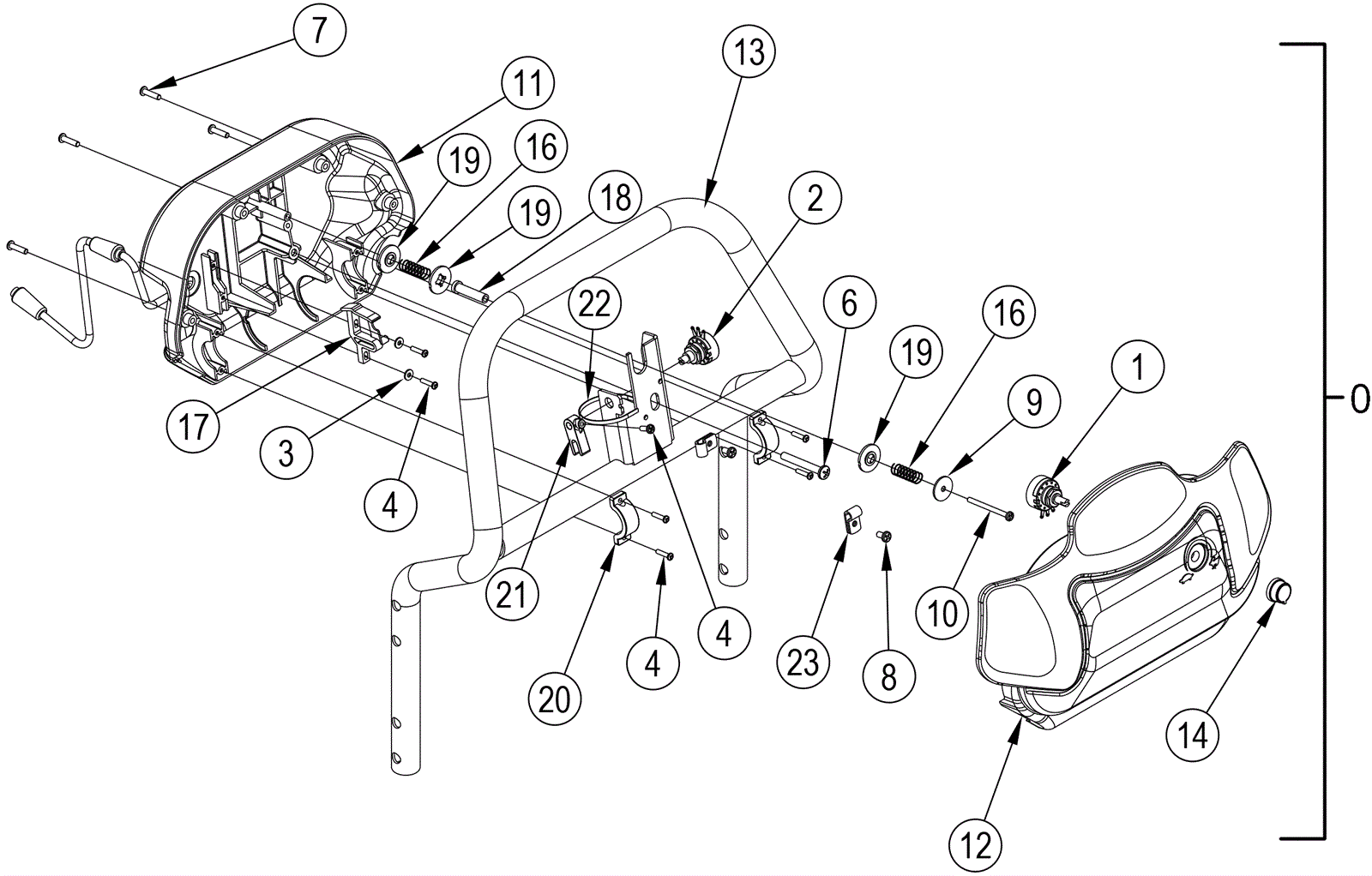

Paddle Assembly

#PartDescription ReqNotesAvailability
0 272-9364 Paddle assembly 1 (includes 1-23)
1 991-9022 100K Potentiometer (speed control) 1
2 572-5037 Potentiometer 5K S9 (curve) 1
3 999-1215 Washer #6 SAE flat zinc plated 2
4 999-1362 Screw 6-18 x 5/8 pan head phillips stainless steel 7
6 172-2035 Screw 1/4-10 x 2 pan head phillips 1
7 272-2188 Screw 8-10 x 3/4 pan head phillips plastite 4
8 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc 2
9 999-0588 Washer 7/8 flat stainless steel 1
10 172-2037 Screw 8 x 2 pan head phillips type B 1
11 272-2189 Rear paddle 1
12 272-2190 Front paddle 1
13 272-2191 Handle bar weldment 1
14 272-2192 Knob 1
16 172-2036 Compression spring 2
17 172-2038 Cam controller 1
18 572-9318 Sleeve 1
19 572-9317 Washer plastic 3
20 272-1353 Clamp 2
21 172-2047 U clamp 1
22 372-2096 Cable tie 1
23 172-4063 P clamp 2
N/S 272-9376 Paddle harness 1
