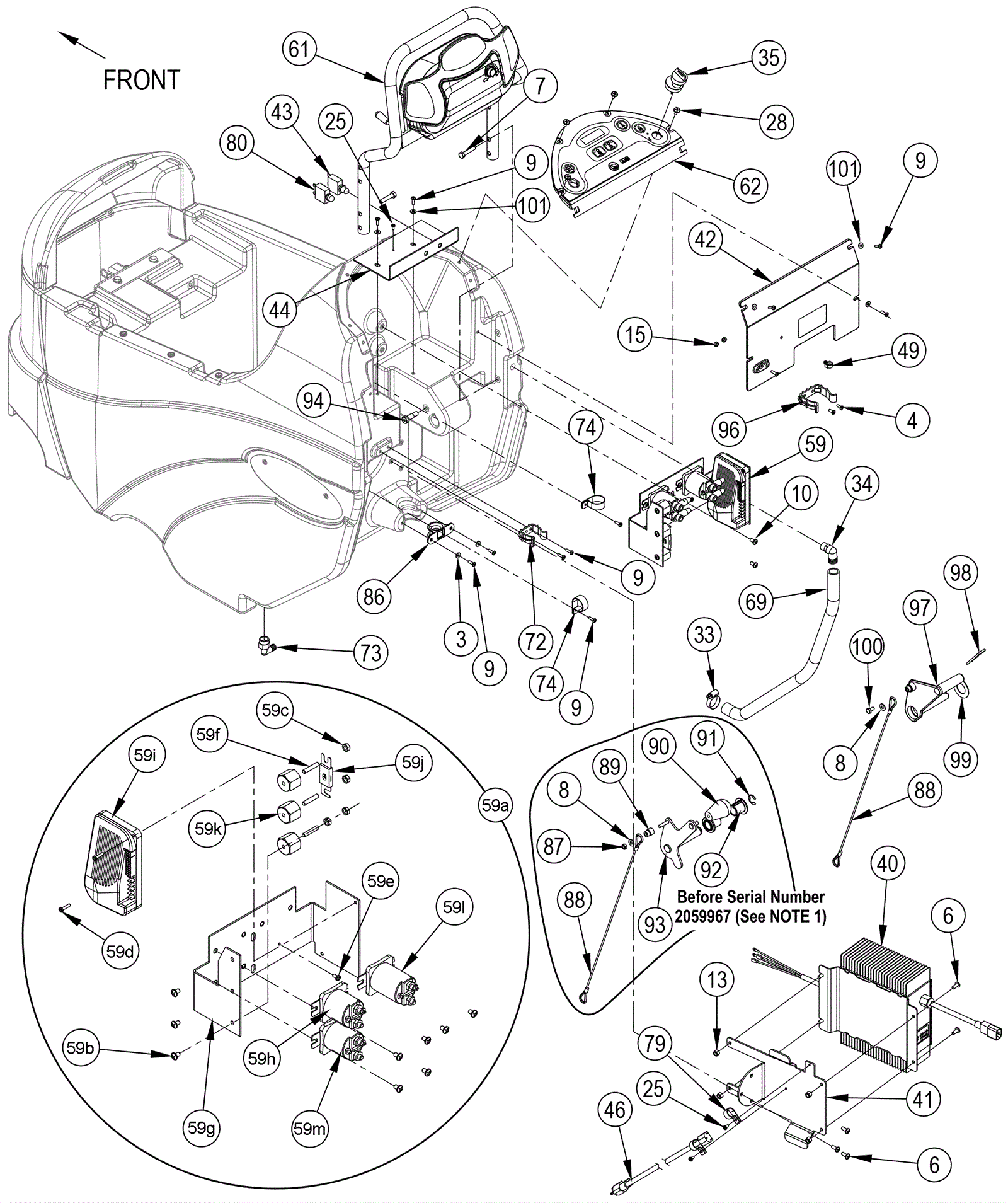

AQUAPLUS Solution System Assembly 2

#PartDescriptionPriceReqNotesAvailability
3 999-1862 Washer #10 flat SAE stainless steel $0.99 2 ships same day
4 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 2 ships same day
6 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 7 ships same day
7 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 4 ships same day
8 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 (qty 3 for AquaPLUS and AXP) ships same day
9 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 12 (quantity of 10 for AquaPLUS and AXP) ships same day
10 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 5 ships same day
13 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
15 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
25 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 3 ships same day
28 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 4 ships same day
33 997-2005 Hose clamp $2.15 1 ships same day
34 172-2100 90 degree barbed elbow 3/4 x 3/8 $10.90 1 usually ships 16-41 days
35a 272-2195 Key switch assembly $81.46 1 usually ships 16-41 days
35b 272-2196 Keys (pkg of 2) $38.04 1 ships same day
40 272-2358 24V onboard battery charger $1,117.17 1 usually ships 16-41 days
41 272-2226 Charger bracket $77.49 1 usually ships 16-41 days
42 272-9350 Electrical panel $46.62 1 (replaces old style 272-9350 after SN 2059966) usually ships 16-41 days
43 272-2209 30amp circuit breaker $12.18 1 ships same day
44 272-9351 Circuit breaker plate $23.05 1 usually ships 1-5 days
46 272-2225 Onboard charger cord $27.53 1 usually ships 16-41 days
49 272-2177 Conduit clip $10.90 1 usually ships 16-41 days
59a 272-9357 Electrical box assembly $704.91 1 (includes 59b-59m) (only used on AquaPLUS and AXP) (for Adphibian order 272-9358) usually ships 1-5 days
59b 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 9 (qty 7 for AquaPLUS AXP) ships same day
59c 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
59d 999-1130 Screw 8-32 x 3/4 pan head phillips thread rolling zinc $0.99 2 ships same day
59e 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 1 ships same day
59f 172-0346 Stud 1/4-20 $10.90 3 usually ships 16-41 days
59g 272-9359 Electrical panel $77.49 1 usually ships 1-5 days
59h 272-9360 24V 100amp contactor $57.12 1 usually ships 16-41 days
59i 272-9361 Speed controller $464.77 1 usually ships 16-41 days
59j 172-8836 150amp fuse $17.41 1 usually ships 16-41 days
59k 172-0103 Electrical mount $12.18 3 usually ships 1-5 days
59l 272-9362 24V 200amp contactor $92.60 1 usually ships 16-41 days
59m 272-9360 24V 100amp contactor $57.12 1 (Adphibian) usually ships 16-41 days
61 272-9364 Paddle assembly $935.30 1 usually ships 1-5 days
62a 272-9365 Control panel assembly $1,558.88 1 (AquaPLUS and AXP) usually ships 16-41 days
62b 272-5316 Control panel assembly $345.93 1 (AquaPLUS and AXP) (replacement for 62a) usually ships 16-41 days
62c 272-9366 Control panel assembly $1,491.27 1 (Adphibian) usually ships 1-5 days
62d 272-5310 Control panel assembly $332.08 1 (AquaPLUS and AXP) (replacement for 62c) usually ships 1-5 days
69 172-1920 Solution drain hose $15.00 1 ships same day
72 272-1159 Plastic clamp $9.60 1 ships same day
73 172-2103 Elbow barb $9.60 1 usually ships 16-41 days
74 272-2330 P clamp $10.90 2 usually ships 1-5 days
79 172-2122 P clamp $10.90 2 usually ships 16-41 days
80 272-9374 10amp circuit breaker $21.77 1 ships same day
86 272-2200 Cable guide $10.90 1 (Adphibian) ships same day
87 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 (Adphibian) (after SN 2059966 order 97-100 to replace) ships same day
88 272-2207 Cable assembly $17.68 1 (Adphibian) usually ships 16-41 days
89 272-2140 Bushing $10.90 1 (Adphibian) (after SN 2059966 order 97-100 to replace) usually ships 16-41 days
90 172-0021 Knob $21.77 1 (Adphibian) (after SN 2059966 order 97-100 to replace) usually ships 16-41 days
91 172-9513 Retaining ring $10.90 1 (Adphibian) (after SN 2059966 order 97-100 to replace) usually ships 1-5 days
92 272-2203 Flanged bushing (OBSOLETE) $9.56 2 (Adphibian) (after SN 2059966 order 97-100 to replace) usually ships 16-41 days
93 272-2206 Squeegee lift weldment $81.99 1 (Adphibian) (after SN 2059966 order 97-100 to replace) usually ships 16-41 days
94 272-9416 Screw 5/16-18 x .30 x .62 socket head $10.90 1 (Adphibian) (after SN 2059966 order 97-100 to replace) usually ships 1-5 days
96 172-3169 Plastic clamp $23.05 1 usually ships 16-41 days
97 272-8453 Squeegee lift lever $21.77 1 (Adphibian) usually ships 16-41 days
98 172-3483 Cotter pin $10.90 1 (Adphibian) usually ships 16-41 days
99 172-4968 Washer 1.031 x 1.859 x .048 flat $4.84 1 (Adphibian) usually ships 16-41 days
100 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 (Adphibian) ships same day
101 999-0998 Washer #10 flat stainless steel $0.99 6 ships same day
