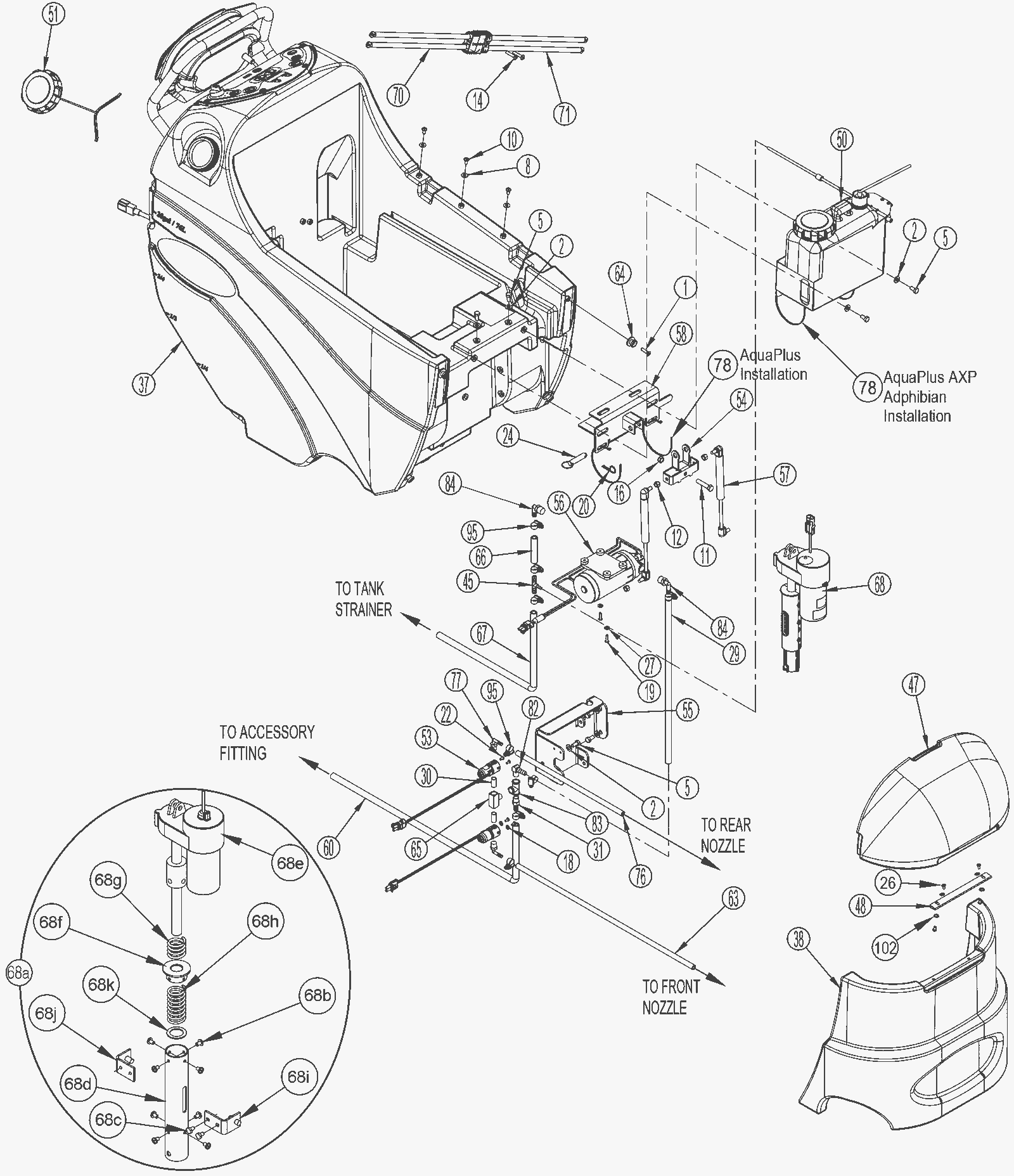

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1345
|
Screw 1/4-20 x 1 flat head phillips stainless steel |
4 |
|
|
2 |
172-2067
|
Washer 11/32 x 1/8 flat |
7 |
(qty 5 on AquaPLUS) |
|
5 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
7 |
|
|
8 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
(quantity of 3 on AquaPLUS and AXP) |
|
10 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
5 |
|
|
11 |
999-0542
|
Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated |
1 |
|
|
12 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
14 |
999-0625
|
Screw 1/4-20 x 1 1/4 pan head phillips stainless steel |
2 |
|
|
16 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
|
18 |
999-0266
|
Washer #8 SAE flat stainless steel |
2 |
|
|
19 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
|
20 |
172-2001
|
Hair cotter pin |
1 |
|
|
22 |
999-1131
|
Screw 8-32 x 3/8 pan head phillips thread rolling SS |
4 |
|
|
24 |
272-2115
|
Clevis pin |
1 |
|
|
26 |
999-0571
|
Screw 10-24 x 3/8 pan head phillips stainless steel |
4 |
|
|
27 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
29 |
181-0378
|
Hose 20 inch |
1 |
|
|
30 |
172-4126
|
Nipple |
2 |
|
|
31 |
172-0298
|
Barb fitting 1/4 x 3/8 |
1 |
|
|
37a |
272-2320
|
Solution tank |
1 |
|
|
37b |
272-9349
|
Solution tank kit |
1 |
(order if replacing solution tank on machine with old style squeegee lift level, 272-2206) |
|
38 |
272-2321
|
Nose cone |
1 |
|
|
45 |
272-2316
|
Tee barb |
1 |
(used only on Adphibian and AXP) |
|
47 |
272-2324
|
Chemical bottle cover |
1 |
|
|
48 |
272-2171
|
Hinge |
1 |
|
|
50 |
272-2344
|
Chemical tank assembly |
1 |
(used only on Adphibian and AXP) |
|
51 |
272-9352
|
Raw cap with tether |
1 |
|
|
53 |
272-5312
|
24V solenoid valve |
2 |
|
|
54 |
272-9353
|
Actuator yoke |
1 |
|
|
55 |
272-9354
|
Pivot linkage bracket |
1 |
|
|
56a |
272-8540
|
24V pump |
1 |
|
|
56b |
272-3726
|
Pump head assembly |
1 |
|
|
56c |
472-4392
|
CHECK VALVE ASSY |
1 |
|
|
57 |
272-9355
|
Gas spring |
2 |
|
|
58 |
272-9356
|
Actuator weldment bracket |
1 |
|
|
60 |
272-9363
|
Hose |
1 |
|
|
63 |
272-9367
|
Hose 1/4 x 25 inches |
1 |
|
|
64 |
172-0444
|
Drive lug |
4 |
|
|
65 |
172-0266
|
Tee branch |
1 |
|
|
66 |
272-9368
|
Hose |
1 |
(used only on Adphibian and AXP) |
|
67a |
172-2733
|
Solution hose |
1 |
(used only on Adphibian and AXP) |
|
67b |
272-9369
|
Hose |
1 |
(AquaPLUS) |
|
68a |
272-9370
|
Actuator assembly |
1 |
(includes 68b-68k) |
|
68b |
272-1562
|
Screw 1/4-20 x 3/5 pan head thread forming |
8 |
|
|
68c |
999-0360
|
Screw 1/4-20 x 3/8 hex head thread rolling unslotted |
2 |
|
|
68d |
272-9371
|
Tube |
1 |
|
|
68e |
172-8921
|
Actuator |
1 |
|
|
68f |
272-8539
|
Spring housing guide |
1 |
|
|
68g |
172-8941
|
Compression spring |
1 |
|
|
68h |
172-8953
|
Compression spring |
1 |
|
|
68i |
172-8954
|
Nut retainer |
1 |
|
|
68j |
172-8955
|
Nut retainer |
1 |
|
|
68k |
272-9372
|
Washer 5/64 flat |
1 |
|
|
70 |
172-2182
|
Connector assembly |
1 |
(connected to batteries) |
|
71 |
172-2183
|
Connector assembly |
1 |
(connected to machine) |
|
76 |
272-9373
|
Hose |
1 |
|
|
77 |
172-1337
|
90 degree barb 1/4 |
2 |
|
|
78 |
272-7413
|
Cable tie |
2 |
|
|
82 |
172-9889
|
1/4 inch elbow barb |
1 |
|
|
83 |
172-4125
|
Tee |
1 |
|
|
84 |
170-1457
|
Elbow barb 3/8 x 3/8 inch |
2 |
|
|
95 |
172-8494
|
#6 hose clamp SAE |
8 |
(qty 6 on AquaPLUS) |
|
102 |
372-2617
|
Washer 3/16 external star |
4 |
|
|
N/S |
172-8922
|
Plastic drive nut |
1 |
(optional) |
|
