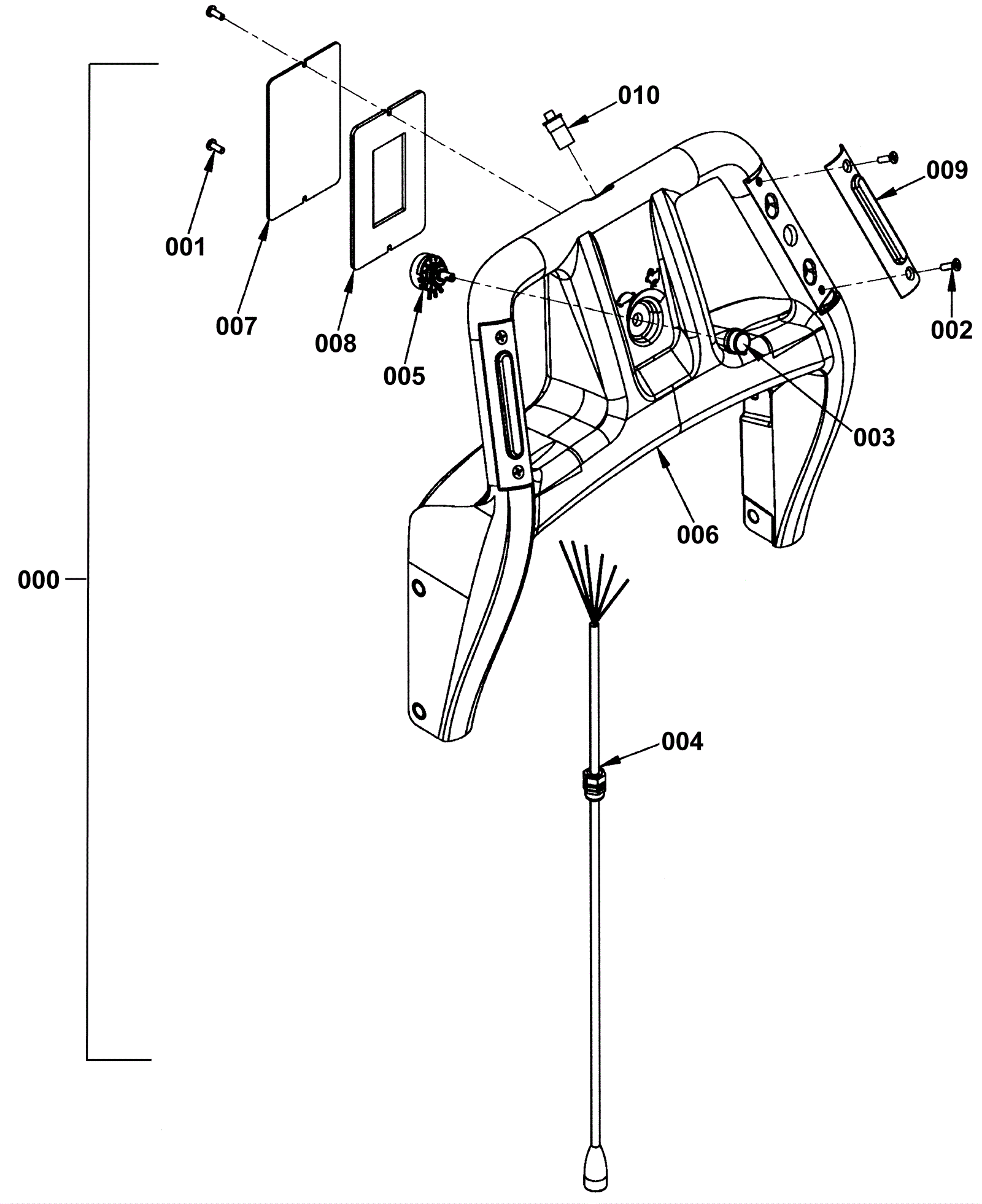

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
272-8181
|
Handle assembly |
1 |
(includes 001-010) |
|
001 |
999-0571
|
Screw 10-24 x 3/8 pan head phillips stainless steel |
2 |
|
|
002 |
999-0421
|
Screw 10-24 x 1/2 flat head phillips zinc plated |
4 |
|
|
003 |
272-2192
|
Knob |
1 |
|
|
004 |
272-8187
|
Handle harness |
1 |
|
|
005 |
272-8189
|
Potentiometer |
1 |
|
|
006 |
272-8196
|
Rotomold handle |
1 |
|
|
007 |
272-8190
|
Access plate |
1 |
|
|
008 |
272-8199
|
Access plate gasket |
1 |
|
|
009 |
272-8197
|
Handle switch assembly |
2 |
|
|
010 |
272-8191
|
SPST momentary switch |
1 |
|
|
