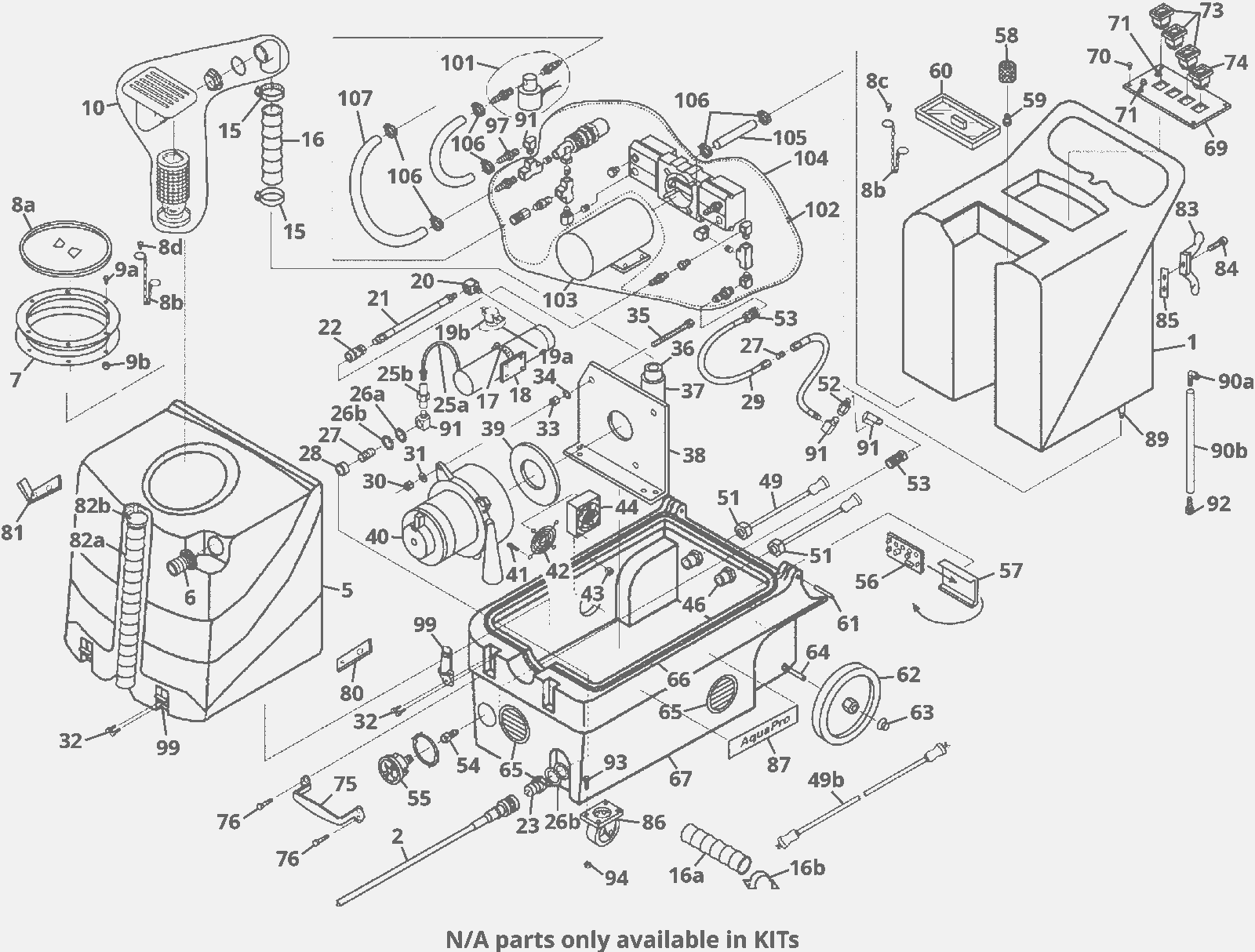

Entire Assembly

#PartDescription ReqNotesAvailability
1 172-3531 Solution tank gray 1
2 172-2906 Priming hose with quick disconnect 1
5 172-3513 Recovery tank gray (OBSOLETE) 1
6 172-2481 Hose barb 1
7 N/A Not available 1 (gasket) (only available in KIT4
8a 172-2475 6 inch lid with clear center and ring 1
8b 172-2474 8 inch chain 2
8c 999-1276 Screw 10-32 x 3/8 hex head stainless steel 1
8d 999-9148 Screw 10-32 x 5/8 flat head phillips stainless steel 1
9a 999-1396 Screw 8-32 x 7/8 flat head phillips stainless steel 6
9b 999-0357 Nut 8-32 nylon insert lock stainless steel 6
10 209-0071 Complete ball float assembly (OBSOLETE) 1
15 N/A Not available 2 (hose clamp) (only available in KIT5)
16a 172-3516 Vacuum hose 2 x 41 (OBSOLETE) 1
16b 272-8040 Exhaust hose bracket (OBSOLETE) 1
17 N/A Not available 1 (hose clamp) (only available in KIT5)
18 209-0621 Heat exchanger mount 1
19a N/A Not available 1 (complete heat exchanger) (only available in KIT9)
19b N/A Not available 1 (heat control switch) (only available in KIT9, KIT10)
20 N/A Not available 1 (brass elbow) (only available in KIT20)
21 N/A Not available 1 (high pressure hose) (only available in KIT20)
22 N/A Not available 1 (quick disconnect) (only available in KIT20)
23 N/A Not available 1 (quick disconnect) (only available in KIT7, KIT9)
25a N/A Not available 1 (braided hose) (only available in KIT9)
25b N/A Not available 1 (brass coupling) (only available in KIT9)
26a N/A Not available 3 (brass washer) (only available in KIT9)
26b N/A Not available 3 (fiber washer) (only available in KIT7, KIT9)
27 N/A Not available 2 (nipple) (only available in KIT9, KIT18)
28 N/A Not available 1 (fiber bushing) (only available in KIT9)
29 272-8046 Complete hose (OBSOLETE) 1
30 999-1019 Nut 5/16-18 hex jam stainless steel 3
31 999-0024 Washer 5/16 flat stainless steel 3
32 999-0437 Screw 8-32 x 1/2 flat head phillips zinc plated 8
33 999-0069 Nut 5/16-18 hex 3
34 999-0028 Washer 5/16 split lock plain finish 3
35 N/A Not available 3 (bolt 5/16 x 4 fully threaded) (only available in KIT4)
36 N/A Not available 1 (3 inch pvc pipe) (only available in KIT21)
37 N/A Not available 1 (pvc elbow) (only available in KIT21)
38 209-0400 Vacuum motor mount manifold 1
40a 272-8045 Vac motor kit - 3 stage 1 (120V vacuum motor) (only available in KIT6)
40b N/A Not available 1 (vacuum motor gasket) (only available in KIT6)
41 272-8038 Hardware kit 4 (screw 6-32 x 2) (only available in KIT 4)
42 N/A Not available 1 (fan guard) (only available in KIT1)
43 999-0337 Nut 6-32 nylon insert lock stainless steel 4
44 N/A Not available 1 (120V fan) (only availble in KIT1)
46 N/A Not available 2 (pvc reducer) (only available in KIT13)
49a N/A Not available 2 (12/3 24 inch pigtail cord) (only available in KIT13)
49b 209-0097 12/3 extension cord 25 foot 2
51 N/A Not available 2 (cord retainer) (only available in KIT13)
52 N/A Not available 1 (pulsation snubber) (only available in KIT18)
53 N/A Not available 2 (female quick disconnect) (only available in KIT18)
54 N/A Not available 1 (male quick disconnect) (only available in KIT19)
55 N/A Not available 1 (pressure gauge) (only available in KIT19)
56 209-0115 Dual cord sensor board circuit 1
57 209-0100 PCB mount 1
58 209-0150 Filter 1
59 209-0603 Nipple 1/2 NPT 1
60 N/A Not available 1 (solution tank lid) (only available in KIT3)
61 209-0648 Hinge pin 2
62 N/A Not available 2 (10 inch wheel) (only availble in KIT2)
63 N/A Not available 2 (axle cap) (only available in KIT2)
64 172-3526 Plated axle rod 18 1/4inch 1
65 372-3715 Shutter 2
66 270-8078 Base gasket poron 7/8 x 7 inch 1
67a 372-0688 Base compartment gray (OBSOLETE) 1 (before SN 1889310)
67b 372-0689 Base compartment gray 1 (after SN 1889390)
69 272-8049 Switch plate (OBSOLETE) 1
70 999-1993 Screw #4-40 x 3/8 flat head phillips 5
71 172-3551 Light (green) 2
73 172-3539 Switch with cover (OBSOLETE) 3
74 172-3539 Switch with cover (OBSOLETE) 1
75 209-0461 Chrome manifold 1
76 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel 4
80 N/A Not available 1 (mating bracket) (only available in KIT8)
81 N/A Not available 1 (mating bracket) (only available in KIT8)
82a N/A Not available 1 (drain hose) (only available in KIT11)
82b N/A Not available 1 (drain hose plug) (only available in KIT11)
83 209-0093 Cord wrap 2
84 999-0830 Screw 1/4-20 x 1 hex head plain finish 4
85 172-3518 Bracket kit (OBSOLETE) 2 (caddy bag bracket) (only availble in KIT8)
86 209-0480 Caster wheel (gray) 2
87 N/A Not available 2
89 272-8050 Hose barb kit 1 (straight nylon hose barb) (only available in KIT14)
90a N/A Not available 1 (elbow hose barb) (only available in KIT12)
90b N/A Not available 1 (site hose) (only available in KIT12)
91 N/A Not available 4 (brass elbow) (only available in KIT9, KIT14, KIT18)
92 172-2901 Solution hose kit 1
93 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 8
94 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
97 N/A Not available 1 (brass hose barb) (only available in KIT14)
99 172-2487 Black rubber latch with strike 2
101 272-8051 120V complete solenoid 1
102 272-8052 Complete pump - NO MOTOR 1
103 172-9331 Pump motor kit 1
104 209-0328 Pump and motor assembly with solenoid 1
105 272-8054 Hose 1/2 x 16 inch 1
106 N/A Not available 6 (hose clamp) (only available in KIT5)
107 172-3534 Hose 3/8 x 76ft (OBSOLETE) 1
N/S 172-2492 Warning decal 1
N/S 172-3541 Single bend wand assembly 1
N/S 172-3542 Double bend wand assembly (OBSOLETE) 1
N/S 172-3543 Extractor hand tool 1
N/S 272-6489 25 foot vacuum/solution hose 1
N/S 172-3545 Vac hose-Pressure line 15ft 1
KIT1 172-2463 Fan kit 1 (includes 42, 44)
KIT2 172-3527 Wheel kit 1 (includes qty 1 of 62, 63)
KIT3 172-3514 Solution lid kit (OBSOLETE) 1 (includes 8b, 8c, 60)
KIT4 272-8038 Hardware kit 1 (includes 7, 8d-9b, 30-35, 41, 43, 70, 76, 84, 93-94)
KIT5 272-8039 Hose clamp kit 1 (includes 15, 17, 106)
KIT6 272-8045 Vac motor kit - 3 stage 1 (includes 39-40)
KIT7 181-1385 Quick disconnect kit - hot 1 (includes 23, 26b)
KIT8 172-3518 Bracket kit (OBSOLETE) 1 (includes 80-81, 85)
KIT9 272-8041 Heat exchanger complete - 300PSI 1 (includes 19a-19b, 23, 25-28, 91)
KIT10 209-0333 Bi-metallic heat repair kit 1 (includes 19b)
KIT11 172-2490 Dump hose kit 1 (includes 82a-82b)
KIT12 172-2901 Solution hose kit 1 (includes 90a-90b)
KIT13 172-3524 Cord outlet kit 1 (includes 46, 49, 51)
KIT14 272-8050 Hose barb kit 1 (includes 89, 91, 97)
KIT15 209-0616 Pump 1
KIT16 209-0616 Pump 1
KIT17 372-0690 Bypass rebuild kit (OBSOLETE) 1
KIT18 272-8046 Complete hose (OBSOLETE) 1 (includes 27, 52-53, 91)
KIT19 272-8048 Pressure gauge kit 1 (includes 54-55)
KIT20 272-8042 High pressure hose kit (OBSOLETE) 1 (includes 20-22)
KIT21 272-8043 PVC pipe kit 1 (includes 36-37)
