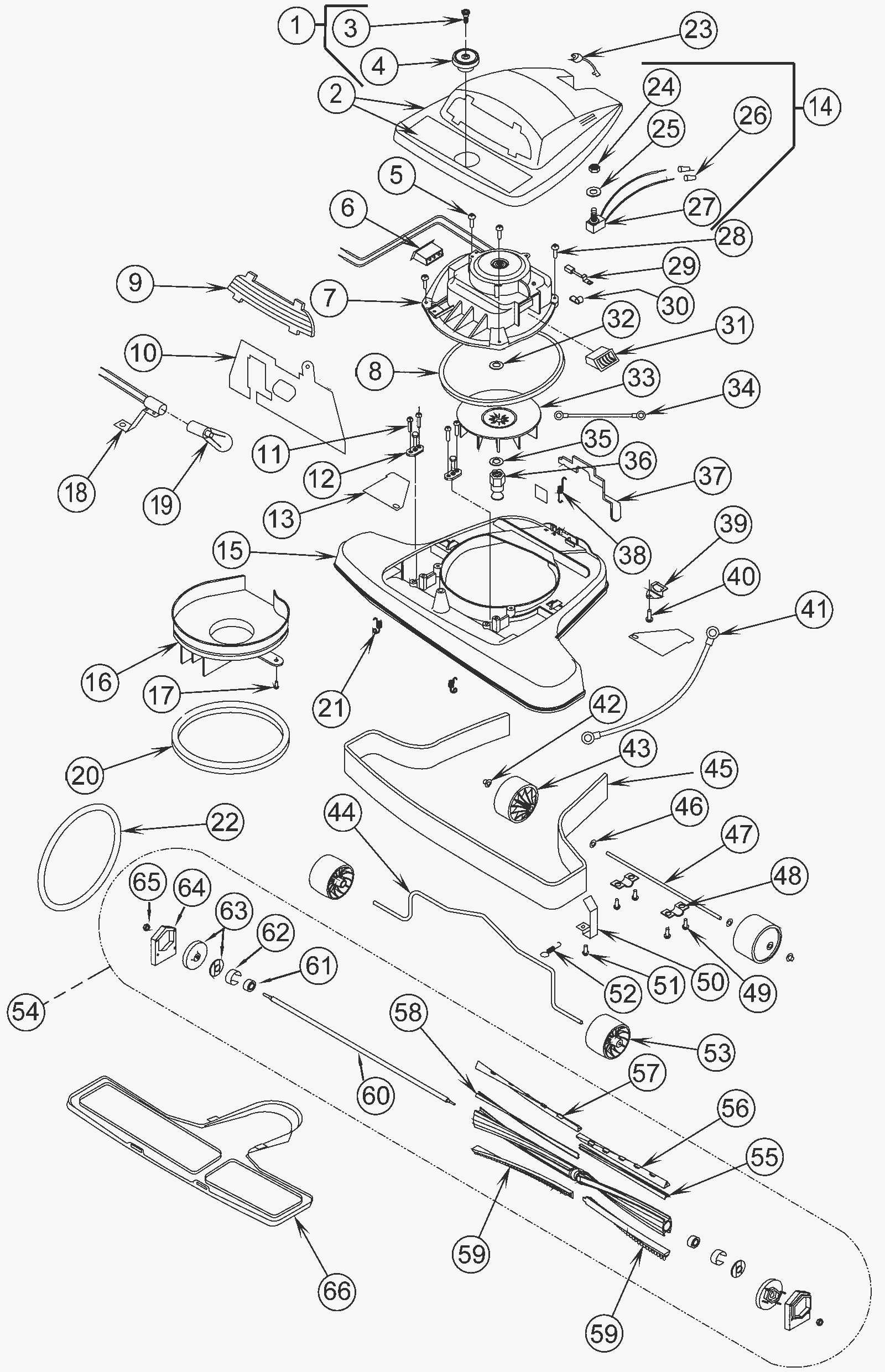

Base Assembly

#PartDescription ReqNotesAvailability
1 272-6254 Brush height knob assembly 1 (includes 3 and 4)
2 272-6279 Hood assembly 1
3 182-0003 Shoulder screw 1
4 182-0117 Knob assembly (OBSOLETE) 1
5 182-0008 Motor mounting screw 2
6 182-0115 Right side cam 1
7 182-0009 120V vacuum motor assembly 1
8 182-0010 Motor seal gasket 1
9 N/A Not available 1 (Lens kit)
10 N/A Not available 1 (Lens kit)
11 182-0008 Motor mounting screw 4
12 182-0013 Screw and clamp assembly 2
13 182-0014 Wheel cover 1
14 272-6255 Switch assembly 1 (includes 24-27)
15 272-6282 Base assembly (gray) 1
16 182-0113 Fan scroll cover 1
17 182-0012 Screw 10-14 x .88 phillips pan plastite 1
18 182-0153 Headlight socket assembly 1
19 992-9513 15watt double bulb 1
20 182-0010 Motor seal gasket 1
21 182-0124 Hood spring 2
22 991-0026 Brush roll belt rubber (black) 1
23 182-0017 Strain relief bushing 1
24 272-5225 Switch nut 1
25 182-0123 Washer lock 1
26 998-0062 Wire nut (blue) 1
27 182-0118 Push switch 1
28 182-0008 Motor mounting screw 2
29 991-5101 Carbon brush (sold individually) 2
30 182-0125 P clamp 1
31 182-0116 Left side cam 1
32 182-0070 Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) 1
33a 182-0071 Fan 1
33b 272-9477 Pulley and fan kit (green) 1 (lifetime warranty)
34 182-0129 Wire and terminal assembly 1
35 182-0070 Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) 1
36 182-0072 Motor pulley 1
37 182-0023 Foot pedal 1
38 182-0011 Foot pedal spring 1
39 182-0119 Bag clip retainer bracket 1
40 182-0034 Screw 10-14 x 1/2 pan head plastite 1
41 182-0129 Wire and terminal assembly 1
42 182-0032 Push nut 1
43 182-0045 Rear wheel 1
44 182-0035 Front axle 1
45 272-5176 16 inch furniture guard (OBSOLETE) 1
46 182-0044 Washer 2
47 182-0043 Rear axle 1
48 182-0033 Axle clamp 2
49 182-0034 Screw 10-14 x 1/2 pan head plastite 4
50 182-0162 Furniture guard clip 1
51 182-0163 Clip (pkg of 10) 1
52 182-0046 Axle spring 1
53 182-0047 Front wheel 2
54 182-0099 16 inch disturbulator assembly 1 (includes 55-65)
55 N/A Not available 1 (Beater bar support)
56 182-0165 Short beater bar 1
57 182-0164 Long beater bar 1
58 N/A Not available 1 (Beater bar support)
59 182-0105 16 inch bristle strip set 1
60 182-0160 Shaft 1
61 182-0159 Retaining ring 2
62 182-0158 Bearing 2
63 182-0157 Disturbulator cap 2
64 182-0052 Cap 2
65 999-0086 Nut 10-32 nylon insert lock zinc plated 2
66a 272-5172 16 inch bottom plate assembly 1
66b 182-0040 Foam tape 1
