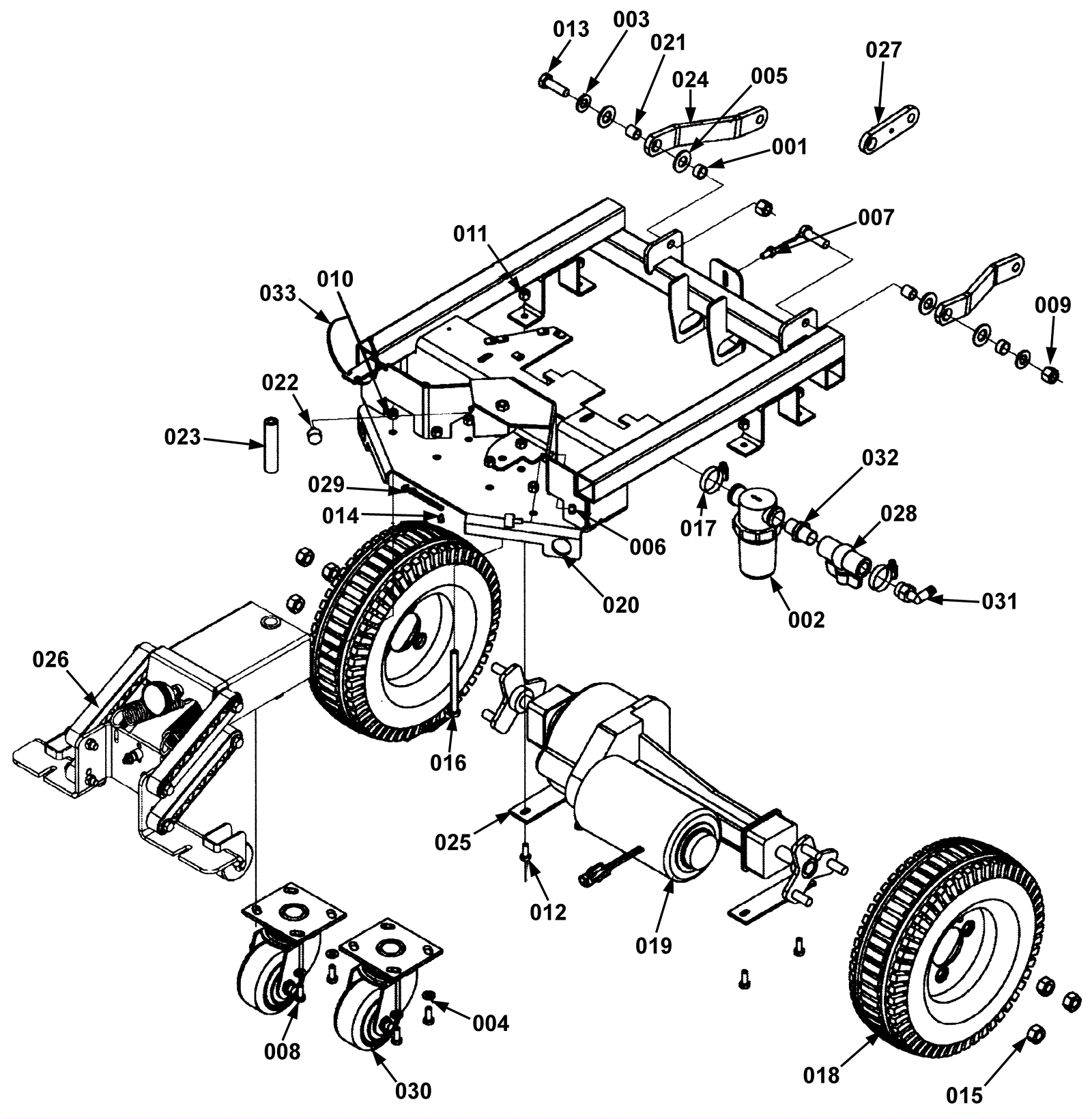

Chassis System

#PartDescription ReqNotesAvailability
001 172-0069 Pivot weldment kit (OBSOLETE) 2 (sleeve bearing - must purchase pivot weldment kit 172-0069)
002 172-9025 Solution filter 1
003 999-0114 Washer 1/2 SAE flat 2
004 999-0024 Washer 5/16 flat stainless steel 10
005 999-0349 Washer 5/8 SAE flat 4
006 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
007 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 3
008 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 8
009 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
011 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
012 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 4
013 999-1326 Screw M12-1.75 x 40mm hex head 2
014 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc 1
015 272-1653 Nut 1/2-20 lug 6
016 999-1327 Screw 3/8-16 x 4 1/4 hex head 1
017 272-7412 Hose clamp 2
018a 272-2268 Foam filled wheel (black) (pkg of 2 wheels and 2 brackets) 1 (before February 2011)
018b 272-7299 Drive wheel 2 (after February 2011)
018c 272-2269 Polyurethane-traction wheel 2 (optional)
019a 272-2270 36V transaxle 1 (OEM)
019b 991-3052 36V transaxle 1 (NON-OEM)
019c 272-2271 Motor 1
019d 170-3568 Carbon brush (pkg of 4) 4
019e 272-2273 Neoprene mounting sleeve 2
019f 170-7199 36V transaxle hub kit 1
019g 272-7414 Transaxle service kit (OBSOLETE) 1
019h 272-7415 Coupling kit 1
020 272-2274 Chassis weldment 1
021 272-2275 Bushing 2
022 272-2276 Cylindrical mount 2
023 272-2277 Bushing 1
024 272-8162 Linkage arm 2
025 272-2279 Transaxle mount plate 2
026 272-2294 Squeegee linkage assembly 1
027 172-0069 Pivot weldment kit (OBSOLETE) 1 (linkage arm - must purchase pivot weldment kit 172-0069)
028 272-3640 Ball valve 1
029 272-2282 Ground chain 1
030a 172-0001 Swivel caster wheel 2 (OEM)
030b 991-2006 Caster wheel assembly (red) 2 (NON-OEM)
031 172-2103 Elbow barb 1
032 172-2099 Nipple 1
033 272-7413 Cable tie 1
