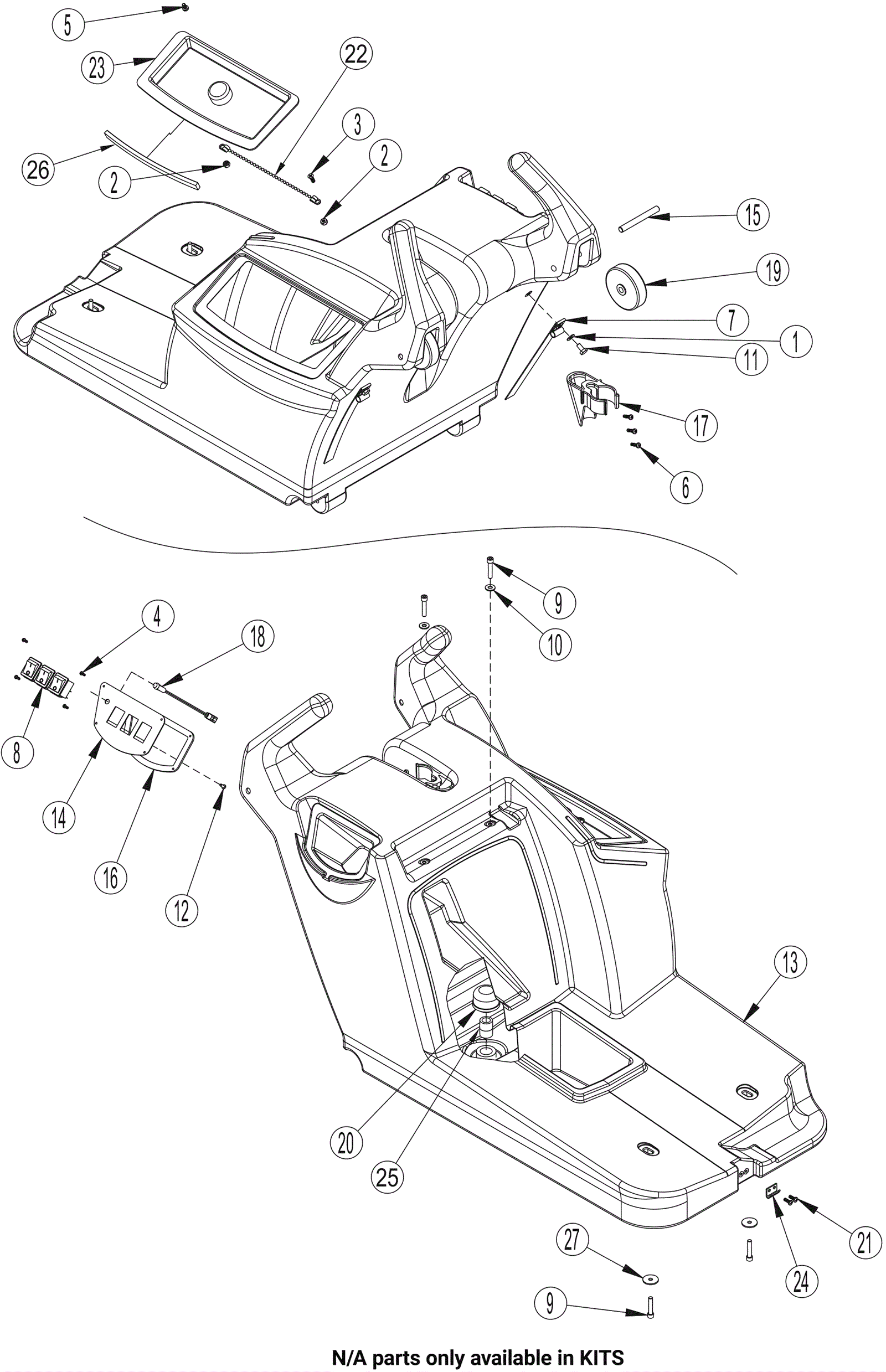

Solution Assembly

#PartDescription ReqNotesAvailability
1 999-0006 Washer 3/16 flat zinc plated 2 (included in KIT1)
2 999-1353 Nut 10-32 hex nylon lock insert stainless steel 2 (included in KIT1)
3 N/A Not available 1 (screw) (only available in KIT1)
4 999-1387 Screw 4-40 x 3/8 pan head phillips stainless steel 4 (included in KIT1)
5 999-1270 Screw 10-32 x 3/8 button head socket stainless steel 1 (included in KIT1)
6 N/A Not available 3 (screw 8 x 5/8 AB pan head combo tapping) (only available in KIT1)
7 209-0363 Cord strap 2
9 N/A Not available 4 (screw 1/4-20 x 1 1/4 allen head) (only available in KIT1)
10 999-0123 Washer 1/4 SAE flat zinc plated 2 (included in KIT1)
11 N/A Not available 2 (screw hex head loc) (only available in KIT1)
12 N/A Not available 1 (screw 6-32 x 5/16 pan head) (only available in KIT1)
13 472-3923 TANK-SOLUTION-FINISHED-GRAY 1
14a 209-6102 Switchplate 1 (only for 100H model 56105293)
14b 472-3920 SWITCHPLATE 1 (only for 100C model 56105292)
14c 209-6103 Switchplate 1 (only for 100SC model 56105294)
15 209-6104 Wheel axle 2
16 209-6105 Switchplate gasket 1
17 372-1354 Wand clip 1
18 209-0671 Light (green) 1 (only for 100H model 56105293)
19 172-0083 3 inch guide wheel 2
20 209-0150 Filter 1
21 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 2 (included in KIT1)
22 172-2474 8 inch chain 1
23 209-6106 Solution tank lid 1
24 209-0140 Latch strike 1
25 209-0603 Nipple 1/2 NPT 1
26 172-9334 Gasket 1
27 N/A Not available 2 (washer) (only available in KIT1)
N/S 172-9343 Jumper wire (white) 1 (only for 100SC and 100 C models 56105294 and 56105292)
N/S 172-9422 Jumper wire (black) 1 (only for 100SC and 100 C models 56105294 and 56105292)
KIT1 172-9423 Solution tank hardware kit 1 (includes 1-6, 9-12, 21, 27)
