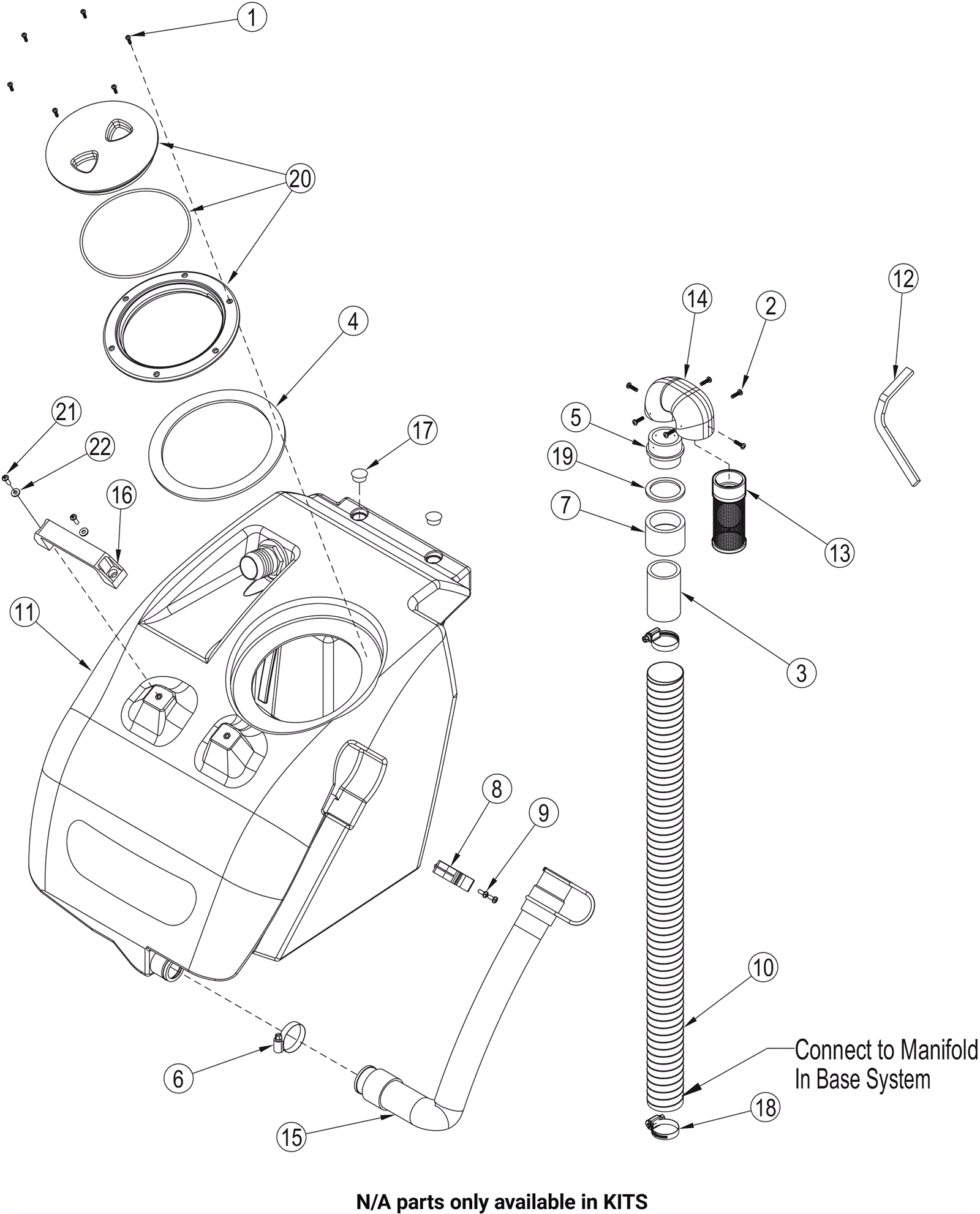

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0680
|
Screw 6 x 1/2 pan head phillips T-A sheet metal |
6 |
(included in KIT1) |
|
2 |
N/A
|
Not available |
6 |
(screw 8 x 3/8 hi-low) (only available in KIT2) |
|
3 |
209-0668
|
PVC pipe |
3 in |
|
|
4 |
N/A
|
Not available |
1 |
(lid gasket) (only available in KIT1) |
|
5 |
N/A
|
Not available |
1 |
(adapter) (only available in KIT2) |
|
6 |
270-8636
|
Hose clamp 3/4 x 1 3/4 SS |
1 |
|
|
7 |
270-8637
|
1 1/2 inch female adapter |
1 |
|
|
8 |
272-1159
|
Plastic clamp |
1 |
|
|
9 |
999-0267
|
Screw 10-24 x 1/2 pan head phillips zinc |
2 |
|
|
10 |
172-9333
|
Vacuum hose |
1 |
|
|
11 |
472-3925
|
TANK-RECOVERY-FINISHED-GRAY |
1 |
|
|
12 |
172-9334
|
Gasket |
1 |
|
|
13 |
N/A
|
Not available |
1 |
(ball float filter) (only available in KIT2) |
|
14 |
N/A
|
Not available |
1 |
(ball float manifold) (only available in KIT2) |
|
15a |
209-0669
|
Drain hose |
1 |
|
|
15b |
172-9338
|
Drain hose cap |
1 |
(for 56113125) |
|
16 |
209-0656
|
Handle grip kit |
1 |
(grab handle) (only available in KIT3) |
|
17 |
172-1803
|
Plug |
2 |
|
|
18 |
209-0657
|
Hose clamp |
2 |
|
|
19 |
N/A
|
Not available |
1 |
(washer 1 3/4 x 2-1 flat) (only available in KIT2) |
|
20a |
N/A
|
Not available |
1 |
(clear lid with ring) (only available in KIT1) |
|
20b |
472-7879
|
O-ring |
1 |
|
|
21 |
N/A
|
Not available |
1 |
(screw 10-24 x .62 pan head) ((only available in KIT3) |
|
22 |
999-1862
|
Washer #10 flat SAE stainless steel |
1 |
(included in KIT3) |
|
KIT1 |
172-9339
|
Tank lid kit |
1 |
(includes 1, 4, 20) |
|
KIT2 |
172-9341
|
Ball float kit |
1 |
(includes 2, 5, 13-14, 19) |
|
KIT3 |
209-0656
|
Handle grip kit |
1 |
(includes 16, 21-22) |
|
