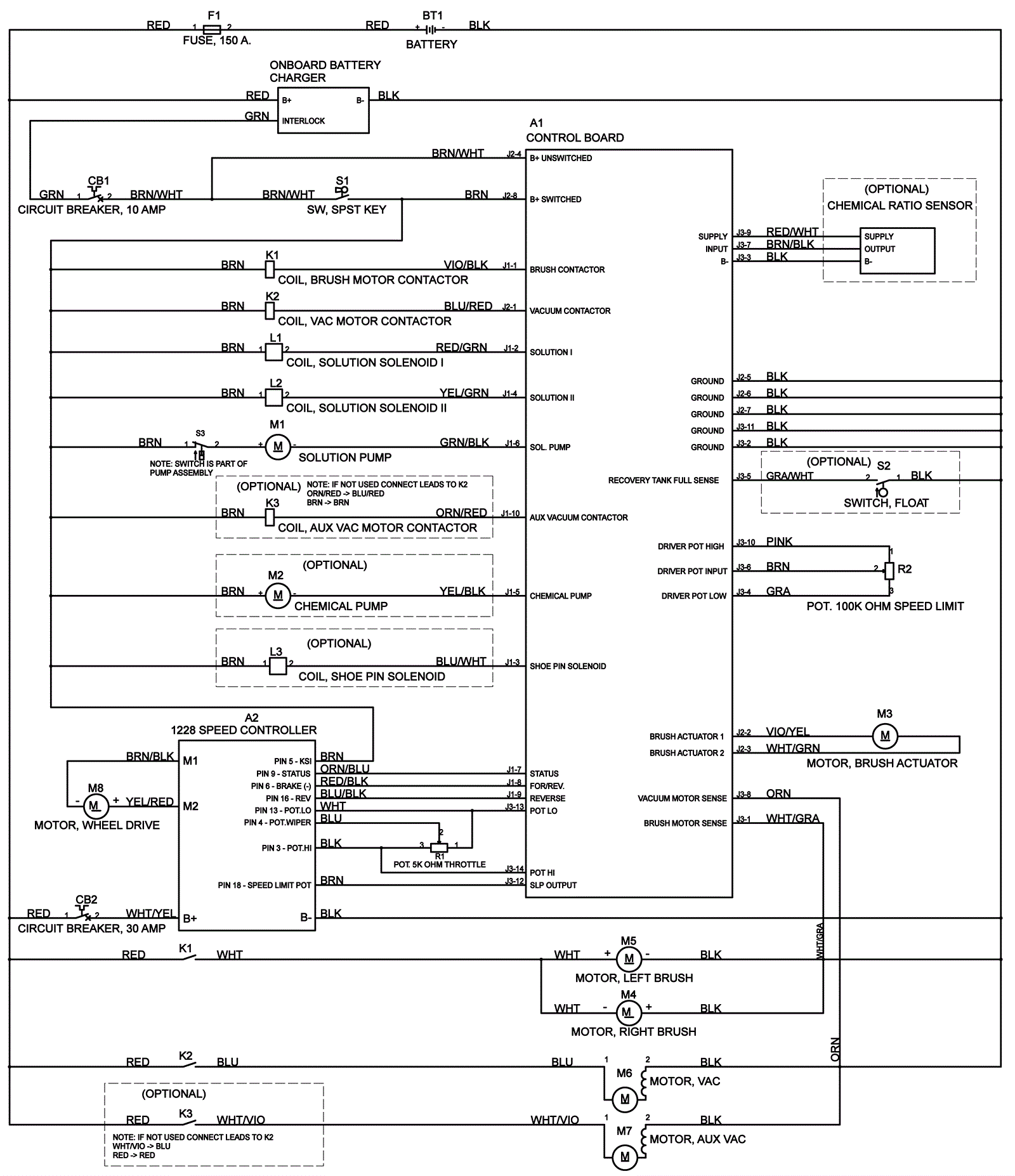

| # | Part | Description |
Req | Notes | Availability |
|---|
A1 |
272-9365
|
Control panel assembly |
1 |
|
|
A2 |
272-9361
|
Speed controller |
1 |
|
|
BT1 |
162-0003
|
6V 225Ah wet battery (SNSR) |
4 |
|
|
CB1 |
272-9374
|
10amp circuit breaker |
1 |
|
|
CB2 |
272-2209
|
30amp circuit breaker |
1 |
|
|
F1a |
172-8836
|
150amp fuse |
1 |
|
|
F1b |
991-3061
|
150amp fuse |
1 |
|
|
K1 |
272-9362
|
24V 200amp contactor |
1 |
|
|
K2 |
272-9360
|
24V 100amp contactor |
1 |
|
|
L1 |
272-5312
|
24V solenoid valve |
1 |
|
|
L2 |
272-5312
|
24V solenoid valve |
1 |
|
|
M1 |
272-8540
|
24V pump |
1 |
|
|
M2 |
272-2175
|
Chemical pump |
1 |
|
|
M3 |
272-9370
|
Actuator assembly |
1 |
|
|
M4a |
272-2148
|
24V brush motor |
1 |
(includes M4b and M4c) |
|
M4b |
172-8951
|
Carbon brush and spring kit |
1 |
|
|
M4c |
472-7212
|
MOTOR BRUSH/SPRING KIT |
1 |
|
|
M5a |
272-2148
|
24V brush motor |
1 |
(includes M5b and M5c) |
|
M5b |
172-8951
|
Carbon brush and spring kit |
1 |
|
|
M5c |
472-7212
|
MOTOR BRUSH/SPRING KIT |
1 |
|
|
M6a |
272-5311
|
24V 3 stage vacuum motor |
1 |
(includes M6b) |
|
M6b |
991-1221
|
Carbon brush without plastic cover (pkg of 2) |
1 |
|
|
M7a |
272-5311
|
24V 3 stage vacuum motor |
1 |
(includes M7b) |
|
M7b |
991-1221
|
Carbon brush without plastic cover (pkg of 2) |
1 |
|
|
M8a |
272-2335
|
24V transaxle |
1 |
(includes M8c-M8e) |
|
M8b |
991-3082
|
24V transaxle |
1 |
|
|
M8c |
272-2336
|
Motor (OBSOLETE) |
1 |
(Motor) |
|
M8d |
272-2337
|
Carbon brush assembly |
4 |
|
|
M8e |
272-2338
|
Neoprene mounting sleeve |
2 |
|
|
R1 |
172-2039
|
5K potentiometer |
1 |
|
|
R2 |
991-9022
|
100K Potentiometer (speed control) |
1 |
|
|
