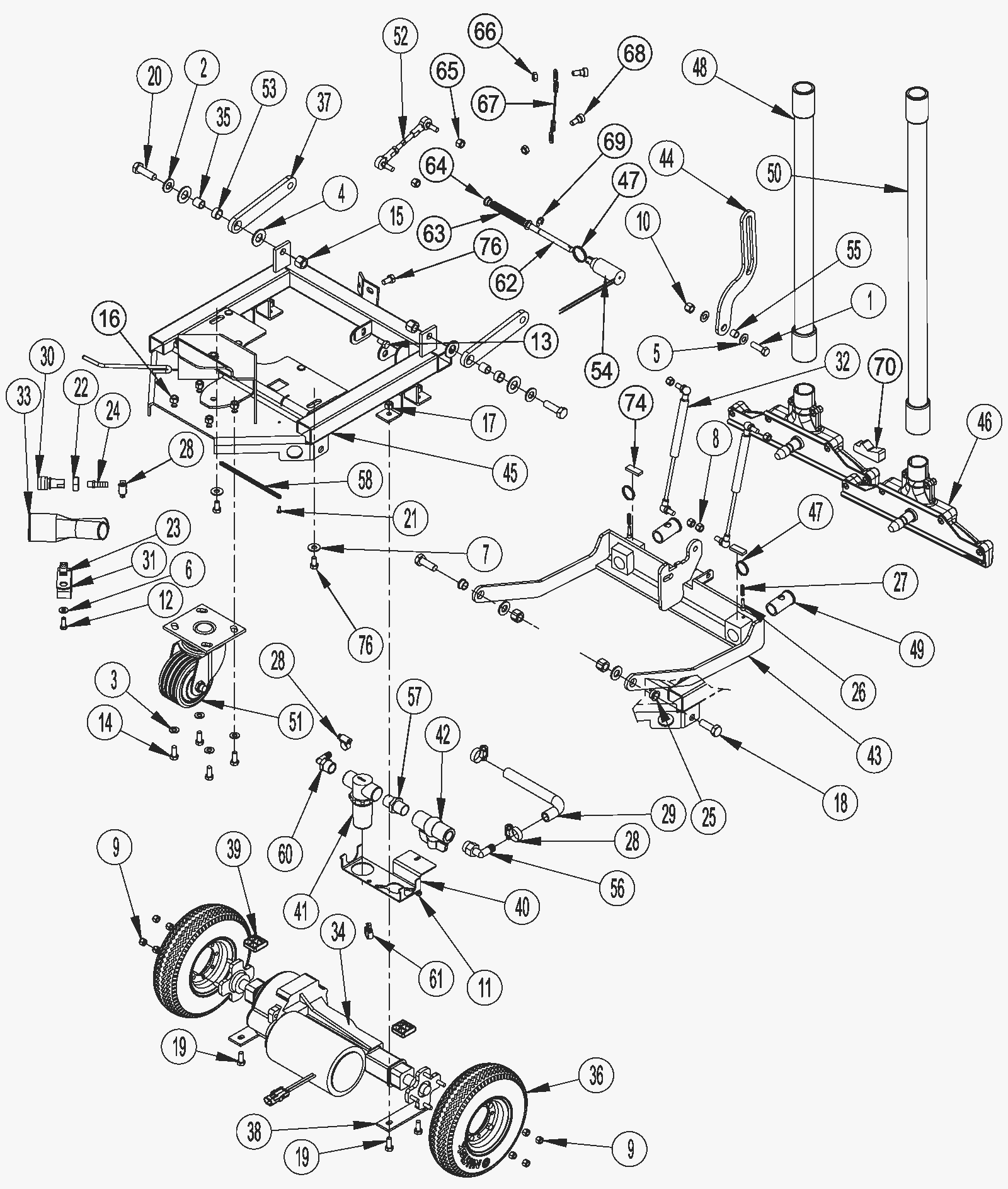

Chassis Assembly

#PartDescription ReqNotesAvailability
1 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 1
2 999-0114 Washer 1/2 SAE flat 4
3 999-0024 Washer 5/16 flat stainless steel 4
4 999-0349 Washer 5/8 SAE flat 4
5 999-0120 Washer 3/8 SAE flat 2
6 999-0123 Washer 1/4 SAE flat zinc plated 1
7 999-0024 Washer 5/16 flat stainless steel 2
8 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
9 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
10 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
11 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
12 272-1596 Bolt 1/4-20 x 3/4 hex head lock 1
13 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 1
14 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 4
15 999-0519 Nut M12-1.75 nylon insert lock stainless steel 4
16 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
17 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
18 999-1128 Bolt M12-1.75 x 35mm hex hd stainless steel part thread 2
19 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4
20 999-1326 Screw M12-1.75 x 40mm hex head 2
21 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 1
22 999-0003 Nut 5/8-18 hex jam stainless steel 1
23 172-2049 Nut 1/4- 20 1
24 172-1348 Barb 3/8 x 1/8 1
25 172-9497 Flanged bearing 2
26 272-9297 Pin 2
27 172-4632 Spring 2
28 997-2002 Hose clamp #6 4
29 172-2327 Wire reinforced clear hose (OBSOLETE) 1
30 272-0606 1/8 inch quick connect female 1
31 272-9298 P-clamp 1
32 272-0420 Gas spring 2
33 272-0448 Weldment y-tube 1
34a 272-2335 24V transaxle 1 (includes 34c-34h)
34b 991-3082 24V transaxle 1
34c N/A Not available 1 (Motor)
34d 272-2337 Carbon brush assembly 4
34e 272-2338 Neoprene mounting sleeve 2
34f 272-9299 24V transaxle Kit
34g 272-9300 24V transaxle hub kit
34h 272-5579 Coupling kit 1
35 272-2275 Bushing 2
36 272-7059 Pneumatic wheel 2
37 272-2278 Linkage arm 2
38 272-9301 Plate 2
39 272-2341 Shim 2
40 272-9985 Filter mount bracket 1
41 272-2342 Solution filter 1
42 272-3640 Ball valve 1
43 272-9302 Shoe support weldment 1
44 272-9303 Lift linkage 1
45 272-9304 Chassis weldment 1
46a 272-9305 Vacuum shoe assembly 2 (includes 46b and 46c)
46b 272-9306 Vacuum shoe 2
46c 272-9307 Vacuum shoe bracket weldment (OBSOLETE) 2
47 272-9308 Ring 3
48 272-5313 25 inch vacuum hose 1
49 272-9309 Flange bearing 2
50 272-5314 30 inch vacuum hose 1
51 272-9310 Swivel caster 4 x 2 inch 1
52 272-9311 Turnbuckle 1
54 272-9312 Pull type solenoid 1
55 172-3101 Bushing 1
56 172-2103 Elbow barb 1
57 272-9986 Nipple 1
58 272-2343 Chain assembly 1
60 172-2115 Elbow barb 1
61 172-1793 Clip 1
62 272-9313 Latch rod 1
63 272-9314 Compression spring 1
64 172-8815 Flanged bearing 2
65 999-0340 Nut 5/16-24 nylon insert lock zinc plated 2
66 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
67 272-9315 Cable assembly 1
68 999-0646 Screw 5/16-18 x 3/8 socket head shoulder 2
69 172-4033 3/8 inch retaining ring 1
70 272-9317 Foam shoe spacer 1
74 272-9318 Foam strip 2
76 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 3
