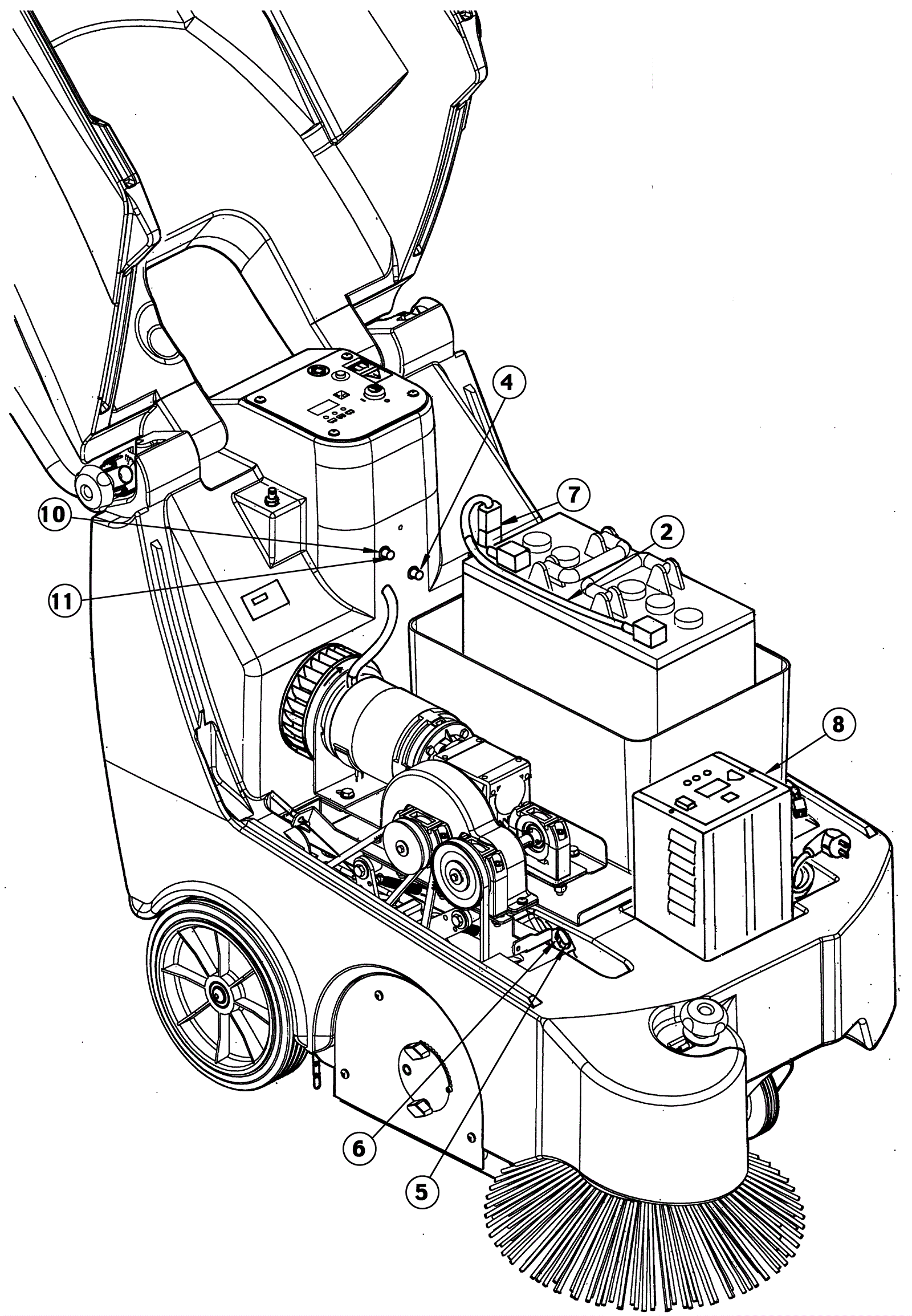

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
172-3813
|
Battery wiring (OBSOLETE) |
1 |
|
|
4a |
272-5571
|
60 amp fuse |
2 |
(before SN 1664873) |
|
4b |
272-5323
|
70amp circuit breaker (OBSOLETE) |
1 |
(after SN 1664872) |
|
5 |
472-1367
|
HOLDER FUSE THERMOPL. UL 94-V0 |
1 |
|
|
6 |
172-3648
|
15amp fuse |
1 |
|
|
7 |
N/A
|
Not available |
2 |
(Charger plug) |
|
8 |
172-3816
|
12V 20amp onboard battery charger |
1 |
|
|
10 |
272-9587
|
Fuse holder (OBSOLETE) |
1 |
|
|
11 |
272-9588
|
10amp fuse |
1 |
|
|
N/S |
172-3812
|
Machine wiring (OBSOLETE) |
1 |
|
|
N/S |
172-3814
|
Main fuse holder |
1 |
|
|
N/S |
172-3817
|
Charger connector (OBSOLETE) |
1 |
|
|
