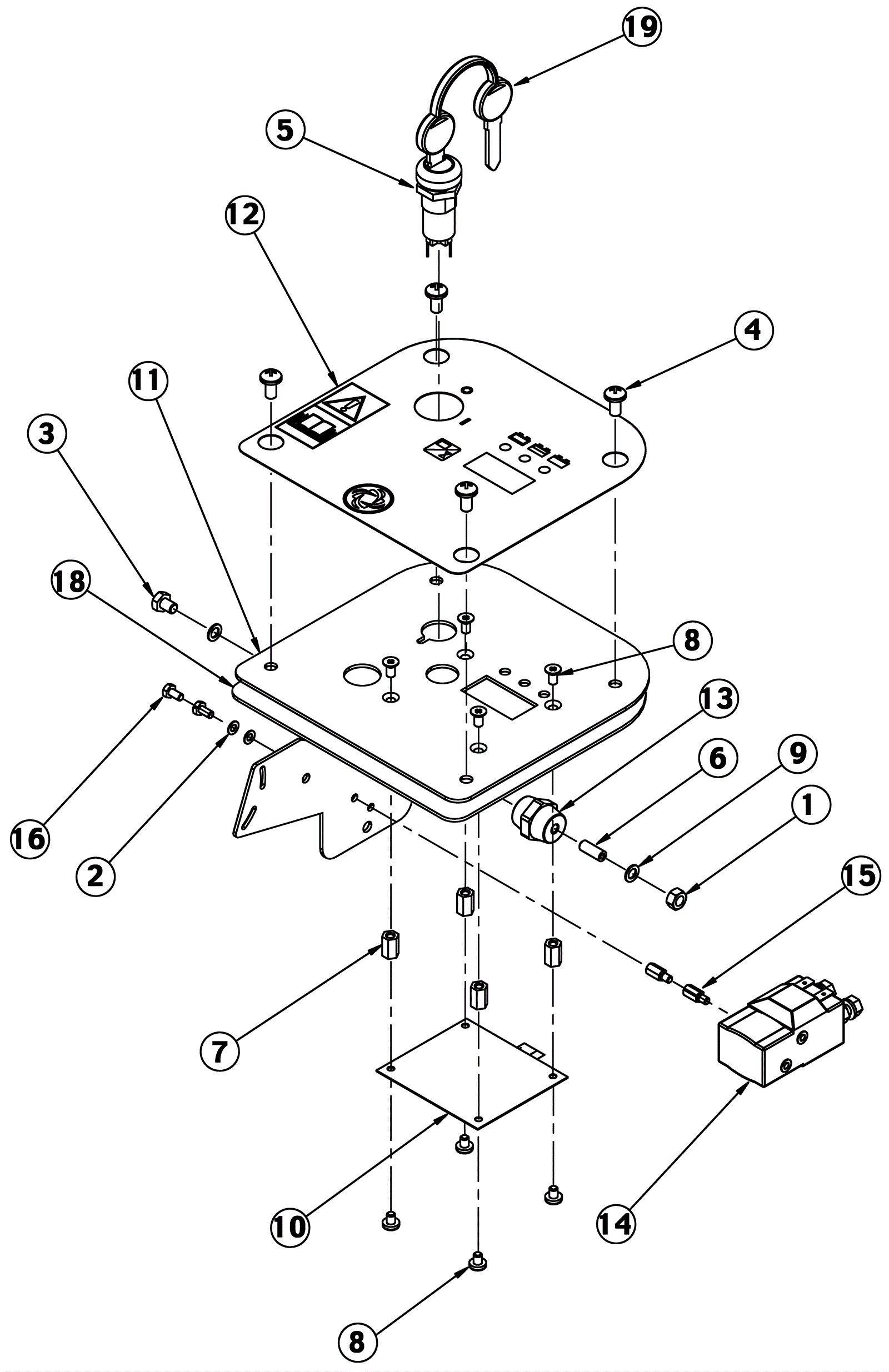

Control Panel Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 1 (Nut)
2 N/A Not available 2 (Washer)
3 N/A Not available 1 (Screw M6 x 10)
4 N/A Not available 4 (Screw M6 x 12)
5a 172-3785 Key switch with two keys 1
5b 991-1634 Key (pkg of 2) 1
6 272-9578 Dowel 1
7 172-3787 Spacer (OBSOLETE) 4
8 N/A Not available 8 (Screw M4 x 8)
9 N/A Not available 2 (Washer)
10 172-3790 Electronic card 1
11 172-3791 Control panel (OBSOLETE) 1
12 172-3792 Control panel decal (OBSOLETE) 1
13 272-9579 Insulator 1
14 172-3794 Electromagnetic switch 1
15 N/A Not available 2 (Spacer)
16 N/A Not available 2 (Screw M4 x 8)
18 272-9580 Gasket (OBSOLETE) 1
19 991-1634 Key (pkg of 2) 1
