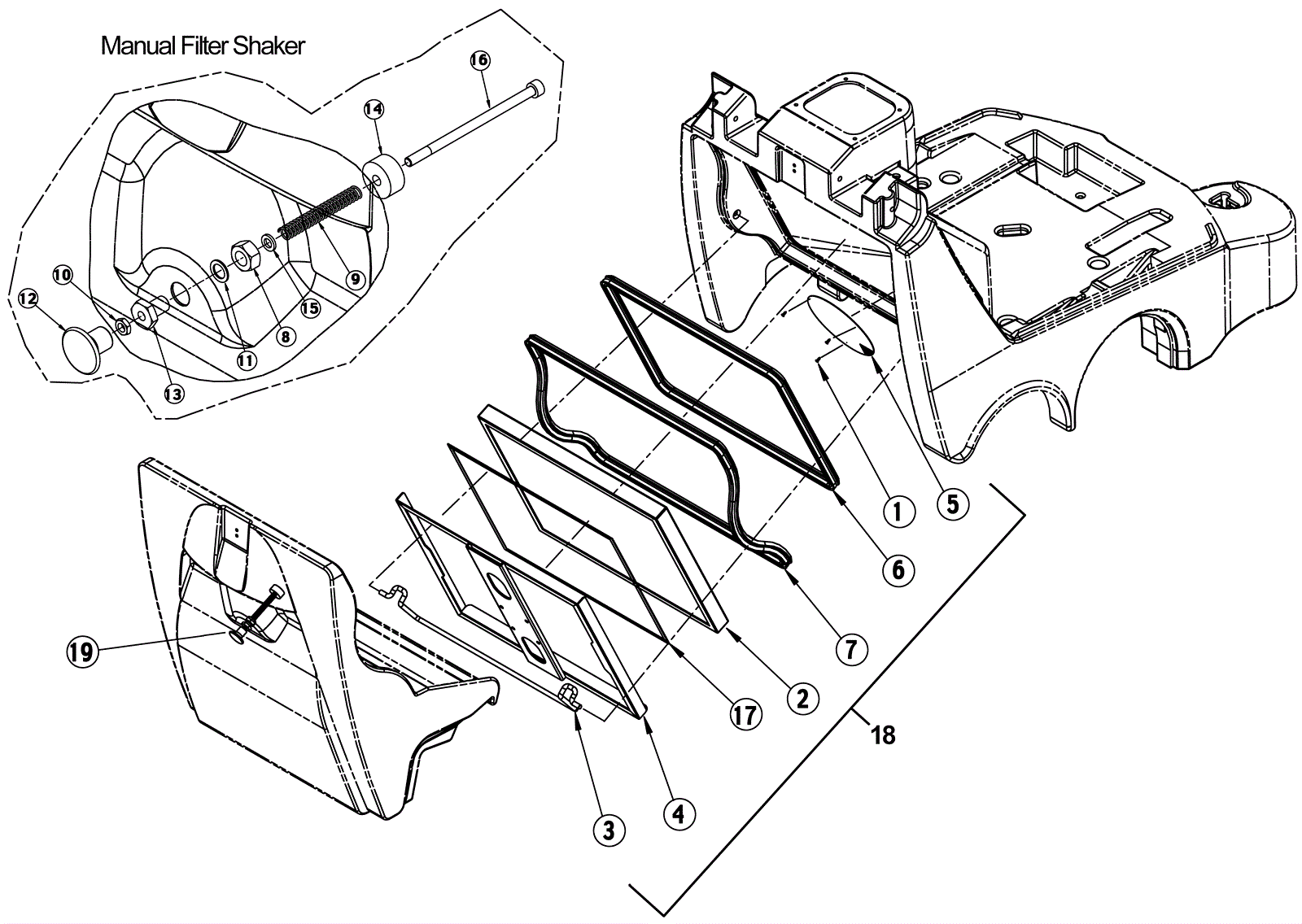

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
3 |
(Screw M4 x 12 threaded form) |
|
2a |
272-5272
|
Paper filter |
1 |
|
|
2b |
172-3750
|
Antistatic filter |
1 |
|
|
2c |
172-3751
|
Polyester filter |
1 |
|
|
3 |
172-3752
|
Filter hook (OBSOLETE) |
1 |
|
|
4 |
172-3753
|
Filter frame (OBSOLETE) |
1 |
|
|
5 |
172-3754
|
Fan protection (OBSOLETE) |
1 |
|
|
6 |
181-2002
|
Recovery tank lid gasket |
1 |
|
|
7 |
272-8080
|
Tank lid gasket (OBSOLETE) |
1 |
|
|
8 |
N/A
|
Not available |
1 |
(Nut M10 hex) |
|
9 |
N/A
|
Not available |
1 |
(Spring) |
|
10 |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
|
|
11 |
N/A
|
Not available |
1 |
(Washer) |
|
12 |
N/A
|
Not available |
1 |
(Knob M6) |
|
13 |
N/A
|
Not available |
1 |
(Filter shaker bushing) |
|
14 |
N/A
|
Not available |
1 |
(Spacer) |
|
15 |
N/A
|
Not available |
1 |
(Washer flat) |
|
16 |
N/A
|
Not available |
1 |
(Screw M6 x 110) |
|
17 |
272-5324
|
Pre-filter |
1 |
|
|
18 |
172-3764
|
Electric filter shaker kit (OBSOLETE) |
1 |
(includes 1-7 and 17) |
|
19 |
272-9572
|
Manual filter shaker kit (OBSOLETE) |
1 |
(includes 8, 9, 10, 11, 12, 13, 14, 15, 16) |
|
N/S |
272-6551
|
Hardware kit |
1 |
(includes Screw M5 x 20, Screw M4 x 12 thread forming, Nut M8, Screw 8 x 130, Nut M6 self locking, Screw 4 x 8 thread forming and Washer 6 x 12 flat) |
|
