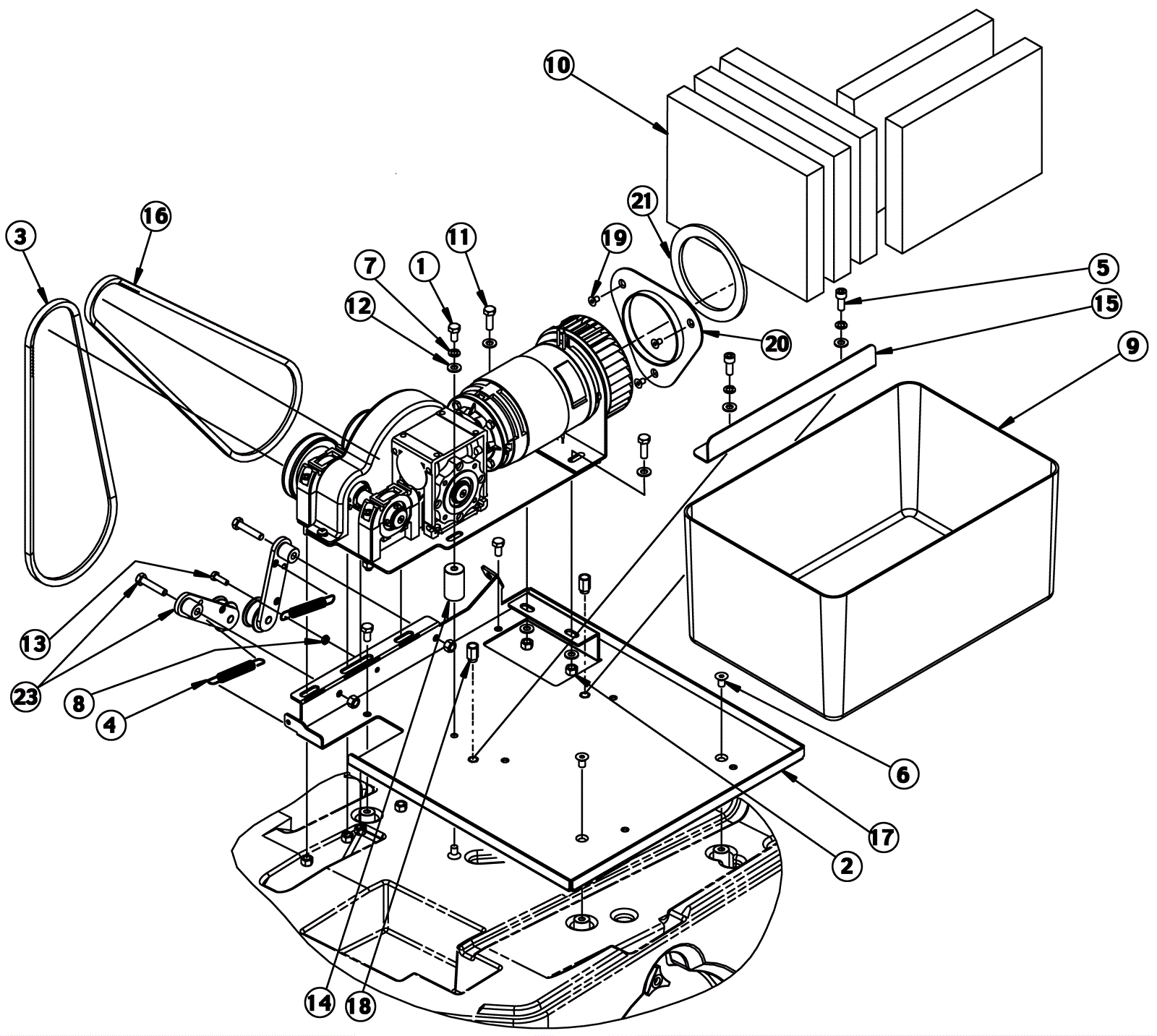

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
3 |
|
|
2 |
N/A
|
Not available |
2 |
(Nut M8 selflocking hex) |
|
3 |
172-7065
|
Drive belt (OBSOLETE) |
1 |
|
|
4 |
172-3700
|
Spring |
2 |
|
|
5 |
N/A
|
Not available |
2 |
(Screw M8 x 20) |
|
6 |
N/A
|
Not available |
3 |
(Screw M8 x 14) |
|
7 |
N/A
|
Not available |
3 |
(Washer) |
|
8 |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
|
|
9 |
172-3705
|
Plastic battery box |
1 |
|
|
10 |
172-3706
|
Insulating panel |
5 |
|
|
11 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
2 |
|
|
12 |
N/A
|
Not available |
7 |
(Washer flat) |
|
13 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
14 |
172-3708
|
Spacer (OBSOLETE) |
1 |
|
|
15 |
172-3709
|
Bracket (OBSOLETE) |
1 |
|
|
16 |
272-8727
|
Belt |
1 |
|
|
17 |
172-3711
|
Supporting plate (OBSOLETE) |
1 |
|
|
18 |
172-3638
|
Insert (OBSOLETE) |
2 |
|
|
19 |
N/A
|
Not available |
3 |
(Screw M6 x 10) |
|
20 |
272-8728
|
Vacuum flange (OBSOLETE) |
1 |
|
|
21 |
N/A
|
Not available |
1 |
(Vacuum gasket) |
|
23 |
272-9589
|
Belt tensioner assembly (OBSOLETE) |
2 |
|
|
N/S |
272-8729
|
Transmission system hardware kit (OBSOLETE) |
1 |
(includes 1, 2, 5, 6, 7, 8, 11, 12, 13, 19) |
|
