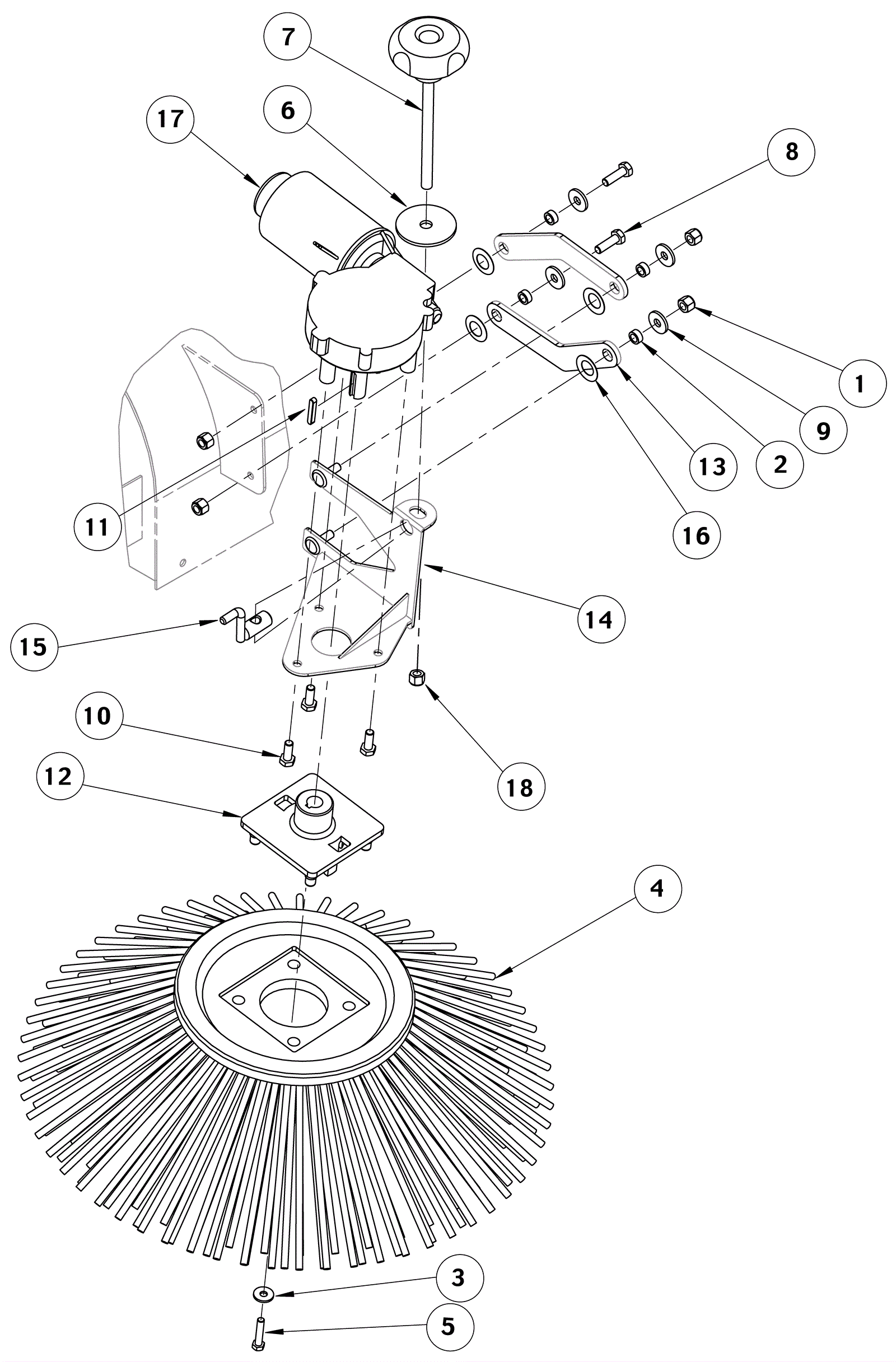

Side Broom Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 4 (Nut M6 self locking)
2 172-3668 Spacer 6 1/2 X 10 X 4 1/2 4
3 N/A Not available 1 (Washer flat)
4a 272-5573 Nylon side broom 1
4b 172-3669 Polypropelene side broom 1
4c 172-3670 Steel mix side broom 1
4d 172-3671 Natural fiber side broom 1
5 999-9090 Screw M5-.8 x 25mm hex head stainless steel 1
6 N/A Not available 1 (Washer flat)
7 172-3674 Tilt knob (OBSOLETE) 1
8 999-1312 Screw M6-1 x 20mm hex head stainless steel 2
9 N/A Not available 4 (Washer flat)
10 999-1383 Screw M6-1 x 16mm hex head stainless steel 3
11 172-3676 Square keyway 1
12 172-3677 Side broom hub (OBSOLETE) 1
13 172-3678 Side broom arm (OBSOLETE) 2
14 172-3679 Broom bracket 1
15 172-3680 Side broom hook (OBSOLETE) 1
16 N/A Not available 4 (Washer)
17 172-3682 Brush gear motor (OBSOLETE) 1
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
19 272-8730 Side broom hardware kit 1 (includes 1, 3, 5, 6, 8, 9, 10 16, 18)
