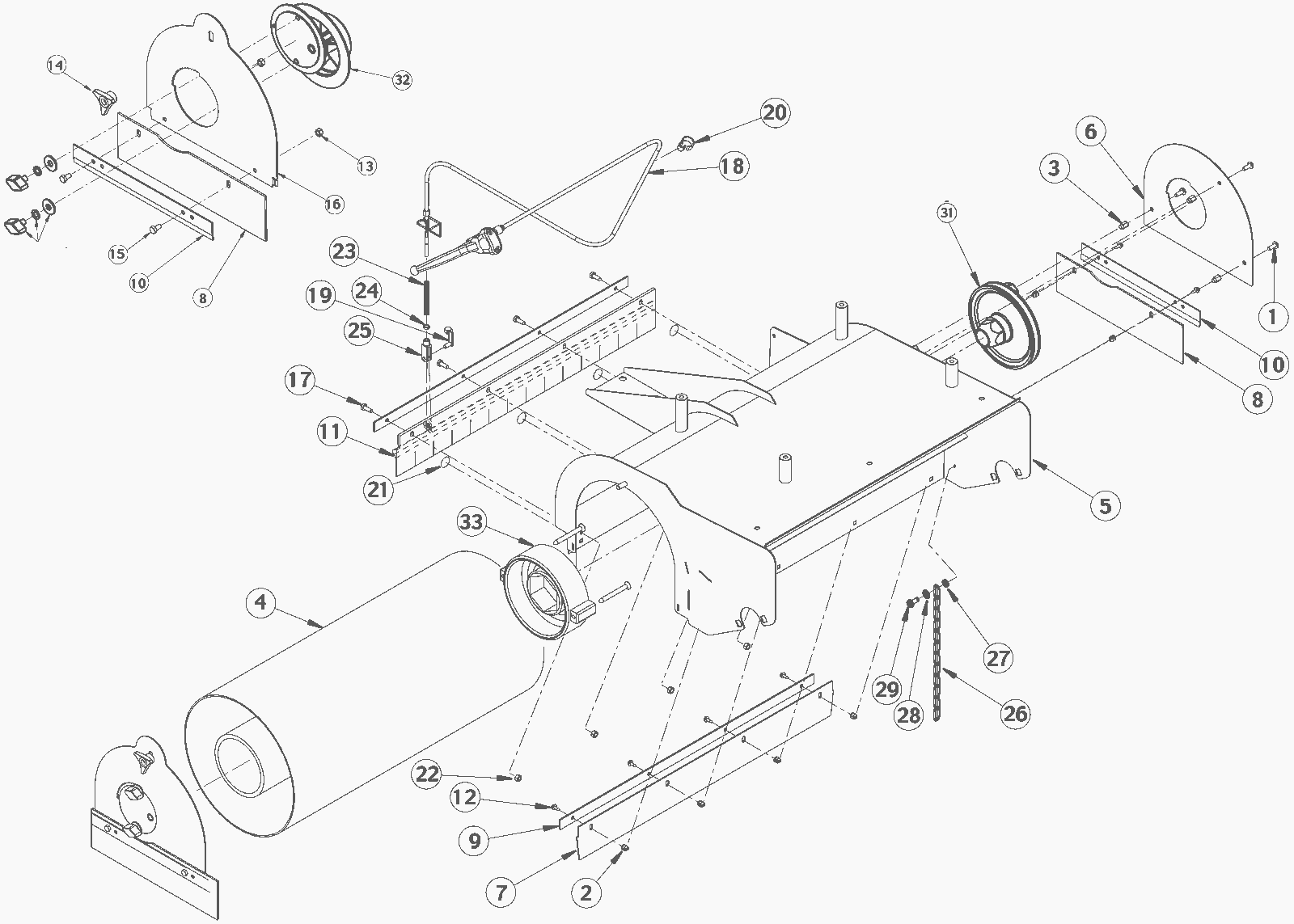

Main Broom Asembly

#PartDescription ReqNotesAvailability
1 N/A Not available 3 (Screw M6 x 16)
2 N/A Not available 6 (Main screw)
3 N/A Not available 3 (Insert M6)
4a 272-8706 Nylon scrubbing brush - CYLINDRICAL 1 (9 1/2 inch) (standard)
4b 272-8707 Natural fiber scrubbing brush - CYLINDRICAL 1 (9 1/2 inch)
4c 272-5325 Polypropelene scrubbing brush-CYLINDRICAL 1 (9 1/2 inch)
4d 272-8709 Steel mix scrubbing brush - CYLINDRICAL (OBSOLETE) 1 (9 1/2 inch)
4e 272-8710 Polypropelene scrubbing brush - CYLINDRICAL (OBSOLETE) 1 (10 inch)
4f 272-8711 Steel mix scrubbing brush - CYLINDRICAL 1 (10 inch)
4g 272-8712 Natural fiber scrubbing brush - CYLINDRICAL 1 (10 inch)
5 272-8713 Brush support (OBSOLETE) 1
6 172-3657 Right hub plate 1
7a 272-8714 Rear non-marking skirt 1
7b 272-8715 Rear skirt 1
8a 172-3659 Side non-marking skirt 2
8b 272-8716 Side skirt 2
9 272-8718 Skirt plate (OBSOLETE) 2
10 172-3661 Side skirt plate (OBSOLETE) 2
11a 272-8719 Front skirt 1
11b 272-8720 Front non-marking skirt (OBSOLETE) 1
12 N/A Not available 6 (Screw threaded)
13 999-0497 Nut M6-1 nylon insert lock stainless steel 2
14 172-3664 Knob M8 1
15 172-3665 Screw 6 x 12 hex head 2
16 172-3666 Hub plate 1
17 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
18 272-8722 Lifting cable 1
19 172-3779 Clip 1
20 272-9575 Locking clip (OBSOLETE) 1
21 272-8723 Decal (OBSOLETE) 4
22 N/A Not available 4 (Nut)
23 172-3757 Spring 1
24 N/A Not available 1 (Nut)
25 472-1423 CLEVIS M6X24 GALV. DIN71752 PK 1
26 272-8724 Chain 1
27 N/A Not available 1 (Washer M4)
28 999-9089 Washer M4 flat stainless steel 1
29 N/A Not available 1 (Screw M4 x 10 cylindrical head)
31 270-8165 Right side hub assembly 1
32 270-8164 Left side hub assembly 1
33 272-5290 Hub (OBSOLETE) 1
34 272-8725 Brush hardware kit (OBSOLETE) 1 (includes 1, 2, 3, 12, 17, 22, 24, 27, 28, 29)
35 572-3251 HARDWARE BRUSH DECK KIT 1 (machine without drive)
