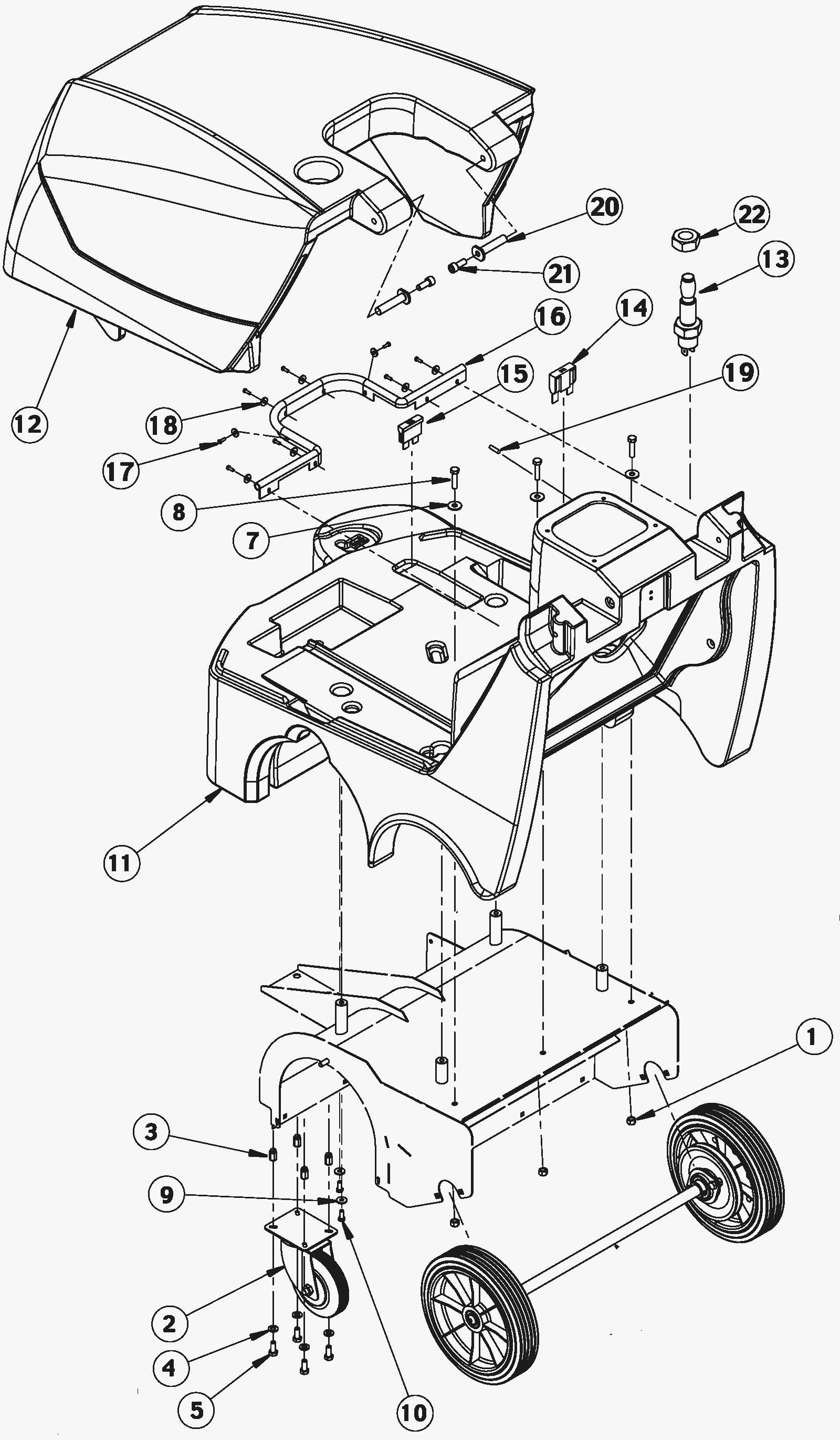

Chassis Assembly

#PartDescription ReqNotesAvailability
1 999-0496 Nut M8-1.25 nylon insert lock stainless steel 3
2a 172-3636 Caster wheel 1
2b 172-3637 Caster wheel (OBSOLETE) 1
3 N/A Not available 4 (Insert)
4 N/A Not available 4 (Washer flat)
5 999-9092 Screw M8-1.25 x 20mm hex head stainless steel 4
7 N/A Not available 3 (Washer flat)
8 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 3
9 N/A Not available 2 (Washer)
10 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
11 272-8700 Chassis assembly (OBSOLETE) 1
12 272-8701 Hood 1
13 172-3646 Safety switch 1
14 272-5571 60 amp fuse 1
15 172-3648 15amp fuse 1
16 272-8705 Gasket 1
17 N/A Not available 8 (Screw 4 x 12 inch threaded)
18 N/A Not available 8 (Washer)
19 272-5475 Cap (OBSOLETE) 1
20 272-8702 Spacer (OBSOLETE) 2
21 N/A Not available 2 (Screw 10 x 20)
22 272-8703 Nut M14 hex head 1
N/S 272-8704 Chassis system harware kit (OBSOLETE) 1 (includes 1, 3, 4, 5, 7-10, 17, 18, 21)
