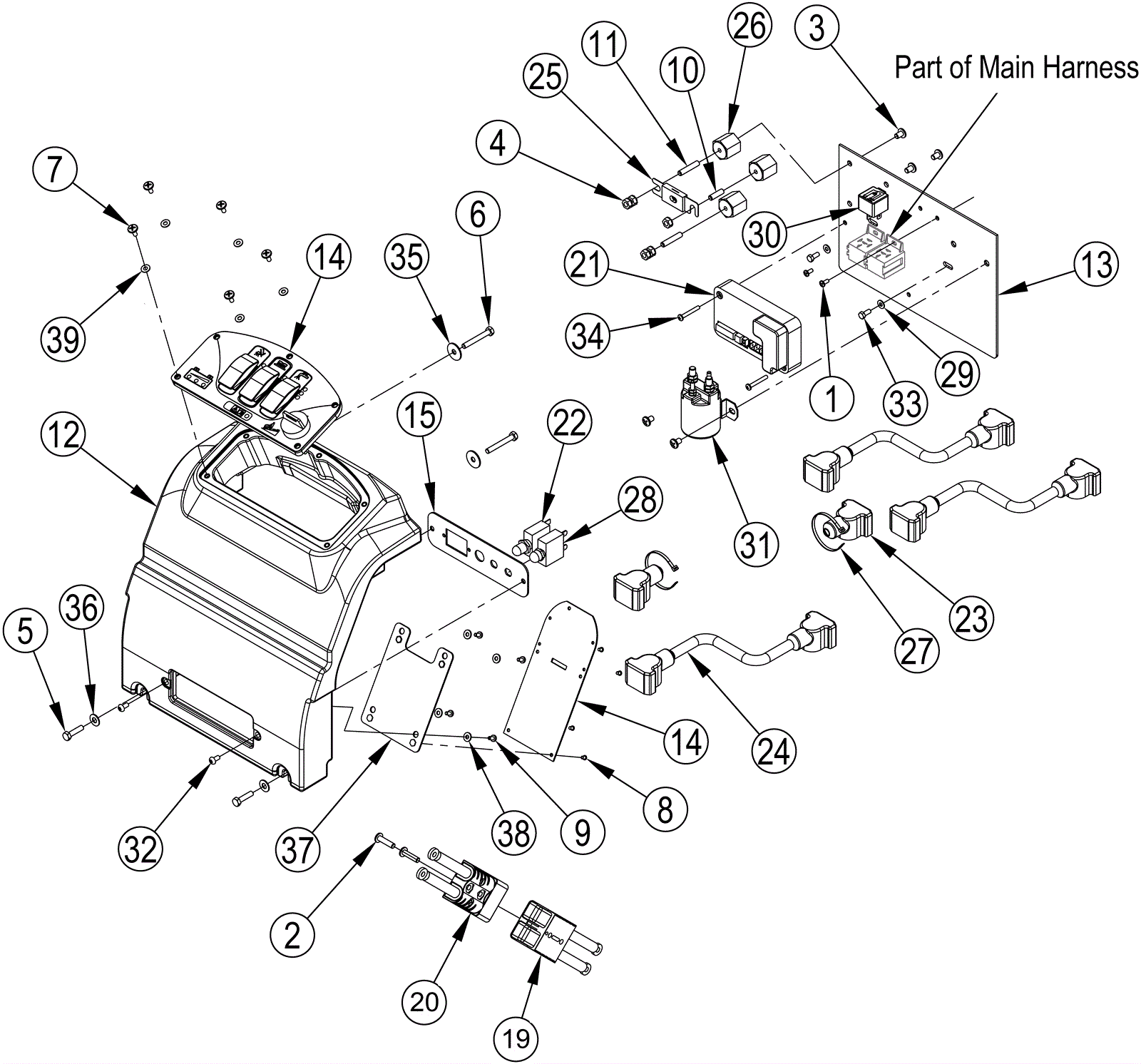

Electrical Assembly SC750 ST, SC800 ST

#PartDescription ReqNotesAvailability
1 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 2
2 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 2
3 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated 5
4 999-0609 Nut 1/4-20 hex stainless steel 5
6 999-0781 Screw M6-1 x 45mm hex head 2
7 272-9904 Screw M5-.8 x 12mm truss head phillips 5
8 372-1625 Screw 6-32 x 3/16 pan head phillips (black) 4
9 999-1556 Screw M4-.7 x 8mm pan head phillips zinc plated 4
10 172-0345 Terminal stud 1
11 172-0346 Stud 1/4-20 2
12 272-9842 Control panel 1
13 272-9843 Electrical panel 1
14 272-9922 ST control board kit 1
15a 272-9845 Circuit breaker plate 1 (56112122 is obsolete, and replaced by 56112540 (15a)) (before SN 4000068715)
19 272-9850 Connector assembly (to battery) 1
20 272-9849 Connector assembly (to panel) 1
21 272-9925 Speed controller 1
22 272-2209 30amp circuit breaker 1
23 172-0223 Battery cable boot 2
24 270-0015 Battery series cable ring style 3
25 172-8836 150amp fuse 1
26 172-0103 Electrical mount 3
28 272-9374 10amp circuit breaker 1
29 999-1416 Washer 7/16 flat stainless steel 2
30 270-0216 Relay 1
31 172-2163 24V solenoid 4 post (2 large 2 small) 1
32 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated 2
33 999-1220 Screw M5-.8 x 12mm hex head stainless steel 2
34 272-8590 Screw 8-32 x 1 1/4 pan head 2
35 172-0553 Washer 17/64 x 1/16 flat 2
36 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
37 272-9851 PCB mount bracket 1
38 999-0412 Washer #8 SAE flat 4
39 472-8035 WASHER-BLACK NYLON-6/6 5
N/S 272-9923 Momentary rocker switch 3
N/S 272-2195 Key switch assembly 1
N/S 272-2196 Keys (pkg of 2) 1 (for 56303553)
N/S 272-9924 ST interface panel kit 1 (membrane switch, membrane panel, gasket)
N/S 272-9846 Jumper cable 1
N/S 272-9847 Main harness (OBSOLETE) 1 (before SN 4000068715)
N/S 472-7974 HARNESS-MAIN 1 (after SN 4000068714)
