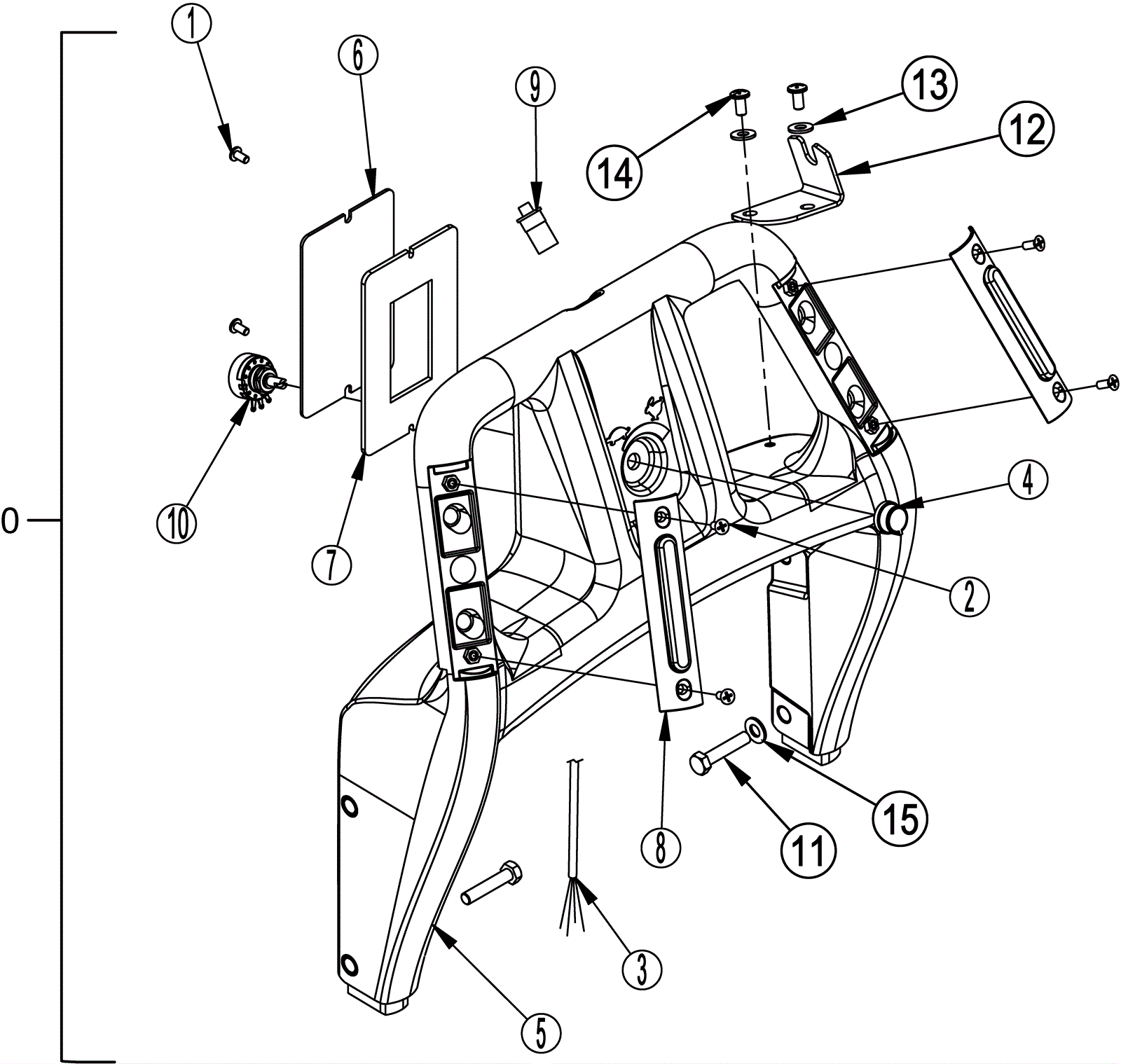

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
272-9926
|
Handle assembly (OBSOLETE) |
1 |
(includes 1-10) (before SN 4000068715) |
|
0b |
472-7867
|
HANDLE ASSY |
1 |
(includes 1-10) (after SN 4000068714) |
|
1 |
999-0571
|
Screw 10-24 x 3/8 pan head phillips stainless steel |
2 |
|
|
2 |
999-0421
|
Screw 10-24 x 1/2 flat head phillips zinc plated |
4 |
|
|
3a |
272-9927
|
Handle harness |
1 |
(before SN 4000068715) |
|
3b |
472-7865
|
HARNESS-HANDLE |
1 |
(after SN 4000068714) |
|
4 |
272-2192
|
Knob |
1 |
|
|
5 |
272-8196
|
Rotomold handle |
1 |
|
|
6 |
272-8190
|
Access plate |
1 |
|
|
7 |
272-8199
|
Access plate gasket |
1 |
|
|
8 |
272-8197
|
Handle switch assembly |
2 |
|
|
9 |
272-8191
|
SPST momentary switch |
1 |
|
|
10 |
272-8189
|
Potentiometer |
1 |
|
|
11 |
999-0551
|
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
4 |
|
|
12 |
472-4583
|
SQUEEGEE HOLDER |
1 |
|
|
13 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
14 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
2 |
|
|
15 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
