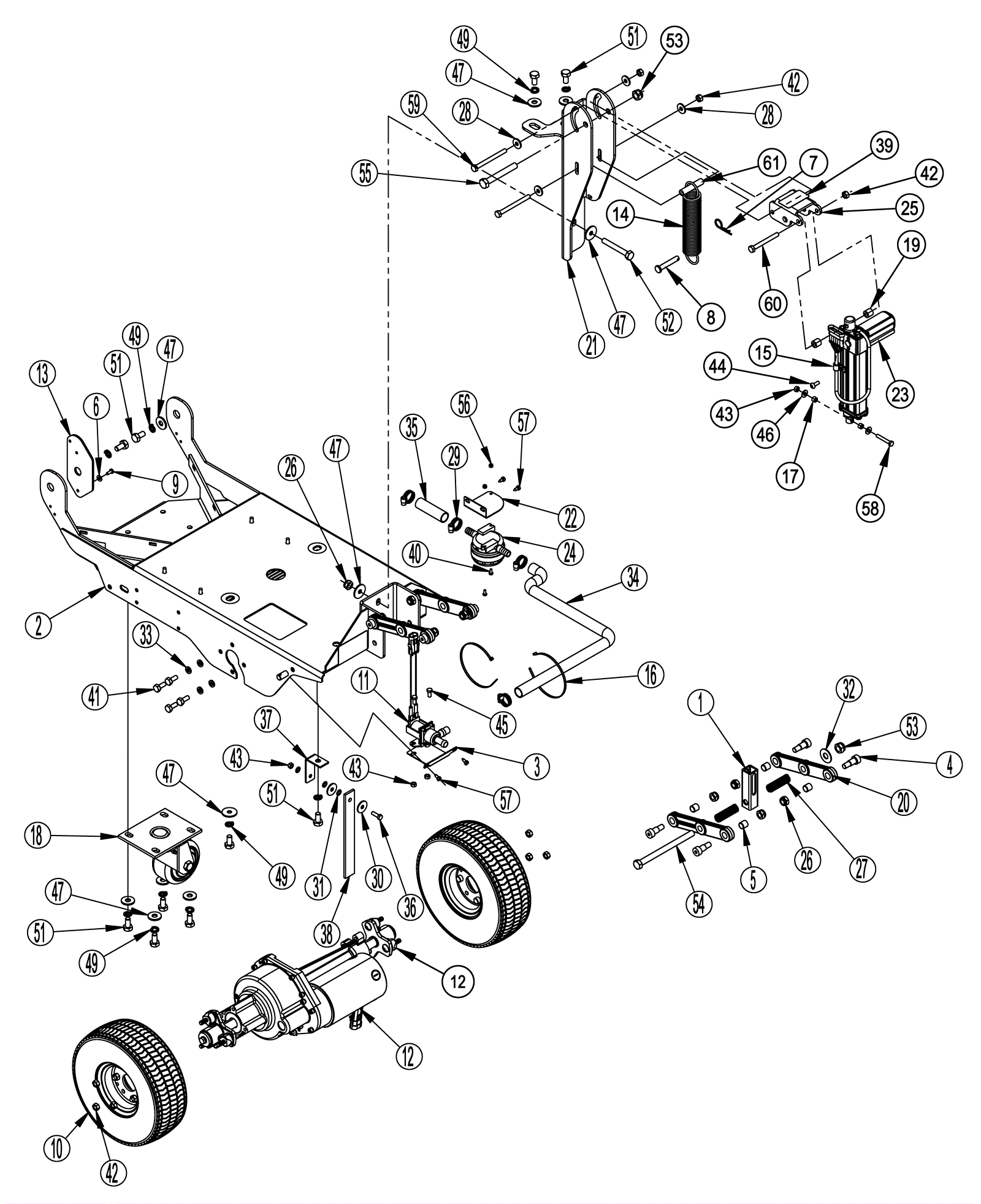

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
272-9812
|
Tube |
1 |
|
|
2 |
272-9813
|
Chassis weldment |
1 |
|
|
3 |
270-0265
|
Solution valve bracket |
1 |
|
|
4 |
472-3577
|
SCR-SOC SHD M12X16MMX M10-1.50 |
8 |
|
|
5 |
472-4566
|
Bushing |
8 |
|
|
6 |
999-1862
|
Washer #10 flat SAE stainless steel |
1 |
|
|
7 |
172-2001
|
Hair cotter pin |
1 |
|
|
8 |
172-3484
|
Clevis pin |
1 |
|
|
9 |
999-0545
|
Screw 10-24 x 1/2 pan head phillips self-tapping |
1 |
|
|
10 |
272-9814
|
Tire |
2 |
|
|
11 |
272-9815
|
Solenoid valve assembly |
1 |
|
|
12a |
272-9820
|
Flange kit |
2 |
(includes 12b) |
|
12b |
272-9816
|
Transaxle |
1 |
|
|
12c |
272-9970
|
Transaxle motor kit |
1 |
(optional) (includes 12d) |
|
12d |
372-1624
|
Carbon brush |
4 |
(optional) |
|
13 |
272-9817
|
Connector bracket |
1 |
|
|
14 |
272-9821
|
Extension spring |
1 |
|
|
15 |
172-9530
|
Cable clamp |
1 |
|
|
16 |
272-7413
|
Cable tie |
1 |
|
|
17 |
270-0227
|
Spacer (OBSOLETE) |
2 |
|
|
18 |
272-9818
|
Rear caster |
1 |
|
|
19 |
270-0258
|
Spacer |
2 |
|
|
20 |
472-7661
|
Lever kit |
4 |
|
|
21 |
270-0261
|
Bracket |
1 |
|
|
22 |
270-0267
|
Filter bracket |
1 |
|
|
23 |
272-3543
|
Actuator |
1 |
|
|
24a |
272-3516
|
Water filter |
1 |
|
|
24b |
272-3516
|
Water filter |
1 |
(optional) |
|
25 |
270-0256
|
Lever |
1 |
|
|
26 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
9 |
|
|
27 |
270-0287
|
Spring |
2 |
|
|
28 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
29 |
997-2002
|
Hose clamp #6 |
4 |
|
|
30 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
2 |
|
|
31 |
999-0017
|
Washer 1/4 external star lock |
3 |
|
|
32 |
170-5602
|
Washer |
1 |
|
|
33 |
999-0028
|
Washer 5/16 split lock plain finish |
8 |
|
|
34 |
270-0263
|
25 inch hose (clear) |
1 |
|
|
35 |
270-0270
|
3 inch hose (clear) |
1 |
|
|
36 |
472-3608
|
SCR-HEX SS M6-1 X 20MM |
1 |
|
|
37 |
270-0273
|
Strap bracket |
1 |
|
|
38 |
170-7146
|
Static strap |
1 |
|
|
39 |
170-0226
|
Moving warning decal |
1 |
|
|
40 |
270-0269
|
Screw M4-.7 x 10mm |
2 |
|
|
41 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
8 |
|
|
42 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
9 |
|
|
43 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
44 |
272-8931
|
Screw M6-1 x 10mm pan head |
1 |
|
|
45 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
2 |
|
|
46 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
47 |
999-0716
|
Washer 3/8 x 1 1/4 fender |
10 |
|
|
49 |
999-0671
|
Washer M10 split lock plain finish |
10 |
|
|
51 |
472-3486
|
SCR-HEX M10-1.5 X 20MM |
10 |
|
|
52 |
999-9115
|
Screw M10-1.5 x 75mm hex head stainless steel |
1 |
|
|
53 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
|
54 |
270-0297
|
Screw M12-1.75 x 160mm hex head |
1 |
|
|
55 |
270-0255
|
Screw M12-1.75 x 90mm hex head |
1 |
|
|
56 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
|
|
57 |
270-0264
|
Screw M5 x 12mm hex head self-tapping |
4 |
|
|
58 |
999-1147
|
Bolt M6-1 x 40mm hex head stainless steel |
1 |
|
|
59 |
272-9819
|
Screw M8-1.25 x 90mm hex head |
2 |
|
|
60 |
999-6736
|
Bolt M8-1.25 x 75mm hex head stainless steel |
1 |
|
|
61 |
272-9822
|
Spacer |
1 |
|
|
