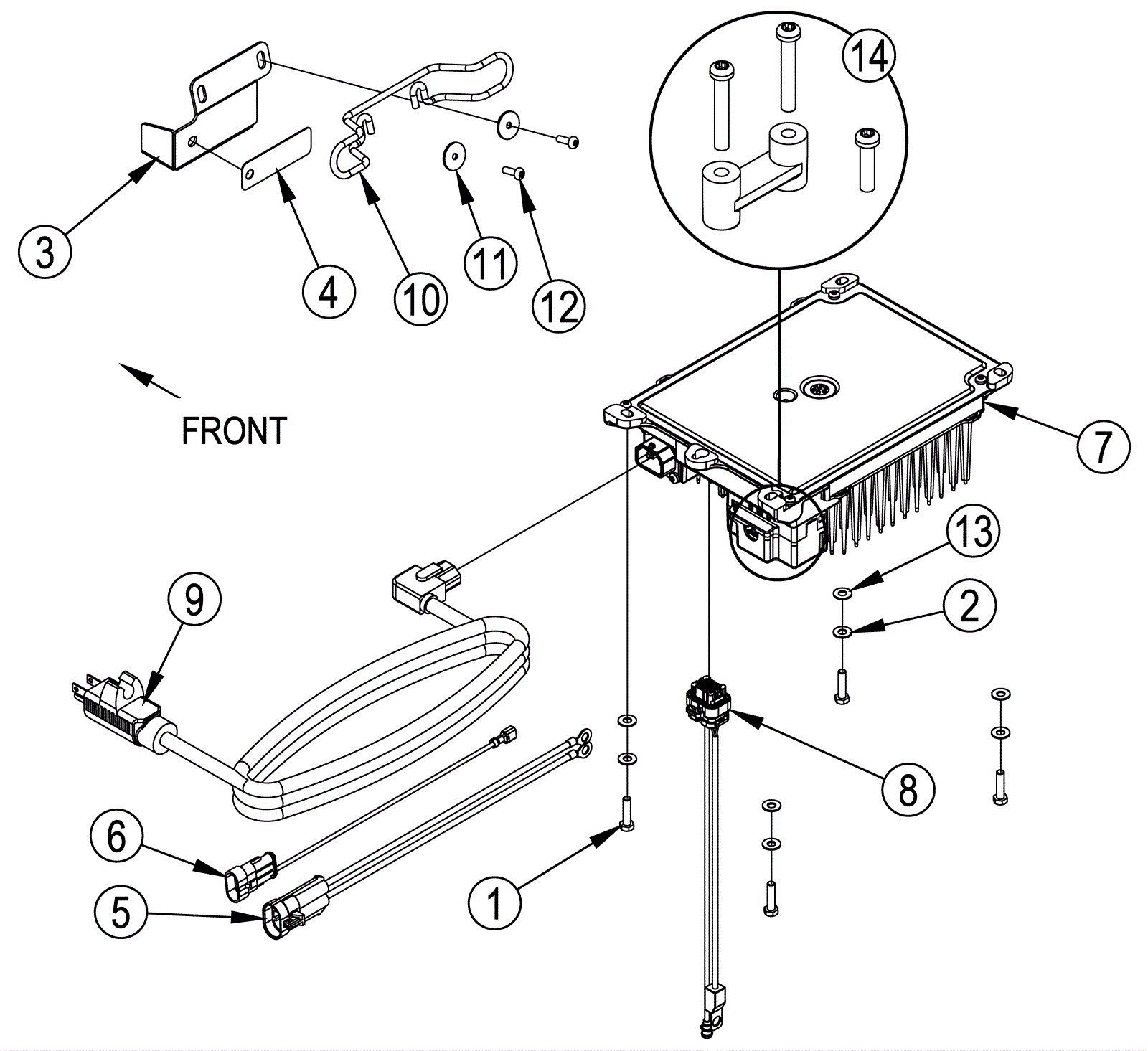

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
|
2 |
372-1011
|
Washer 1/4 |
4 |
|
|
3 |
472-7904
|
BRACKET-LED |
1 |
|
|
4 |
472-7905
|
DECAL-CHARGER LED |
1 |
|
|
5 |
272-6665
|
Power charger adapter |
1 |
|
|
6 |
472-7971
|
ADAPTER-INTERLOCK |
1 |
|
|
7 |
270-8393
|
24V onboard battery charger |
1 |
(the onboard battery charger is standard on model 56112780. the onboard battery charger 56112544 has been replaced in production by part number 270-8393 (56383856). if you need part number 272-9824 (56112544) please order on board charger kit part number 272-8616 (56383869) |
|
8 |
272-6663
|
LED charge indicator |
1 |
|
|
9 |
270-8395
|
AC cord |
1 |
|
|
10 |
272-0659
|
On-board charger cord wrap |
1 |
|
|
11 |
999-0588
|
Washer 7/8 flat stainless steel |
2 |
|
|
12 |
999-1182
|
Screw M5-.8 x 16mm pan head slotted stainless steel |
2 |
|
|
13 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
14 |
272-6666
|
Strain relief kit |
1 |
|
|
N/S |
272-7413
|
Cable tie |
8 |
|
|
