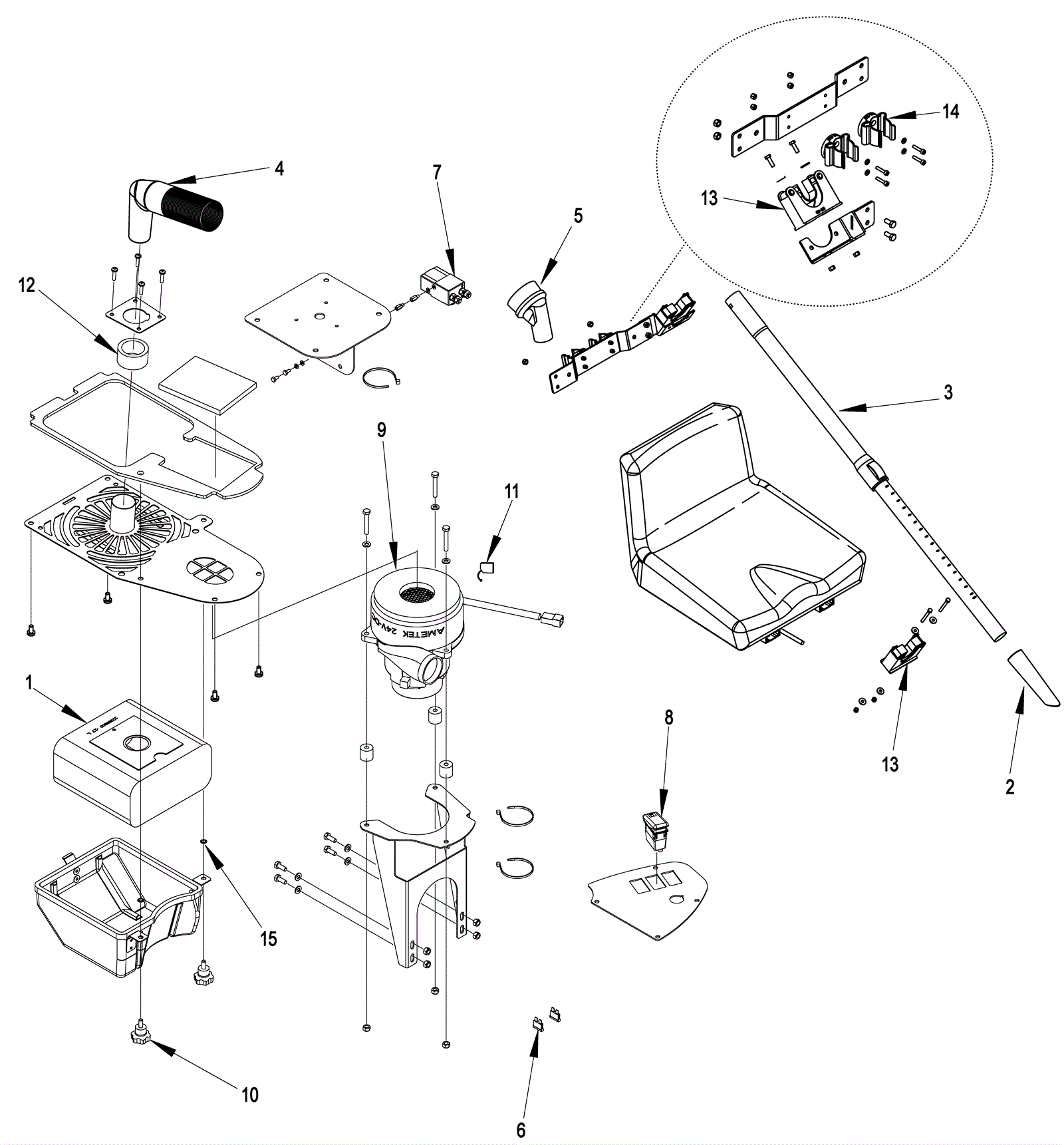

Terra 3700B Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8244 Dust bag $18.38 1 usually ships 1-5 days
2 172-1988 Flexible nozzle $18.78 1 usually ships 17-28 days
3 181-0548 Telescopic extension tube aluminum $87.37 1 ships same day
4 272-8381 Hose with bent end and sleeve $84.08 1 usually ships 1-5 days
5 172-9126 Brush nozzle $19.77 1 usually ships 17-28 days
6 181-0963 40amp fuse $12.31 2 usually ships 17-28 days
7 272-7141 24V switch $183.90 1 usually ships 17-28 days
8 272-8342 Front light switch $51.21 1 usually ships 17-28 days
9 272-8383 24V vacuum motor $628.06 1 usually ships 1-5 days
10 472-1227 KNOB LOBED M6X15 PKD $26.04 2 usually ships 17-28 days
11 272-8069 Carbon brushes set $19.98 1 usually ships 17-28 days
12 270-8242 Vacuum hose gasket $10.01 1 usually ships 1-5 days
13 272-8382 Hose clamp 30-40 $24.60 2 usually ships 1-5 days
14 270-8243 Clamp (OBSOLETE) $14.63 2 usually ships 1-5 days
15 272-9522 Retaining washer (OBSOLETE) $6.78 2 usually ships 1-5 days
KIT N/A Not available Call for price 1 (Includes items 1-15) usually ships 3-26 days
N/S N/A Not available Call for price 1 (Hardware kit) usually ships 3-26 days
N/S N/A Not available Call for price 1 (Installation instructions) usually ships 3-26 days
