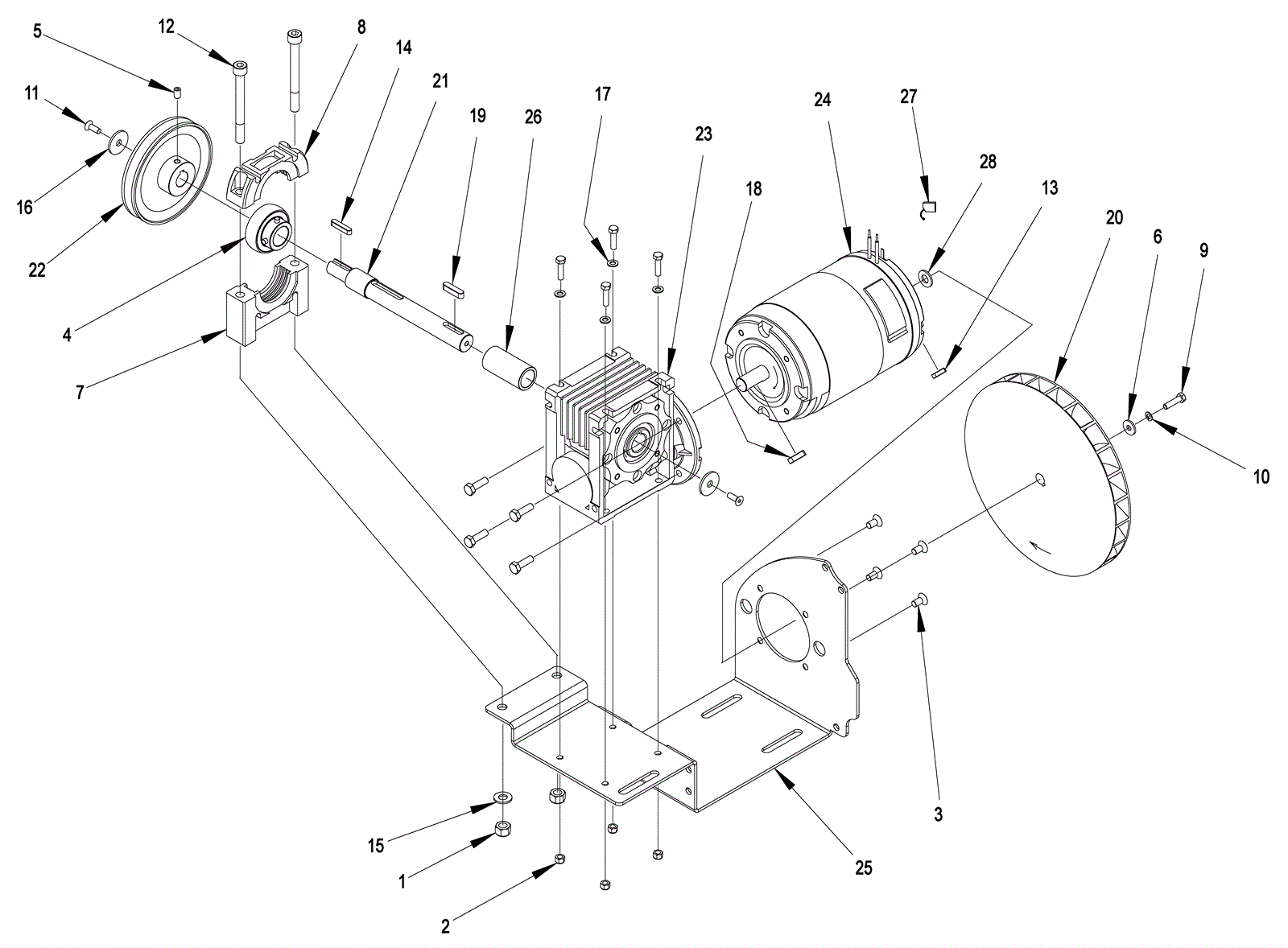

Terra 3700B Reduction Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8216 Reduction motor hardware assembly $505.12 2 (nut) usually ships 1-5 days
2 270-8216 Reduction motor hardware assembly $505.12 4 (nut) usually ships 1-5 days
3 270-8216 Reduction motor hardware assembly $505.12 4 (screw) usually ships 1-5 days
4 172-3684 Ball bearing $133.53 1 usually ships 1-5 days
5 270-8216 Reduction motor hardware assembly $505.12 1 (dowel) usually ships 1-5 days
6 270-8216 Reduction motor hardware assembly $505.12 1 (washer) usually ships 1-5 days
7 172-3724 Support $12.31 1 ships same day
8 172-3725 Support $12.31 1 usually ships 17-28 days
9 270-8216 Reduction motor hardware assembly $505.12 5 (screw) usually ships 1-5 days
10 270-8216 Reduction motor hardware assembly $505.12 1 (washer split) usually ships 1-5 days
11 270-8216 Reduction motor hardware assembly $505.12 2 (screw) usually ships 1-5 days
12 270-8216 Reduction motor hardware assembly $505.12 2 (screw) usually ships 1-5 days
13 270-8216 Reduction motor hardware assembly $505.12 1 (key) usually ships 1-5 days
14 270-8216 Reduction motor hardware assembly $505.12 1 (key) usually ships 1-5 days
15 270-8216 Reduction motor hardware assembly $505.12 1 (washer) usually ships 1-5 days
16 270-8216 Reduction motor hardware assembly $505.12 2 (washer) usually ships 1-5 days
17 270-8216 Reduction motor hardware assembly $505.12 4 (washer) usually ships 1-5 days
18 270-8216 Reduction motor hardware assembly $505.12 1 (key) usually ships 1-5 days
19 270-8216 Reduction motor hardware assembly $505.12 1 (key) usually ships 1-5 days
20 172-3738 Fan (OBSOLETE) $117.70 1 usually ships 1-5 days
21 172-3741 Transmission shaft (OBSOLETE) $59.95 1 usually ships 1-5 days
22 270-8217 Pulley $36.26 1 usually ships 17-28 days
23 270-8218 Reduction gear assembly (OBSOLETE) $455.73 1 usually ships 1-5 days
24 472-1424 MOTOR ELECTRIC 600W 24V PKD $1,041.87 1 usually ships 17-28 days
25 270-8219 Supporting plate (OBSOLETE) $96.58 1 usually ships 1-5 days
26 270-8220 Spacer (OBSOLETE) $40.70 1 usually ships 1-5 days
27 N/A Not available Call for price 4 usually ships 3-26 days
28 270-8221 Washer (OBSOLETE) $6.27 1 usually ships 1-5 days
KIT 270-8216 Reduction motor hardware assembly $505.12 1 (includes: 1-3, 5, 6 and 9-19) usually ships 1-5 days
