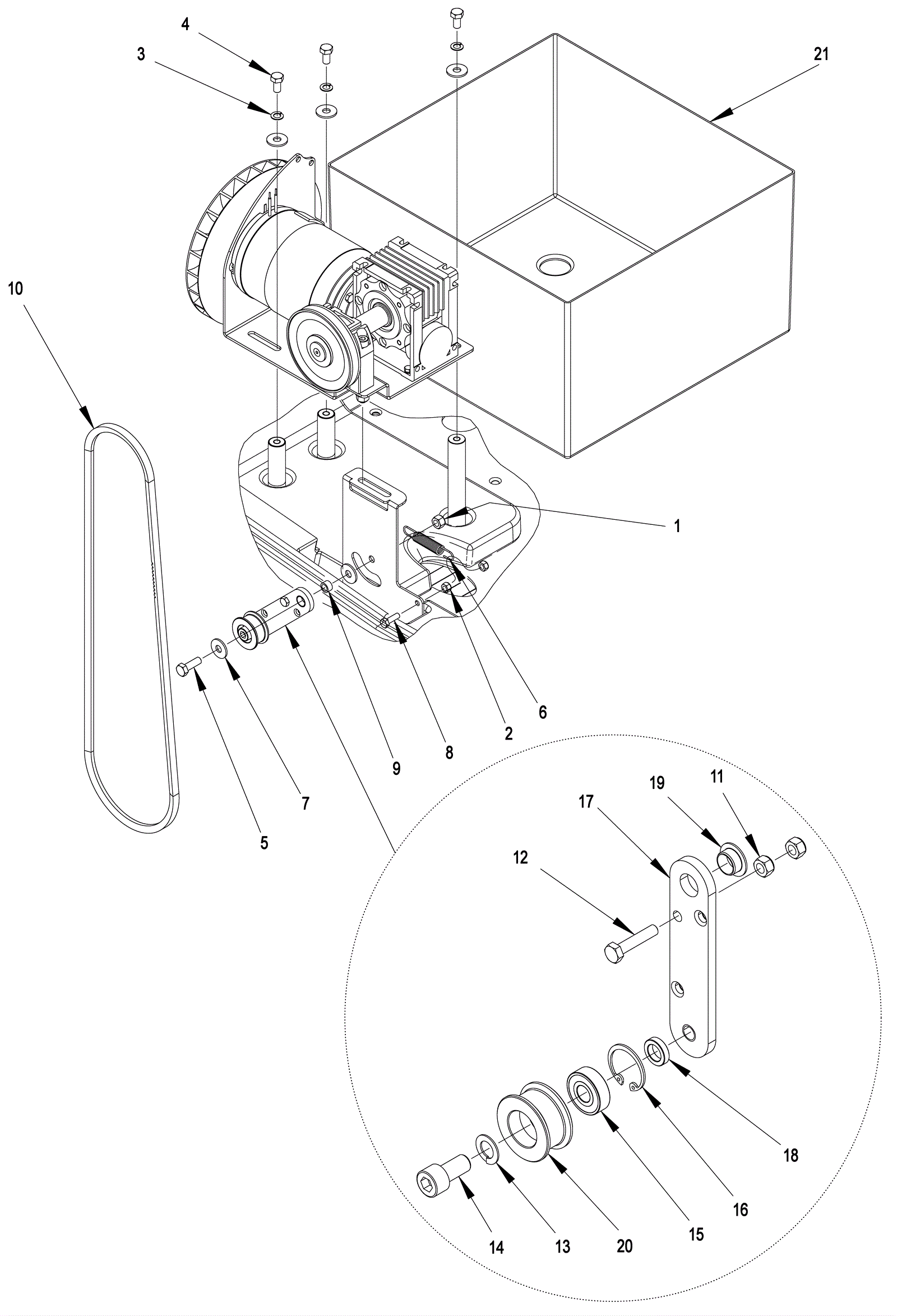

Terra 3700B Transmission Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8213 Transmission hardware assembly $74.86 1 (nut) usually ships 1-5 days
2 270-8213 Transmission hardware assembly $74.86 2 (nut) usually ships 1-5 days
3 270-8213 Transmission hardware assembly $74.86 3 (washer) usually ships 1-5 days
4 270-8213 Transmission hardware assembly $74.86 3 (screw) usually ships 1-5 days
5 270-8213 Transmission hardware assembly $74.86 1 (screw) usually ships 1-5 days
6 272-8242 Spring $13.76 1 usually ships 1-5 days
7 270-8213 Transmission hardware assembly $74.86 5 (washer) usually ships 1-5 days
8 270-8213 Transmission hardware assembly $74.86 1 (screw) usually ships 1-5 days
9 270-8213 Transmission hardware assembly $74.86 1 (spacer) usually ships 1-5 days
10 272-5706 Belt (OBSOLETE) $42.79 1 usually ships 17-28 days
11 270-8213 Transmission hardware assembly $74.86 2 (nut) usually ships 1-5 days
12 270-8213 Transmission hardware assembly $74.86 1 (screw) usually ships 1-5 days
13 270-8213 Transmission hardware assembly $74.86 1 (washer split) usually ships 1-5 days
14 270-8213 Transmission hardware assembly $74.86 1 (screw) usually ships 1-5 days
15 270-8213 Transmission hardware assembly $74.86 1 (ball bearing) usually ships 1-5 days
16 270-8213 Transmission hardware assembly $74.86 1 (retaining ring) usually ships 1-5 days
17 270-8213 Transmission hardware assembly $74.86 1 (belt tensioner arm) usually ships 1-5 days
18 270-8213 Transmission hardware assembly $74.86 1 (spacer) usually ships 1-5 days
19 270-8213 Transmission hardware assembly $74.86 1 (bearing with ange) usually ships 1-5 days
20 270-8213 Transmission hardware assembly $74.86 1 (belt tensioner roller) usually ships 1-5 days
21 270-8214 Battery container (OBSOLETE) $160.38 1 usually ships 1-5 days
KIT 270-8213 Transmission hardware assembly $74.86 1 (includes: 1-9 and 11-20) usually ships 1-5 days
