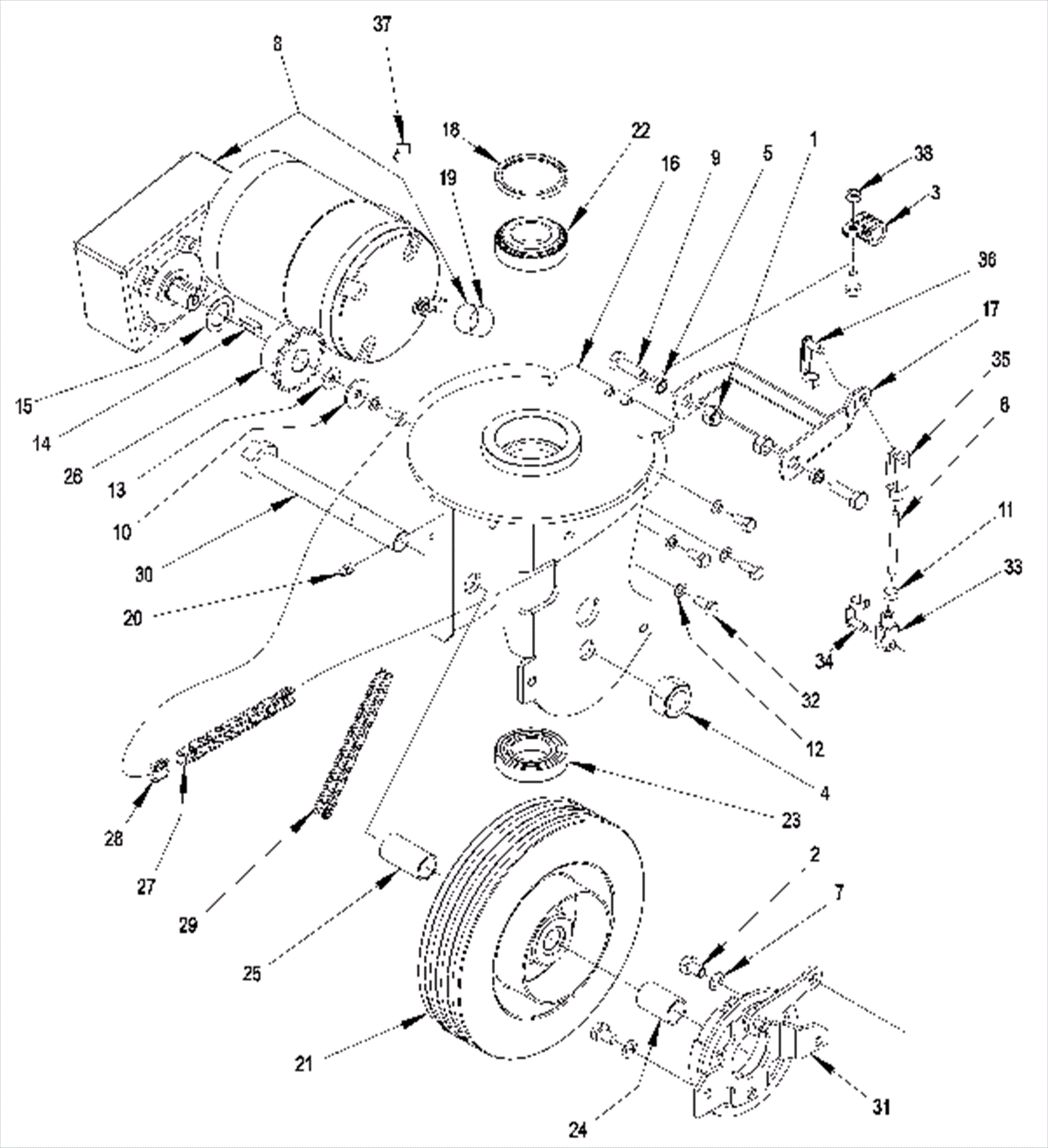

Terra 3700B Drive Assembly - Before June 2006

#PartDescriptionPriceReqNotesAvailability
1 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 2 (nut) usually ships 1-5 days
2 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 2 (screw) usually ships 1-5 days
3 270-8189 Hose clamp $12.31 1 usually ships 1-5 days
4 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 1 (nut) usually ships 1-5 days
5 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 2 (spacer) usually ships 1-5 days
6 N/A Not available Call for price 1 (Tension rod) usually ships 3-26 days
7 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 2 (washer split) usually ships 1-5 days
8 270-8185 24V motor and gearbox assembly $3,368.63 1 usually ships 1-5 days
9 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 2 (screw) usually ships 1-5 days
10 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 1 (washer) usually ships 1-5 days
11 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 1 (nut) usually ships 1-5 days
12 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 5 (washer split) usually ships 1-5 days
13 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 1 (washer) usually ships 1-5 days
14 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 1 (key) usually ships 1-5 days
15 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 1 (spacer) usually ships 1-5 days
16 N/A Not available Call for price 1 (Front wheel support) usually ships 3-26 days
17 N/A Not available Call for price 1 (Bracket) usually ships 3-26 days
18 N/A Not available Call for price 1 (Gasket) usually ships 3-26 days
19 270-8186 Sheath (OBSOLETE) $63.47 1 usually ships 1-5 days
20 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 1 (greaser nipple) usually ships 1-5 days
21 272-7387 Wheel $559.04 1 usually ships 17-28 days
22 272-3534 Ball bearing $36.32 1 usually ships 17-28 days
23 270-8190 Ball bearing $109.81 1 usually ships 1-5 days
24 270-8192 Spacer (OBSOLETE) $9.90 1 usually ships 17-28 days
25 270-8193 Spacer (OBSOLETE) $8.80 1 usually ships 17-28 days
26 270-8194 Pinion $172.76 1 usually ships 17-28 days
27 272-5701 Chain $67.65 1 usually ships 1-5 days
28 270-8198 Master link (OBSOLETE) $11.69 1 (included with chain and not sold separately) usually ships 17-28 days
29 270-0853 Chain (35 links) $87.54 1 usually ships 17-28 days
30 270-8196 Pin $37.40 1 usually ships 1-5 days
31 270-8197 Brake $206.91 1 usually ships 1-5 days
32 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 6 (screw) usually ships 1-5 days
33 272-5702 Clevis $10.01 1 usually ships 1-5 days
34 270-8161 Clip $11.19 1 usually ships 1-5 days
35 472-1423 CLEVIS M6X24 GALV. DIN71752 PK $21.57 1 usually ships 17-28 days
36 172-3779 Clip $9.42 1 usually ships 1-5 days
37 272-8286 Carbon brush kit (pkg of 4) $199.52 4 usually ships 17-28 days
38 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 1 (nut) usually ships 1-5 days
KIT 272-5703 Drive assembly hardware kit (OBSOLETE) $42.68 1 (includes: 1, 2, 4, 5, 7, 9, 10-15, 20, 32 and 38) usually ships 1-5 days
