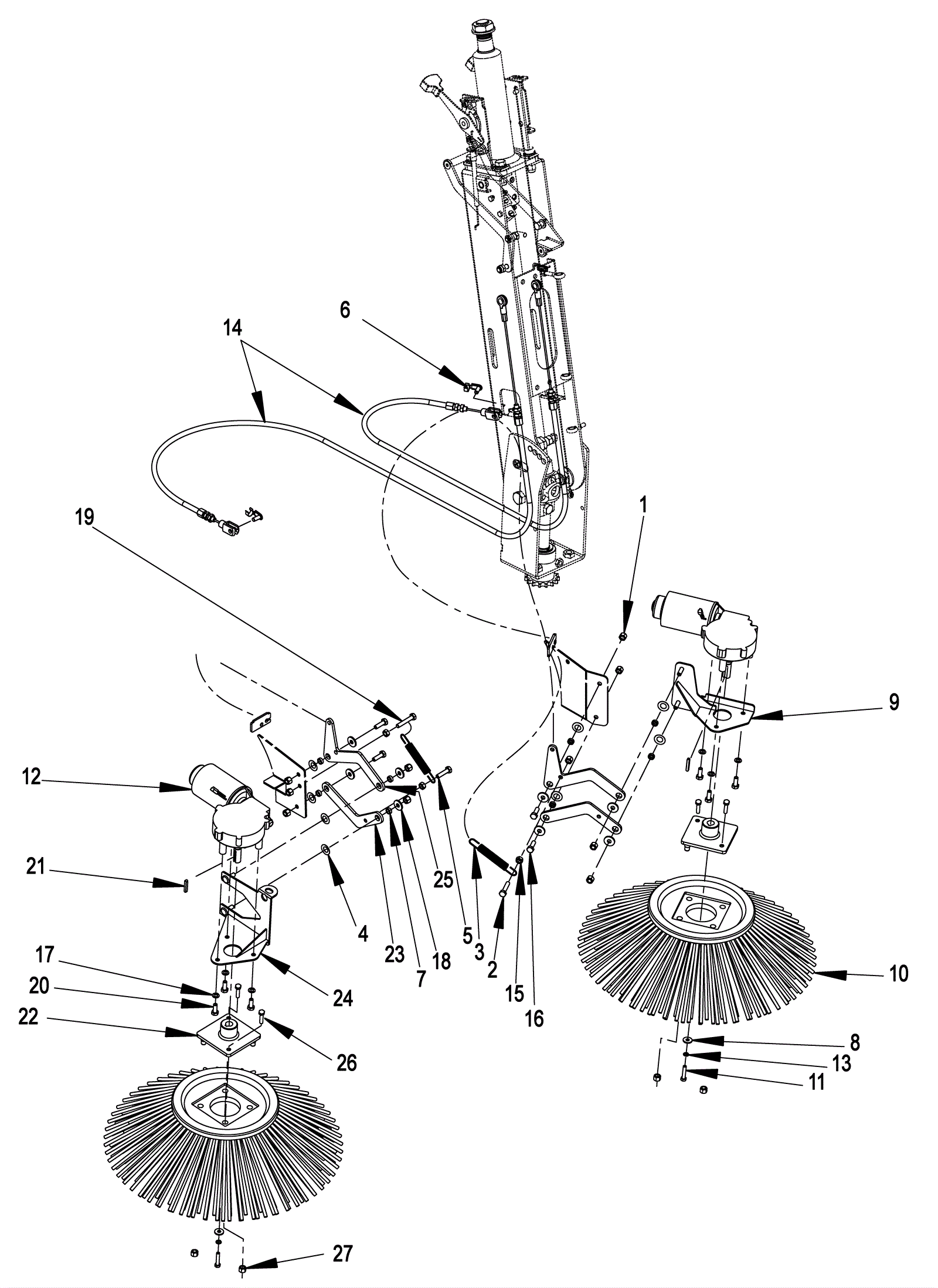

Terra 3700B Side Broom Assembly - After June 2006

#PartDescriptionPriceReqNotesAvailability
1 270-8166 Side broom hardware assembly $473.51 10 (nut) usually ships 1-5 days
2 270-8166 Side broom hardware assembly $473.51 1 (screw) usually ships 1-5 days
3 172-3700 Spring $13.76 2 usually ships 17-28 days
4 272-5889 Washer $13.76 8 ships same day
5 270-8166 Side broom hardware assembly $473.51 1 (screw) usually ships 1-5 days
6 270-8161 Clip $11.19 2 usually ships 1-5 days
7 270-8166 Side broom hardware assembly $473.51 8 (spacer) usually ships 1-5 days
8 270-8166 Side broom hardware assembly $473.51 2 (washer) usually ships 1-5 days
9 270-8167 Side brush bracket $106.15 1 usually ships 1-5 days
10a 272-5573 Nylon side broom $176.52 2 ships same day
10b 172-3669 Polypropelene side broom $160.86 2 ships same day
10c 172-3670 Steel mix side broom $222.53 2 usually ships 17-28 days
10d 272-5698 Side broom natual fiber (OBSOLETE) $32.56 2 usually ships 1-5 days
11 270-8166 Side broom hardware assembly $473.51 2 (screw) usually ships 1-5 days
12 272-8861 24V side brush motor $681.45 2 usually ships 17-28 days
13 270-8166 Side broom hardware assembly $473.51 2 (washer) usually ships 1-5 days
14 270-8168 Side brush cable $100.32 2 usually ships 1-5 days
15 270-8166 Side broom hardware assembly $473.51 3 (nut) usually ships 1-5 days
16 270-8166 Side broom hardware assembly $473.51 4 (screw) usually ships 1-5 days
17 270-8166 Side broom hardware assembly $473.51 6 (washer) usually ships 1-5 days
18 270-8166 Side broom hardware assembly $473.51 8 (washer) usually ships 1-5 days
19 270-8166 Side broom hardware assembly $473.51 1 (screw) usually ships 1-5 days
20 270-8166 Side broom hardware assembly $473.51 6 (screw) usually ships 1-5 days
21 270-8166 Side broom hardware assembly $473.51 2 (key) usually ships 1-5 days
22 270-8169 Side brush hub $19.98 2 usually ships 17-28 days
23 172-3678 Side broom arm $16.25 2 usually ships 17-28 days
24 270-8170 Side brush bracket $93.06 1 usually ships 1-5 days
25 270-8171 Side brush arm $34.96 2 usually ships 1-5 days
26 270-8166 Side broom hardware assembly $473.51 4 (screw) usually ships 1-5 days
27 270-8166 Side broom hardware assembly $473.51 4 (nut) usually ships 1-5 days
KIT 270-8166 Side broom hardware assembly $473.51 1 (includes: 1, 2, 5, 7, 8, 11, 13, 15-21, 26 and 27) usually ships 1-5 days
