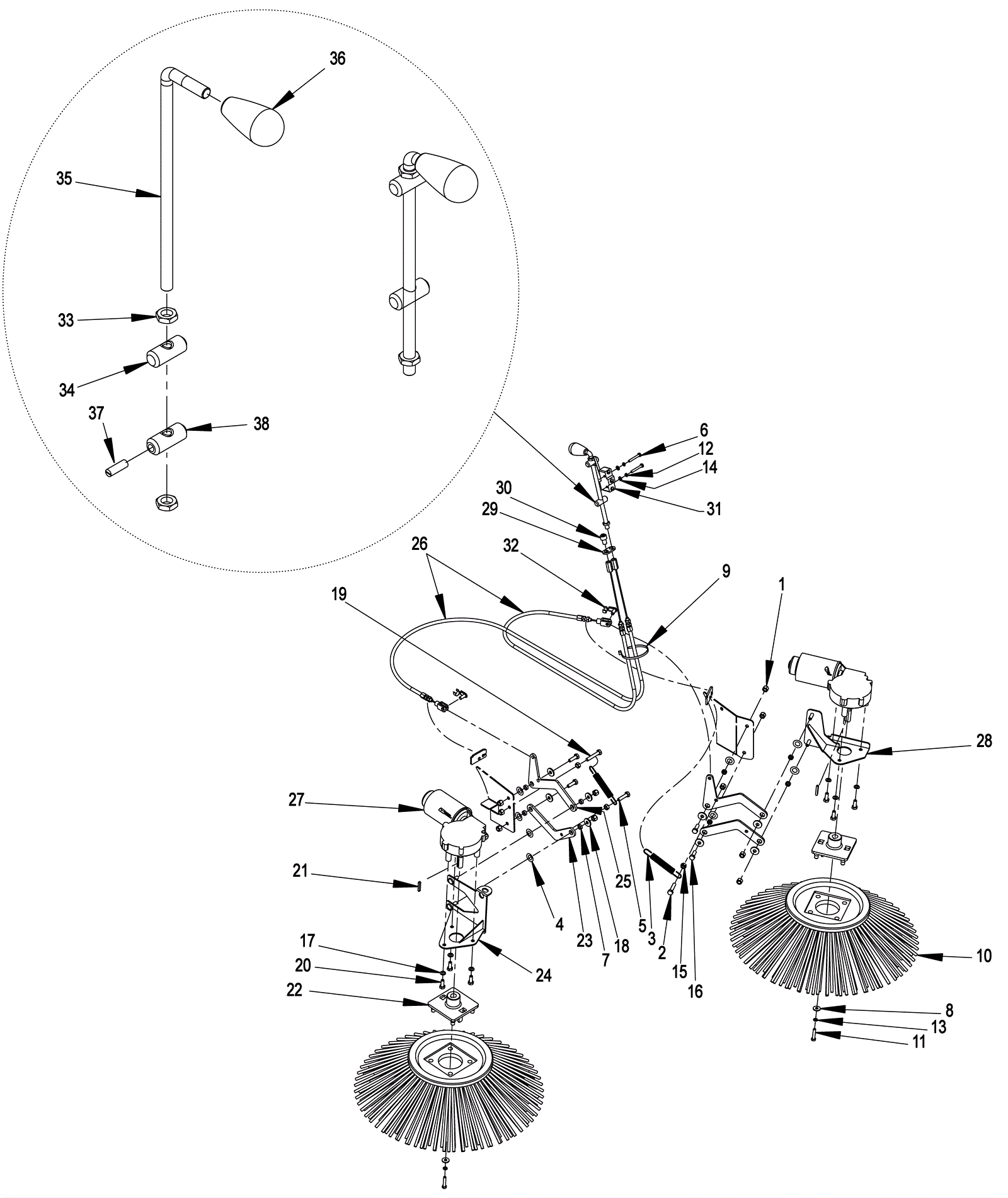

Terra 3700B Side Broom Assembly - Before June 2006

#PartDescriptionPriceReqNotesAvailability
1 272-5697 Side broom hardware kit (OBSOLETE) $57.31 10 (nut) usually ships 1-5 days
2 272-5697 Side broom hardware kit (OBSOLETE) $57.31 1 (screw) usually ships 1-5 days
3 172-3700 Spring $13.76 2 usually ships 17-28 days
4 272-5889 Washer $13.76 8 ships same day
5 272-5697 Side broom hardware kit (OBSOLETE) $57.31 1 (screw) usually ships 1-5 days
6 272-5697 Side broom hardware kit (OBSOLETE) $57.31 2 (screw) usually ships 1-5 days
7 272-5697 Side broom hardware kit (OBSOLETE) $57.31 8 (spacer) usually ships 1-5 days
8 272-5697 Side broom hardware kit (OBSOLETE) $57.31 2 (washer) usually ships 1-5 days
9 272-5697 Side broom hardware kit (OBSOLETE) $57.31 1 (clamp) usually ships 1-5 days
10a 272-5573 Nylon side broom $176.52 2 ships same day
10b 172-3669 Polypropelene side broom $160.86 2 ships same day
10c 172-3670 Steel mix side broom $222.53 2 usually ships 17-28 days
10d 172-3671 Natural fiber side broom $183.90 2 usually ships 17-28 days
11 272-5697 Side broom hardware kit (OBSOLETE) $57.31 2 (screw) usually ships 1-5 days
12 272-5697 Side broom hardware kit (OBSOLETE) $57.31 2 (washer) usually ships 1-5 days
13 272-5697 Side broom hardware kit (OBSOLETE) $57.31 2 (washer) usually ships 1-5 days
14 272-5697 Side broom hardware kit (OBSOLETE) $57.31 2 (washer) usually ships 1-5 days
15 272-5697 Side broom hardware kit (OBSOLETE) $57.31 3 (nut) usually ships 1-5 days
16 272-5697 Side broom hardware kit (OBSOLETE) $57.31 4 (screw) usually ships 1-5 days
17 272-5697 Side broom hardware kit (OBSOLETE) $57.31 6 (washer) usually ships 1-5 days
18 272-5697 Side broom hardware kit (OBSOLETE) $57.31 8 (washer) usually ships 1-5 days
19 272-5697 Side broom hardware kit (OBSOLETE) $57.31 1 (screw) usually ships 1-5 days
20 272-5697 Side broom hardware kit (OBSOLETE) $57.31 6 (screw) usually ships 1-5 days
21 272-5697 Side broom hardware kit (OBSOLETE) $57.31 2 (key) usually ships 1-5 days
22 172-3677 Side broom hub (OBSOLETE) $31.83 2 usually ships 17-28 days
23 172-3678 Side broom arm $16.25 2 usually ships 17-28 days
24 172-3679 Broom bracket $77.00 1 usually ships 1-5 days
25 270-8171 Side brush arm $34.96 2 usually ships 1-5 days
26 272-5694 Side broom cable (OBSOLETE) $136.40 2 usually ships 17-28 days
27 272-8861 24V side brush motor $681.45 2 usually ships 17-28 days
28 270-8167 Side brush bracket $106.15 1 usually ships 1-5 days
29 N/A Not available Call for price 1 (Plate) usually ships 3-26 days
30 272-5697 Side broom hardware kit (OBSOLETE) $57.31 1 (screw) usually ships 1-5 days
31 272-8314 250V microswitch $69.01 1 usually ships 17-28 days
32 270-8161 Clip $11.19 2 usually ships 1-5 days
33 272-5697 Side broom hardware kit (OBSOLETE) $57.31 2 (nut) usually ships 1-5 days
34 272-2009 Pin $18.08 1 ships same day
35 272-5695 Pin $28.16 1 usually ships 1-5 days
36 272-5696 Knob $10.23 1 usually ships 1-5 days
37 N/A Not available Call for price 1 (Dowel) usually ships 3-26 days
38 N/A Not available Call for price 1 (Side broom pin) usually ships 3-26 days
KIT 272-5697 Side broom hardware kit (OBSOLETE) $57.31 1 (includes: 1, 2, 5-9, 11-21, 30 and 33) usually ships 1-5 days
