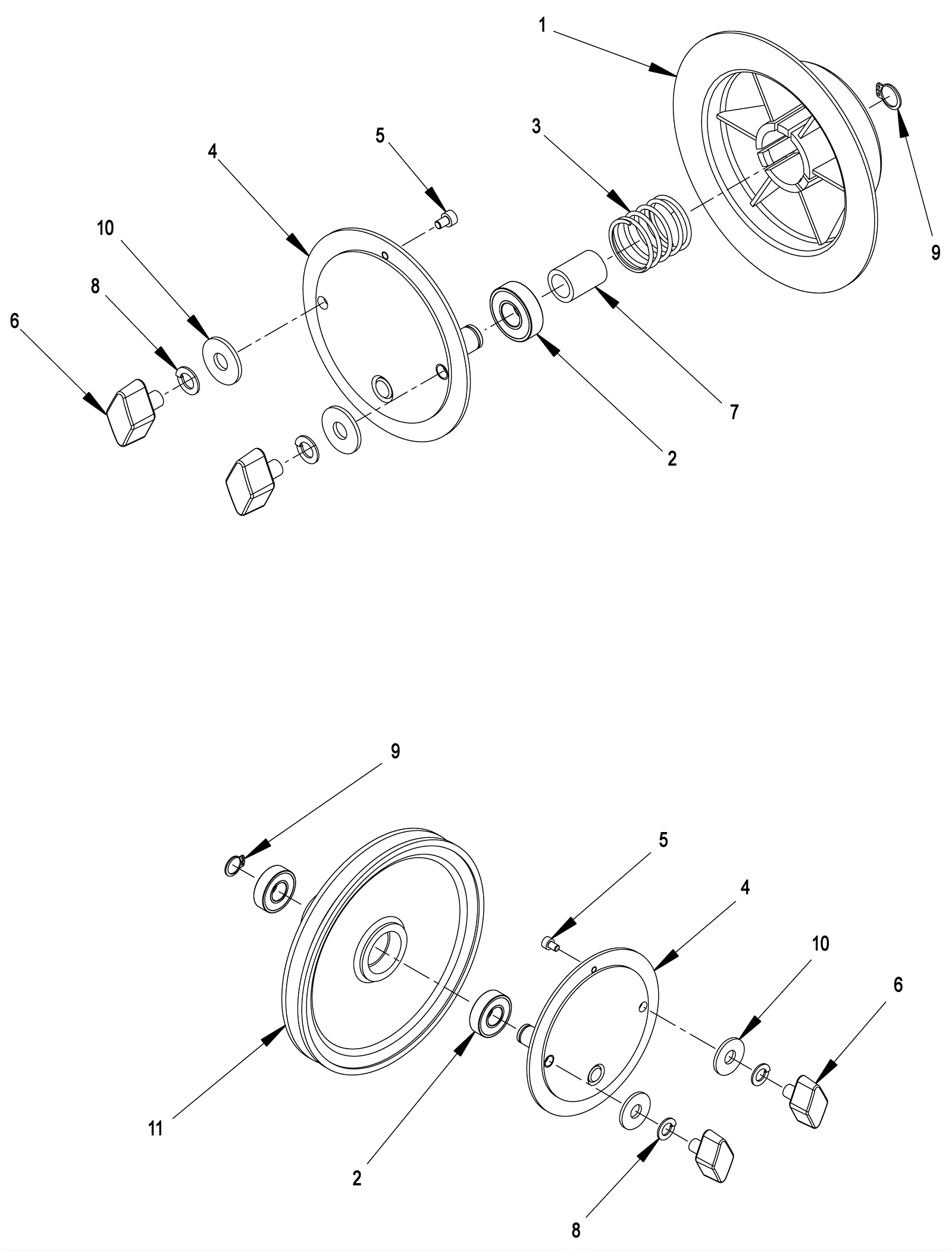

Terra 3700B Right and Left Hub Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8164 Left side hub assembly $436.79 1 (Left hub) usually ships 17-28 days
2a 270-8164 Left side hub assembly $436.79 3 (Ball bearing) usually ships 17-28 days
2b 270-8165 Right side hub assembly $452.27 3 (Ball bearing) usually ships 17-28 days
3 270-8164 Left side hub assembly $436.79 1 (Spring) usually ships 17-28 days
4a 270-8164 Left side hub assembly $436.79 2 (Pin) usually ships 17-28 days
4b 270-8165 Right side hub assembly $452.27 2 (Pin) usually ships 17-28 days
5a 270-8164 Left side hub assembly $436.79 2 (Screw) usually ships 17-28 days
5b 270-8165 Right side hub assembly $452.27 2 (Screw) usually ships 17-28 days
6a 270-8164 Left side hub assembly $436.79 4 (Knob) usually ships 17-28 days
6b 270-8165 Right side hub assembly $452.27 4 (Knob) usually ships 17-28 days
7 270-8164 Left side hub assembly $436.79 1 (Spacer) usually ships 17-28 days
8a 270-8164 Left side hub assembly $436.79 4 (Washer) usually ships 17-28 days
8b 270-8165 Right side hub assembly $452.27 4 (Washer) usually ships 17-28 days
9a 270-8164 Left side hub assembly $436.79 2 (Retaining ring) usually ships 17-28 days
9b 270-8165 Right side hub assembly $452.27 2 (Retaining ring) usually ships 17-28 days
10a 270-8164 Left side hub assembly $436.79 4 (Washer) usually ships 17-28 days
10b 270-8165 Right side hub assembly $452.27 4 (Washer) usually ships 17-28 days
11 270-8165 Right side hub assembly $452.27 1 (Pulley) usually ships 17-28 days
12 270-8164 Left side hub assembly $436.79 1 (includes: 1-10) usually ships 17-28 days
13 270-8165 Right side hub assembly $452.27 1 (includes: 2, 4-6, 8-11) usually ships 17-28 days
