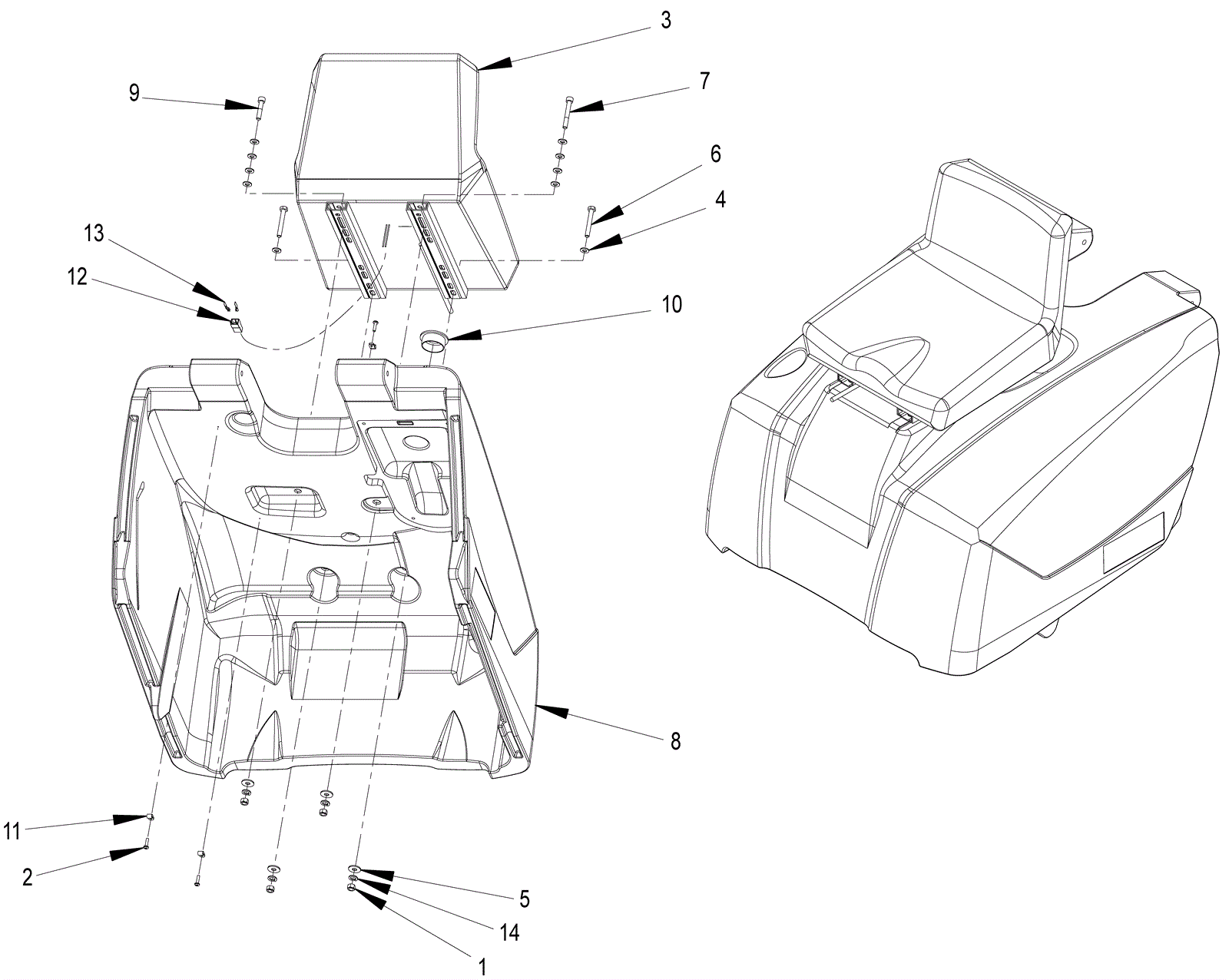

Terra 3700B Bonnet Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8156 Bonnet system hardware assembly $374.00 4 (Nut) usually ships 1-5 days
2 270-8156 Bonnet system hardware assembly $374.00 3 (Screw) usually ships 1-5 days
3a 272-8275 Seat with microswitch $842.34 1 usually ships 17-28 days
3b 272-8418 Microswitch $87.54 1 usually ships 17-28 days
4 270-8156 Bonnet system hardware assembly $374.00 10 (Washer) usually ships 1-5 days
5 270-8156 Bonnet system hardware assembly $374.00 4 (Washer) usually ships 1-5 days
6 270-8156 Bonnet system hardware assembly $374.00 2 (Screw) usually ships 1-5 days
7 270-8156 Bonnet system hardware assembly $374.00 1 (Screw) usually ships 1-5 days
8 272-5693 Rotomolded battery hood $605.44 1 usually ships 1-5 days
9 270-8156 Bonnet system hardware assembly $374.00 1 (Screw) usually ships 1-5 days
10 270-8157 Cap (OBSOLETE) $8.25 1 usually ships 1-5 days
11 270-8156 Bonnet system hardware assembly $374.00 3 (Wable clamp) usually ships 1-5 days
12 270-8159 Terminal (OBSOLETE) $8.47 2 usually ships 1-5 days
13 270-8158 Connector (OBSOLETE) $8.47 1 usually ships 1-5 days
14 270-8156 Bonnet system hardware assembly $374.00 4 (Washer) usually ships 1-5 days
15 270-8156 Bonnet system hardware assembly $374.00 1 (includes: 1, 4-7, 9, 11 and 14) usually ships 1-5 days
