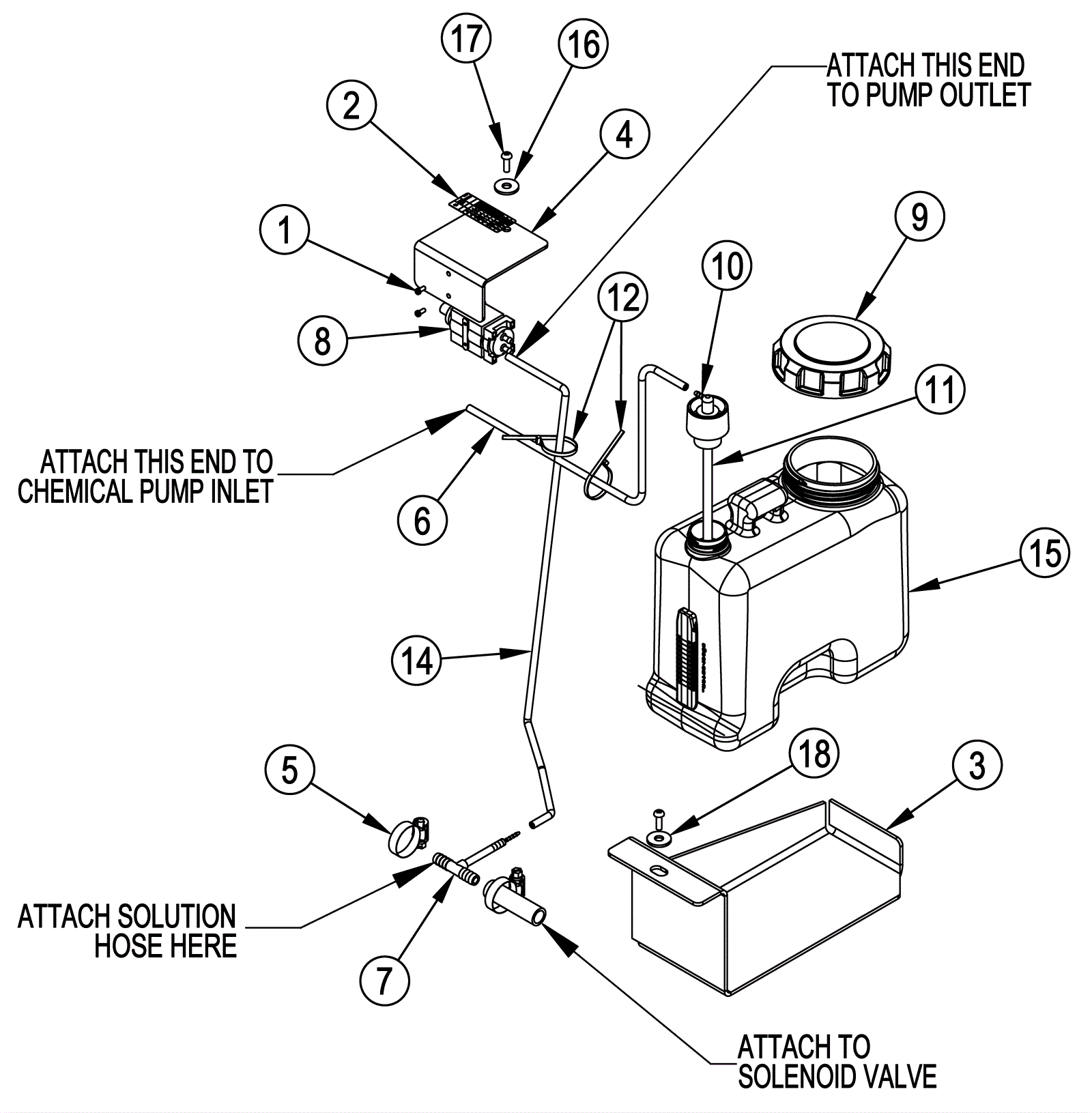

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0100
|
Screw 6-32 x 5/16 round head slotted zinc plated |
2 |
|
|
2 |
272-9827
|
Chemical ratio decal |
1 |
|
|
3 |
272-9828
|
Support bracket |
1 |
|
|
4 |
272-9829
|
Pump mount bracket |
1 |
|
|
5 |
997-2002
|
Hose clamp #6 |
2 |
|
|
6 |
272-9830
|
Hose |
1 |
|
|
7 |
272-8135
|
Tee assembly |
1 |
|
|
8 |
272-2175
|
Chemical pump |
1 |
|
|
9a |
272-2180
|
Solution fill cap |
1 |
(before August 2017) |
|
9b |
272-2180
|
Solution fill cap |
1 |
(after August 2017) |
|
10 |
272-2182
|
Dry break cap |
1 |
|
|
11 |
272-2184
|
Dry break insert |
1 |
|
|
12 |
172-6196
|
Cable tie |
2 |
|
|
13 |
172-7747
|
Insulated tubing |
1 |
(before August 2017) |
|
14 |
272-9831
|
Hose |
1 |
|
|
15a |
272-9833
|
Chemical bottle assembly |
1 |
(optional) (includes 9, 11 and 15b) (EcoFlex) |
|
15b |
272-9832
|
Chemical bottle assembly |
1 |
|
|
16 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
17 |
999-1257
|
Screw M6-1 x 16mm pan head Phillips |
2 |
|
|
18 |
172-0548
|
Washer 17/64 x 47/64 flat stainless steel |
1 |
|
|
