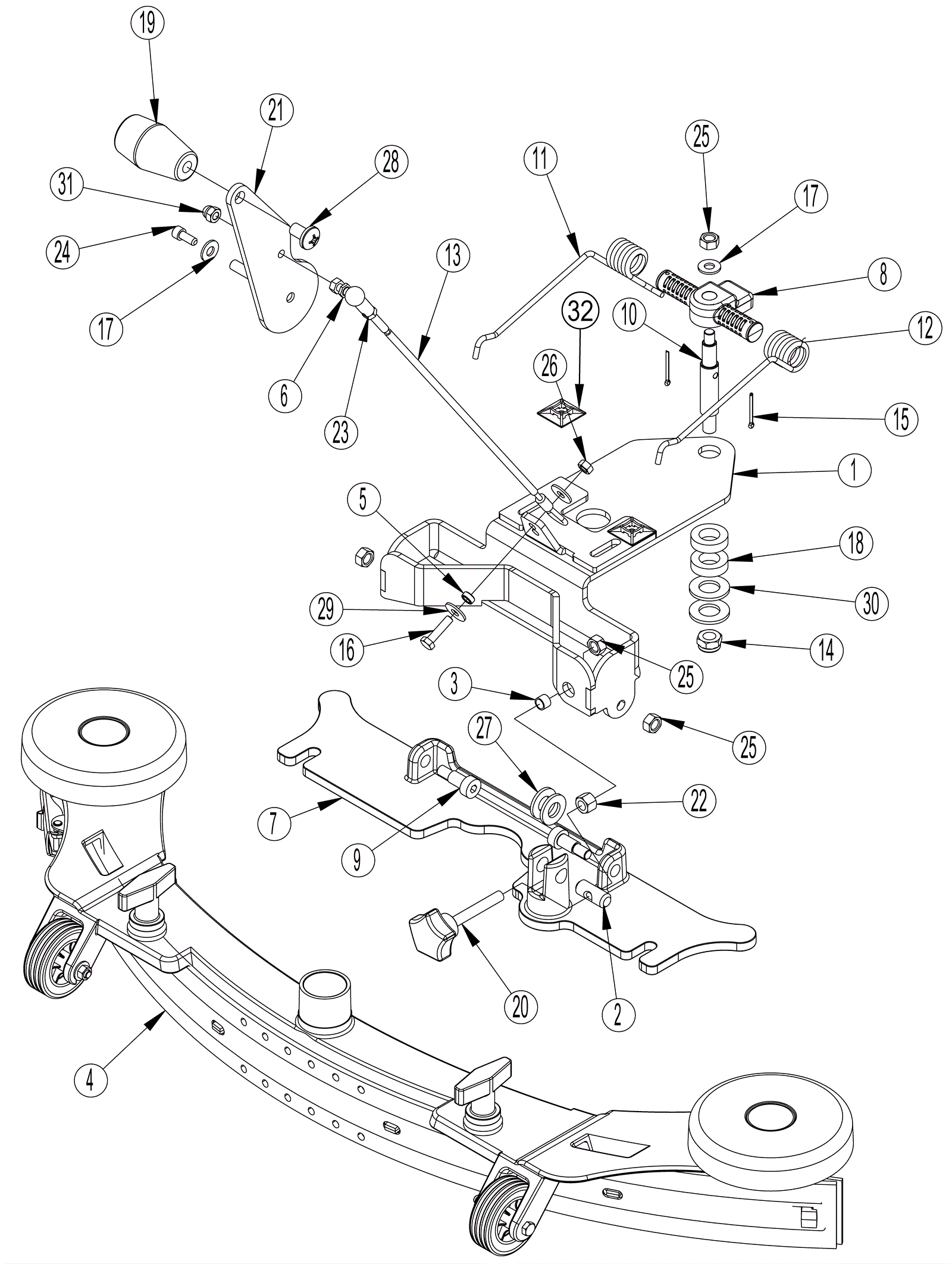

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
270-0223
|
Support plate |
1 |
|
|
2 |
272-2009
|
Pin |
1 |
|
|
3 |
272-2007
|
Spacer |
1 |
|
|
4a |
272-7269
|
Squeegee assembly |
1 |
(26 and 28 inch) |
|
4b |
272-7270
|
Squeegee assembly |
1 |
(32 and 34 inch) |
|
5 |
172-3668
|
Spacer 6 1/2 X 10 X 4 1/2 |
1 |
|
|
6 |
272-7164
|
Elbow joint |
1 |
|
|
7 |
272-7000
|
Squeegee mounting bracket kit |
1 |
|
|
8 |
270-0114
|
Spring support |
1 |
|
|
9 |
172-4807
|
Bolt M10 x 16mm shoulder |
2 |
|
|
10 |
270-0395
|
Squeegee pin |
1 |
|
|
11 |
172-4776
|
Right hand squeegee torsion spring |
1 |
|
|
12 |
172-4777
|
Spring |
1 |
|
|
13 |
270-0222
|
Lift cable |
1 |
|
|
14 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
1 |
|
|
15 |
170-3541
|
Cotter pin |
2 |
|
|
17 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
18 |
170-0213
|
Nylon washer |
2 |
|
|
19 |
170-7402
|
Squeegee lift knob |
1 |
|
|
20 |
270-0226
|
Knob |
1 |
|
|
21 |
270-0228
|
Squeegee lift lever |
1 |
|
|
22 |
999-1424
|
Nut M8-1.25 hex stainless steel |
1 |
|
|
23 |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
|
|
24 |
270-0195
|
Screw M6 x 15mm pan head phillips stainless steel |
1 |
|
|
25 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
26 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
27 |
272-9900
|
Washer flat |
2 |
|
|
28 |
999-0587
|
Screw 3/8-16 x 5/8 round head slotted zinc |
1 |
|
|
29 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
30 |
170-1397
|
Washer nylon |
2 |
|
|
31 |
999-0673
|
Nut M6-1 acorn zinc plated |
1 |
|
|
32 |
172-4784
|
Wire tie holder |
2 |
|
|
