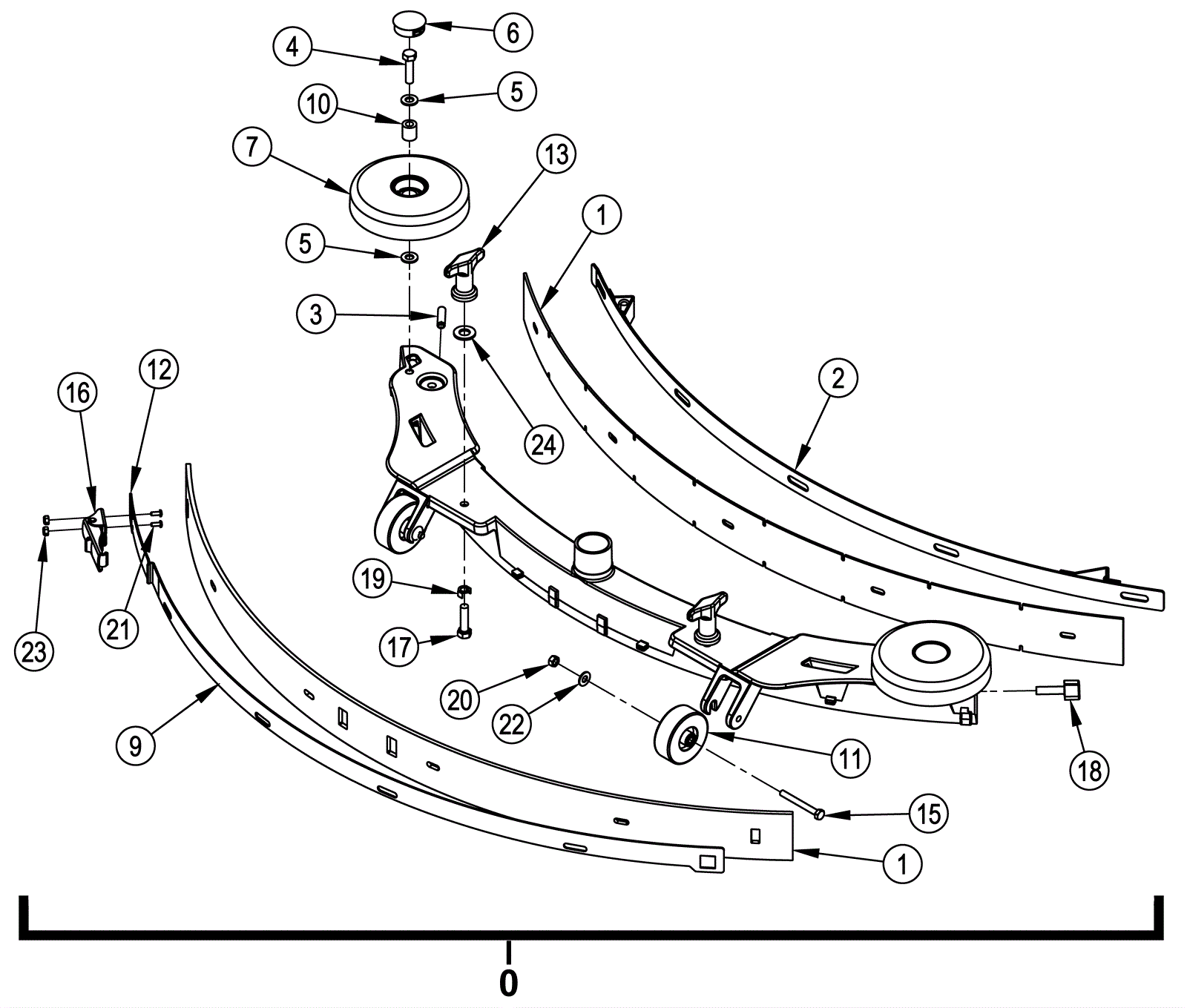

Squeegee Assembly

#PartDescription ReqNotesAvailability
0a 272-7269 Squeegee assembly 1 (26 and 28 inch models)
0b 272-7270 Squeegee assembly 1 (32 and 34 inch models)
1a 272-6575 Squeegee blade kit gum rubber 1 (26 and 28 inch models)
1b 994-0072 Squeegee blade kit 35 inch gum rubber 1 (26 and 28 inch models)
1c 272-9916 Squeegee blade kit gum rubber 1 (32 and 34 inch models)
1d 272-6576 Squeegee blade kit linatex 1 (26 and 28 inch models)
1e 372-1167 Squeegee blade kit linatex 1 (32 and 34 inch models)
1f 270-0803 Squeegee blade kit 35 inch urethane 1 (26 and 28 inch models)
1g 994-0074 Squeegee blade kit 35 inch urethane 1 (26 and 28 inch models)
1h 272-7419 Squeegee blade kit urethane 1 (32 and 34 inch models)
1i 991-3125 BLADE KIT- RED 32-34 1 (NON-OEM)
2a 270-0248 35 inch squeegee band front (BOOST 28) 1 (26 and 28 inch models)
2b 270-0249 41 inch squeegee band front 1 (32 and 34 inch models)
3 999-9112 Screw M8-1.25 x 30mm set stainless steel 1
4 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 2
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
6 272-9868 Button plug 2
7 272-7268 Wheel 2
9a 272-9897 Rear squeegee strap 1 (26 and 28 inch models)
9b 272-9917 Rear squeegee strap 1 (32 and 34 inch models) (before August 2017)
9c 272-9917 Rear squeegee strap 1 (32 and 34 inch models) (after July 2017)
10 272-9882 Bushing 2
11 172-4793 Squeegee wheel kit 2
12 272-9898 Rear latch strap 1
13 172-4099 Nut 5/16-18 thumb 2
15 999-9093 Screw M6-1 x 55mm hex head stainless steel 2
16 272-7124 Squeegee latch 1
17 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated 2
18 270-0243 Knob 1
19 270-0251 Screw shim 2
20 999-0497 Nut M6-1 nylon insert lock stainless steel 2
21 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 2
22 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
23 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
24 472-8250 WASHER-POLYURETHANE-1.25 2
