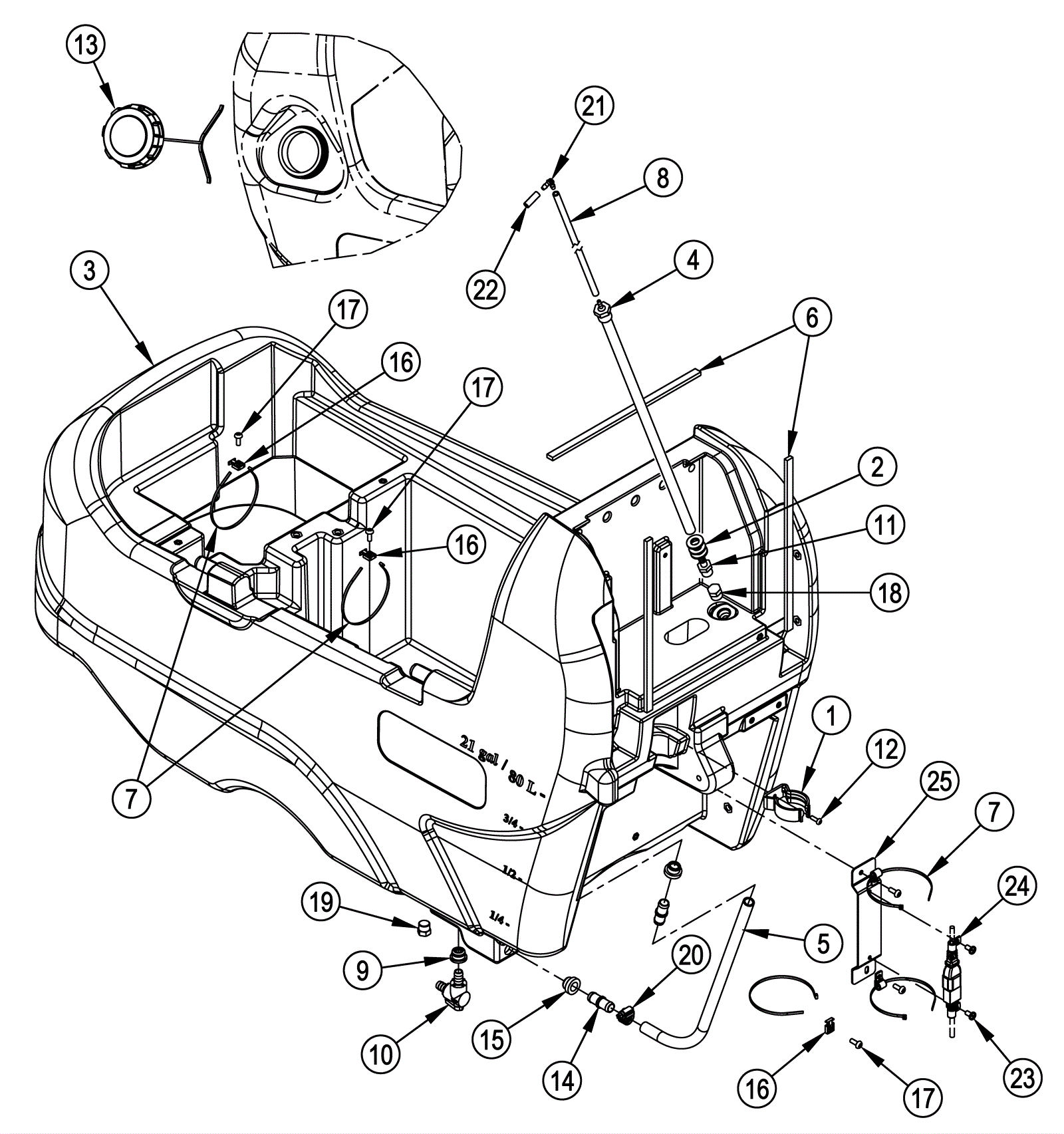

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
172-4857
|
Hose clamp |
1 |
|
|
2 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
3 |
(SC750 and SC800) |
|
3a |
272-9891
|
Solution tank |
1 |
(SC750 and SC750 ST) |
|
3b |
272-9913
|
Solution tank |
1 |
(SC800 and SC800 ST) |
|
4 |
272-9892
|
Pressure sensing tube |
1 |
(SC750 and SC800) |
|
5a |
272-9893
|
Drain hose |
1 |
(SC750 and SC750 ST) (before June 2016) |
|
5b |
272-9914
|
Drain hose |
1 |
(SC800 and SC800 ST) (before June 2016) |
|
5c |
472-8020
|
HOSE-PVC-5/8X19 |
1 |
(after May 2016) |
|
6 |
272-9894
|
Gasket |
3 |
(SC750 and SC800) |
|
7 |
997-2103
|
8 inch cable tie |
4 |
(the quantity of these parts increased by (1 each) and were implemented in production as of November 6th, 2014) |
|
8a |
272-9895
|
Hose (OBSOLETE) |
1 |
(before June 2016) (hose 272-9895 is obsolete. To replace 272-9895, please order Solution Level Kit 472-4570) |
|
8b |
472-4568
|
HOSE |
1 |
(after May 2016) (SC750, SC800) (hose 272-9895 is obsolete. To replace 272-9895, please order Solution Level Kit 472-4570) |
|
9 |
272-8076
|
Gasket |
1 |
|
|
10 |
170-5402
|
Manual solution valve |
1 |
|
|
11 |
181-0259
|
Adaptor PP-HS |
1 |
(SC750 and SC800) |
|
12a |
999-1182
|
Screw M5-.8 x 16mm pan head slotted stainless steel |
1 |
(before June 2016) |
|
12b |
999-9109
|
Screw M5-.8 x 12mm pan head phillips stainless steel |
1 |
(after May 2016) |
|
13a |
272-9352
|
Raw cap with tether |
1 |
(before June 2016) |
|
13b |
272-9352
|
Raw cap with tether |
1 |
(after May 2016) |
|
14a |
272-9896
|
Straight connector |
2 |
(before June 2016) |
|
14b |
272-9896
|
Straight connector |
2 |
(after May 2016) |
|
15 |
170-1387
|
Bushing fitting |
2 |
|
|
16 |
170-7388
|
1/4 tab |
4 |
(the quantity of these parts increased by (1 each) and were implemented in production as of November 6th, 2014) |
|
17 |
272-8931
|
Screw M6-1 x 10mm pan head |
4 |
(the quantity of these parts increased by (1 each) and were implemented in production as of November 6th, 2014) |
|
18 |
272-9915
|
Pipe plug |
1 |
(SC750 ST and SC800 ST) |
|
19 |
272-9961
|
Pipe plug |
1 |
(SC800 and SC800 ST) |
|
20a |
997-2005
|
Hose clamp |
1 |
(before June 2016) |
|
20b |
209-0604
|
Hose clamp |
1 |
(after May 2016) |
|
21 |
472-4569
|
ELBOW 3/16 X 3/16 POLY |
1 |
(after May 2016) (hose 272-9895 is obsolete. To replace 272-9895, please order Solution Level Kit 472-4570) |
|
22 |
472-4567
|
HOSE |
1 |
(after May 2016) (hose 272-9895 is obsolete. To replace 272-9895, please order Solution Level Kit 472-4570) |
|
23 |
999-1129
|
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
2 |
(after May 2016) |
|
24 |
172-9530
|
Cable clamp |
4 |
(after May 2016) |
|
25 |
472-7868
|
POWER CORD BRACKET |
1 |
(after May 2016) |
|
