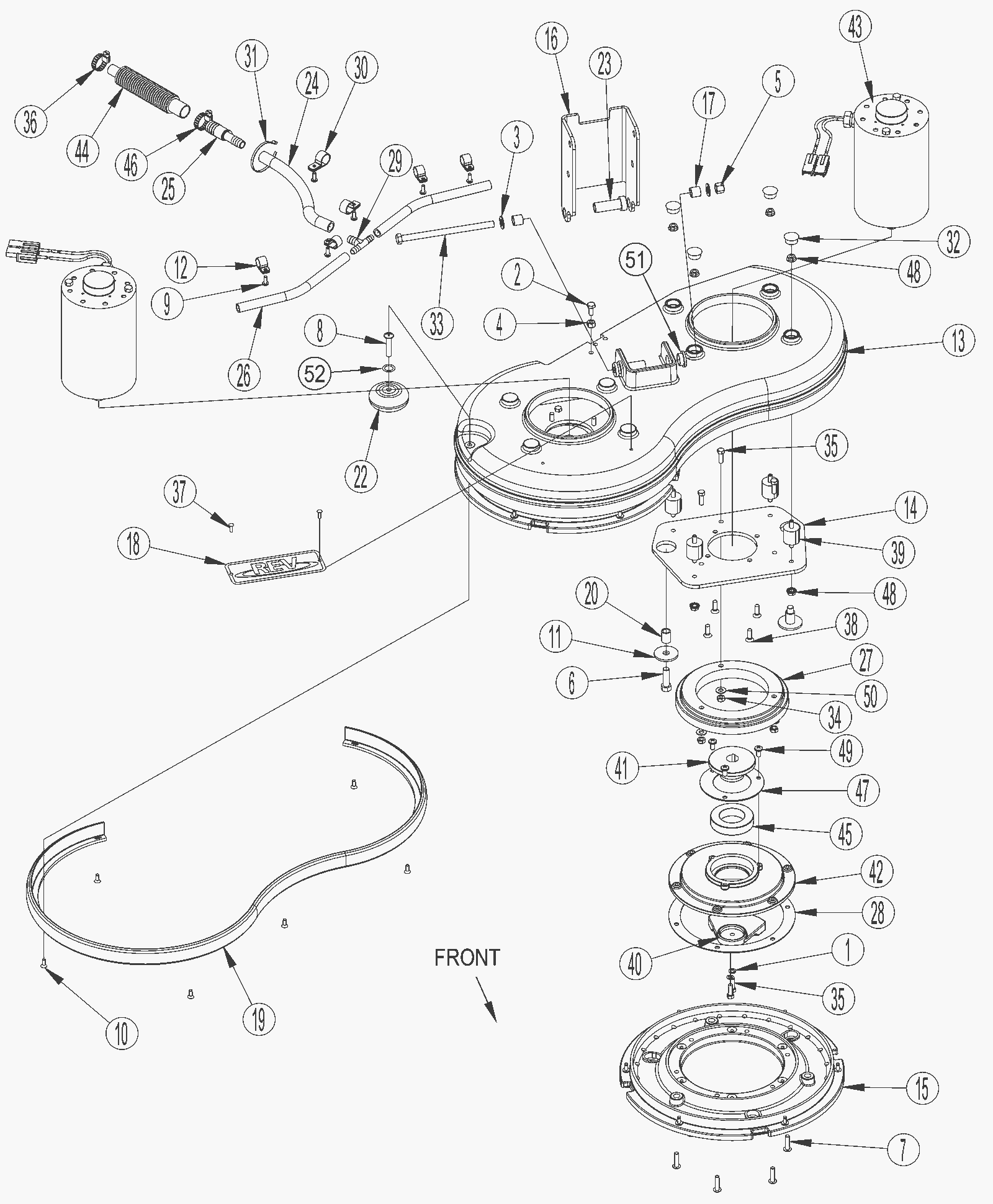

REV Scrub Deck Assembly (Before March 2014)

#PartDescription ReqNotesAvailability
1 272-9934 REV deck hardware kit 4 (Washer 1/4 helical spring lock)
2 272-9934 REV deck hardware kit 1 (Screw 1/4-20 x .62mm hex head)
3 999-0120 Washer 3/8 SAE flat 2 (included in REV deck hardware kit)
4 999-0190 Nut 1/4-20 hex plain finish 1 (included in REV deck hardware kit)
5 999-1482 Nut 3/8-16 nylon lock stainless steel 1 (included in REV deck hardware kit)
6a 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4 (included in stabilizer stud kit)
6b 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel 4 (included in REV deck hardware kit)
7a 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 12 (included in pad driver kit)
7b 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 12 (included in REV deck hardware kit)
8 272-9934 REV deck hardware kit 1 (Screw 5/16-18 x 1 1/2 pan head phillips SS)
9a 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 6 (included in solution hose kit)
9b 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 6 (included in REV deck hardware kit)
10a 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated 6 (included in bumper kit)
10b 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated 6 (included in REV deck hardware kit)
11a 272-9929 Stabilizer stud kit 6 (Washer flat)
11b 272-9934 REV deck hardware kit 6 (Washer flat)
12 272-9930 Solution hose kit 4 (P-clamp)
13 272-9938 REV deck 1
14 272-6545 Motor plate 2
15 272-9933 Pad driver kit 2 (Pad driver assembly)
16 472-4584 BRACKET-DECK LINKAGE 1
17 272-9941 Nylon bushing 2
18 272-9942 REV decal 1
19 272-9932 Bumper kit 1 (Bumper)
20 272-9929 Stabilizer stud kit 4 (Sleeve)
22 272-9944 Wheel 1
23 272-9945 Bushing 2
24 272-9930 Solution hose kit 1 (PVC hose)
25 272-9930 Solution hose kit 1 (Coupler barb)
26 272-9930 Solution hose kit 2 (PVC hose)
27 272-9935 Splash guard kit 2 (Splash shield)
28 272-9936 Driver assembly 2 (Gasket driver)
29 272-9930 Solution hose kit 1 (Tee barb)
30 272-9930 Solution hose kit 2 (P-clamp)
31 272-9930 Solution hose kit 1 (Cable tie)
32 172-1803 Plug 8
33 272-9934 REV deck hardware kit 1 (Screw 3/8-16 x 6mm)
34a 999-0609 Nut 1/4-20 hex stainless steel 6 (included in REV deck hardware kit)
34b 999-0609 Nut 1/4-20 hex stainless steel 6 (included in splash guard kit)
35a 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 10 (included in REV deck hardware kit)
35b 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 10 (included in splash guard kit)
36 997-2002 Hose clamp #6 1
37 272-9934 REV deck hardware kit 2 (Rivet)
38 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel 8 (included in REV deck hardware kit)
39 272-9928 Isolator kit 8 (Isolator)
40 272-9946 Counter weight 2
41 272-9937 Eccentric kit 2 (Eccentric)
42 272-9947 Motor driver 2
43a 272-9948 24V brush motor 2
43b 172-8951 Carbon brush and spring kit 2
43c 170-0009 Connector housing 2
43d 272-9949 Connector contact 2
44 170-0033 Solution hose 1
45 270-0065 Bearing 2
46 997-2002 Hose clamp #6 1
47 272-9936 Driver assembly 2 (Bearing retainer)
48a 272-9928 Isolator kit 16 (serrated nut)
48b 272-9934 REV deck hardware kit 16 (serrated nut)
49a 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 6 (included in REV deck hardware kit)
49b 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 6 (included in driver kit)
50a 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6 (included in REV deck hardware kit)
50b 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6 (included in splash guard kit)
51 272-1843 Flanged bearing 2
52 272-5215 Washer 17/32 1
N/S 272-9943 Jumper 2
KIT 272-9928 Isolator kit 1 (includes 39 and 48a)
KIT 272-9929 Stabilizer stud kit 1 (includes 6a, 11a and 20)
KIT 272-9930 Solution hose kit 1 (includes 9a, 12, 24-26 and 29-31)
KIT 272-9932 Bumper kit 1 (includes 10a and 19)
KIT 272-9933 Pad driver kit 1 (includes 7a and 15)
KIT 272-9934 REV deck hardware kit 1 (includes 1-5, 6b, 7b, 8, 9b, 10b, 11b, 33, 34a, 35, 37, 38, 48b, 49a and 50a)
KIT 272-9935 Splash guard kit 1 (includes 27, 34b, 35b and 50b)
KIT 272-9936 Driver assembly 1 (includes 28, 47 and 49b)
KIT 272-9937 Eccentric kit 1 (includes 41)
