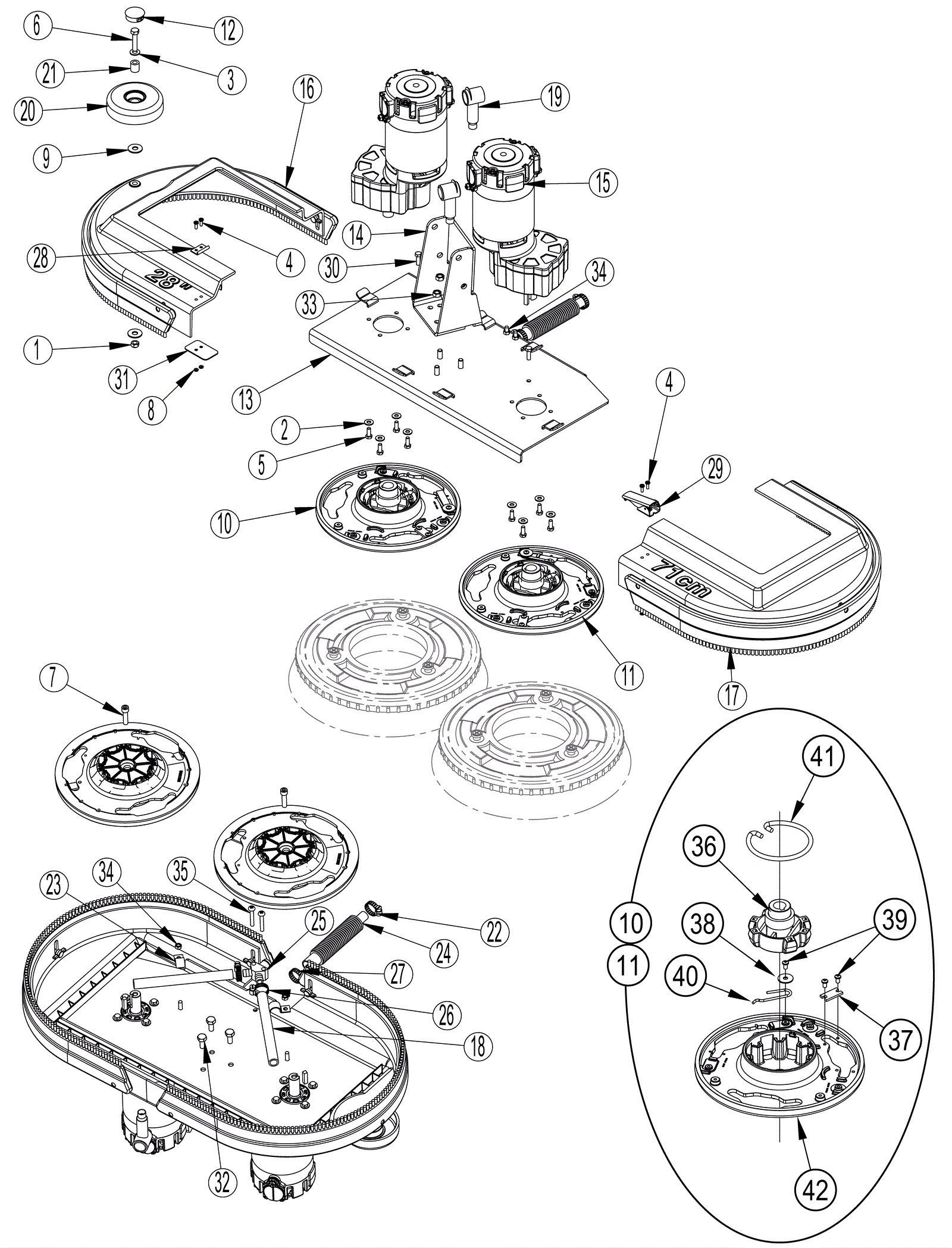

SC800 Scrub Deck Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
2 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
3 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
4a 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 4 (before June 2016) ships same day
4b 472-3627 SCR-BUTTON SOC SS M4-0.7X12 $9.26 4 (after May 2016) usually ships 17-28 days
5a 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 8 (before June 2016) ships same day
5b 472-3482 SCR SOC SS M6-1X14MM $12.31 8 (after May 2016) usually ships 17-28 days
6 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 1 ships same day
7 272-9905 Screw 5/16-18 x 1 1/4 socket head zinc plated $12.31 2 usually ships 17-28 days
8 472-3611 NUT-HEX NYL LOC SS M4-0.7 $9.26 4 usually ships 17-28 days
9 272-1835 Washer flat $12.31 2 usually ships 17-28 days
10 272-1382 Counterclockwise brush plate assembly $398.17 1 (includes 36-42) usually ships 17-28 days
11 272-1383 Clockwise brush plate assembly $467.19 1 (includes 36-42) usually ships 17-28 days
12 272-9868 Button plug $10.85 1 ships same day
13a 272-9869 26 inch brush plate weldment $147.59 1 (before June 2016) (26 inch models) usually ships 17-28 days
13b 272-9870 28 inch brush plate weldment $183.90 1 (before June 2016) (28 inch models) usually ships 1-5 days
13c 272-9906 34 inch brush plate weldment $199.52 1 (before June 2016) (34 inch models) usually ships 1-5 days
13d 272-9869 26 inch brush plate weldment $147.59 1 (after May 2016) (26 inch models) usually ships 17-28 days
13e 272-9870 28 inch brush plate weldment $183.90 1 (after May 2016) (28 inch models) usually ships 1-5 days
13f 272-9906 34 inch brush plate weldment $199.52 1 (after May 2016) (34 inch models) (on machines before April 2015, the machines design allowed the motor gearbox assembly to interfere with the recovery tank causing blown/shorted fuses and broken electrical stud connections.) (on machines after March 2015, brush plate weldt 34D 56112759 was modified by rotationg the motor gearbox assembly mounting holes 25 degrees to allow for a non-interfering motor positioning) usually ships 1-5 days
14 272-9871 Linkage bracket $77.12 1 usually ships 1-5 days
15a 272-9872 Gearbox motor assembly $1,256.12 2 usually ships 17-28 days
15b 272-9873 Carbon brush kit $146.14 2 usually ships 17-28 days
16a 272-9874 26 inch left brush skirt assembly $98.68 1 (26 inch models) usually ships 17-28 days
16b 272-9875 28 inch left brush skirt assembly $137.90 1 (28 inch models) usually ships 17-28 days
16c 272-9907 34 inch left brush skirt assembly $92.03 1 (34 inch models) usually ships 17-28 days
17a 272-9876 26 inch right brush skirt assembly $98.68 1 (26 inch models) usually ships 17-28 days
17b 272-9877 28 inch right brush skirt assembly $137.90 1 (28 inch models) usually ships 17-28 days
17c 272-9908 34 inch right brush skirt assembly $136.44 1 (34 inch models) usually ships 17-28 days
18a 154-0037 Tubing 1/2 x 5/8 (clear) (sold by the foot) $2.33 2 (26 inch models) usually ships 3-15 days
18b 272-2630 Hose $5.50 2 (28 inch models) usually ships 1-5 days
18c 170-7018 Hose $10.85 2 (34 inch models) usually ships 17-28 days
19 172-9147 Terminal insulator $13.76 2 (28 inch and 34 inch models) ships same day
20 272-9881 Wheel $14.91 1 ships same day
21 272-9882 Bushing $12.31 1 usually ships 17-28 days
22 997-2002 Hose clamp #6 $2.15 1 ships same day
23 170-0198 Hose clamp $10.85 2 ships same day
24 170-0033 Solution hose $55.56 1 usually ships 17-28 days
25 170-7013 Solution splitter $23.01 1 usually ships 17-28 days
26 997-2001 Hose clamp $2.42 2 ships same day
27 997-2002 Hose clamp #6 $2.15 1 ships same day
28 170-7029 Keeper $3.75 1 ships same day
29 170-7019 Brush deck latch $41.15 1 ships same day
30 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 2 ships same day
31 170-7026 Latch tab $11.57 1 usually ships 17-28 days
32 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 3 ships same day
33 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 ships same day
34 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 ships same day
35a 270-0294 Screw M6-1 x 40mm pan head $13.17 2 (before June 2016) usually ships 1-5 days
36 272-7257 6 tab gimbal and collar assembly $60.76 1 usually ships 17-28 days
37 172-0155 Stop plate $12.31 1 usually ships 17-28 days
38 172-0553 Washer 17/64 x 1/16 flat $10.85 1 usually ships 17-28 days
39 999-1833 Screw 10-14 x 3/8 pan head phillips stainless steel $0.99 3 ships same day
40 272-9883 Retainer spring $10.85 1 usually ships 17-28 days
41 272-9884 Brush holder spring $19.98 1 usually ships 17-28 days
42 272-9885 Brush plate $32.69 1 usually ships 17-28 days
N/S 272-9878 26 inch bristle skirt kit $169.11 1 (26 inch models) (includes 2 skirts and mounting hardware) ships same day
N/S 272-9879 28 inch bristle skirt kit $176.52 1 (28 inch models) (includes 2 skirts and mounting hardware) usually ships 17-28 days
N/S 272-9909 34 inch bristle skirt kit $206.91 1 (34 inch models) (includes 2 skirts and mounting hardware) usually ships 17-28 days
