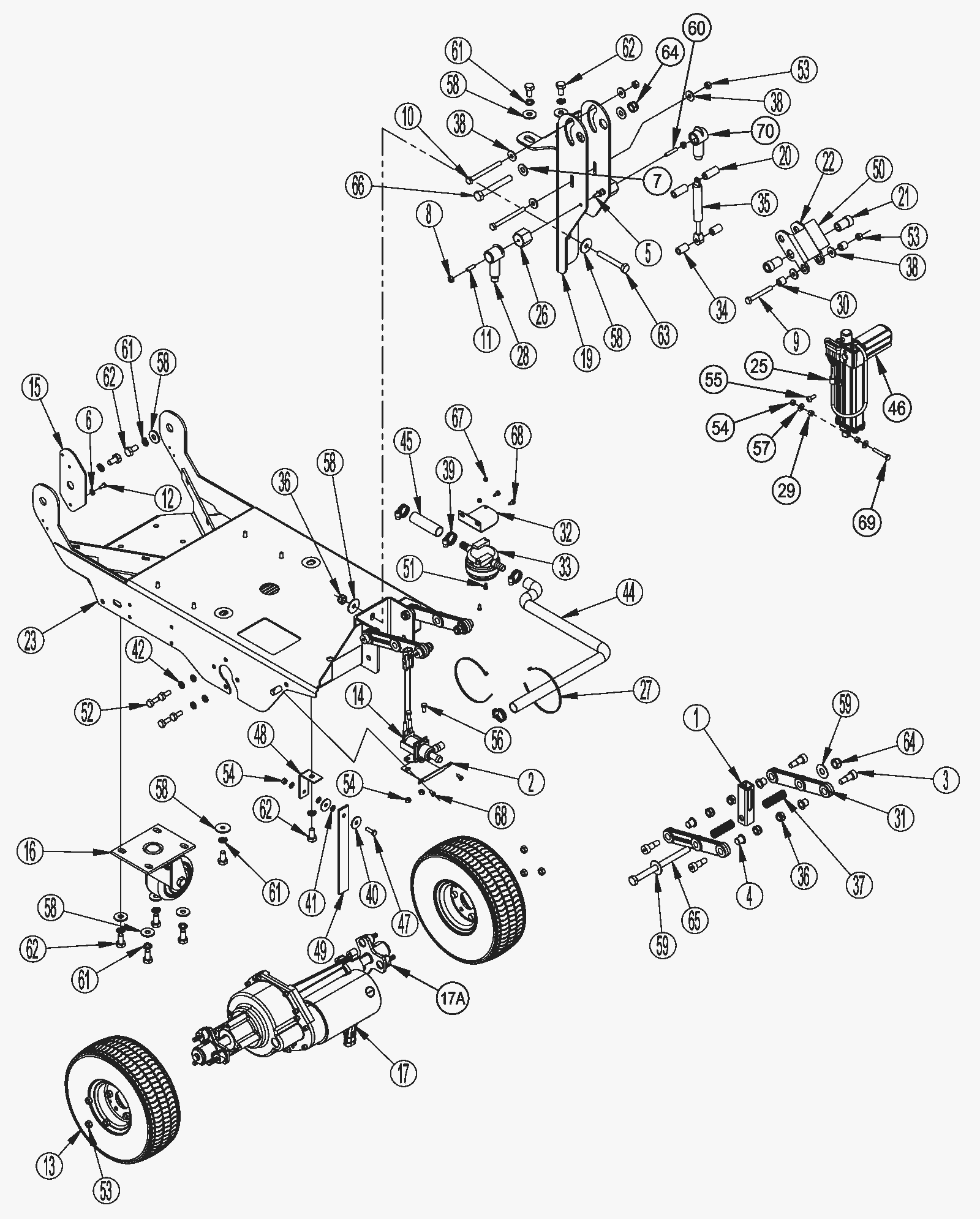

REV Chassis Assembly

#PartDescription ReqNotesAvailability
1 272-9812 Tube 1
2 270-0265 Solution valve bracket 1
3 472-3577 SCR-SOC SHD M12X16MMX M10-1.50 8
4 270-0288 Flanged bushing 8
5 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
6 999-1862 Washer #10 flat SAE stainless steel 1
7a 999-0120 Washer 3/8 SAE flat 2 (before March 2018)
7b 999-0114 Washer 1/2 SAE flat 2 (after March 2018)
8 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
9a 272-9823 Screw M8 x 65mm hex head (OBSOLETE) 1 (before March 2018)
9b 999-6736 Bolt M8-1.25 x 75mm hex head stainless steel 1 (after March 2018)
10 272-9819 Screw M8-1.25 x 90mm hex head 2
11 172-0345 Terminal stud 2
12a 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 1 (before March 2018)
12b 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1 (after March 2018)
13 272-9814 Tire 2
14 272-9815 Solenoid valve assembly 1
15a 272-9817 Connector bracket 1 (before March 2018)
15b 272-9817 Connector bracket 1 (after March 2018)
16 272-9818 Rear caster 1
17a 272-9820 Flange kit 2 (includes 17b) (after March 2018)
17b 272-9816 Transaxle 1
17c 991-3081 Transaxle 1 (before March 2018)
17d 272-9970 Transaxle motor kit 1 (optional) (includes 17e ) (after March 2018)
17e 372-1624 Carbon brush 4 (optional) (for 17a) (after March 2018)
19 472-4573 LIFTING SUPPORT WELDT 1
20 272-9825 Nylon spacer 2
21 272-9826 Nylon spacer 2
22 472-4574 LEVER 1
23 272-9813 Chassis weldment 1
25 172-9530 Cable clamp 1
26 172-0103 Electrical mount 2
27 997-2103 8 inch cable tie 8
28 172-8964 Terminal insulator 2
29 270-0227 Spacer (OBSOLETE) 2
30 270-0258 Spacer 2
31 472-7661 Lever kit 4
32 270-0267 Filter bracket 1
33a 272-3516 Water filter 1
33b 272-3516 Water filter 1 (optional)
34 270-0282 Spacer 2
35 270-0283 Gas spring 1
36 999-1120 Nut M10-1.5 nylon insert lock stainless steel 9
37 270-0287 Spring 2
38 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 6
39 997-2002 Hose clamp #6 4
40 999-0160 Washer 1/4 x 1 1/4 fender zinc plated 2
41 999-0017 Washer 1/4 external star lock 3
42 999-0028 Washer 5/16 split lock plain finish 8
43 999-0060 Washer 1/4 split lock plain finish 4
44a 270-0263 25 inch hose (clear) 1 (before March 2018)
44b 272-9541 Spiral hose 1 (after March 2018)
45 270-0270 3 inch hose (clear) 1
46 272-3543 Actuator 1
47 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 5
48 270-0273 Strap bracket 1
49 170-7146 Static strap 1
50 170-0226 Moving warning decal 1
51 270-0269 Screw M4-.7 x 10mm 2
52 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
53 999-0471 Nut M8-1.25 nylon insert lock zinc plated 9
54 999-0497 Nut M6-1 nylon insert lock stainless steel 4
55 272-8931 Screw M6-1 x 10mm pan head 1
56 999-9116 Screw M6-1 x 12mm hex head stainless steel 2
57 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
58 999-0716 Washer 3/8 x 1 1/4 fender 3
59 170-6124 Washer flat nylon 2
60 172-0346 Stud 1/4-20 1
61 999-0671 Washer M10 split lock plain finish 10
62 472-3486 SCR-HEX M10-1.5 X 20MM 10
63 999-9115 Screw M10-1.5 x 75mm hex head stainless steel 1
64 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
65 270-0297 Screw M12-1.75 x 160mm hex head 1
66 270-0255 Screw M12-1.75 x 90mm hex head 1
67 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
68 270-0264 Screw M5 x 12mm hex head self-tapping 4
69 999-1147 Bolt M6-1 x 40mm hex head stainless steel 1
70 272-9820 Flange kit 2
N/S 272-9970 Transaxle motor kit 1 (optional)
N/S 372-1624 Carbon brush 4 (optional)
N/S 272-9824 24V 25amp onboard battery charger (OBSOLETE) 1 (replaced by part number 272-9824 (56383856)
N/S 272-2225 Onboard charger cord 1
N/S 991-8566 Onboard battery charger power cord 1
N/S 272-8616 120V Onboard charger kit 1 (the onboard battery charger part number 272-9824 (56112544) has been replaced in production by part number 270-8393 (56383856). If you need to replace part number 272-9824 (56112544), please order onboard charger kit part number 272-8616 (56383869).
N/S 270-8395 AC cord 1 (after March 2018)
