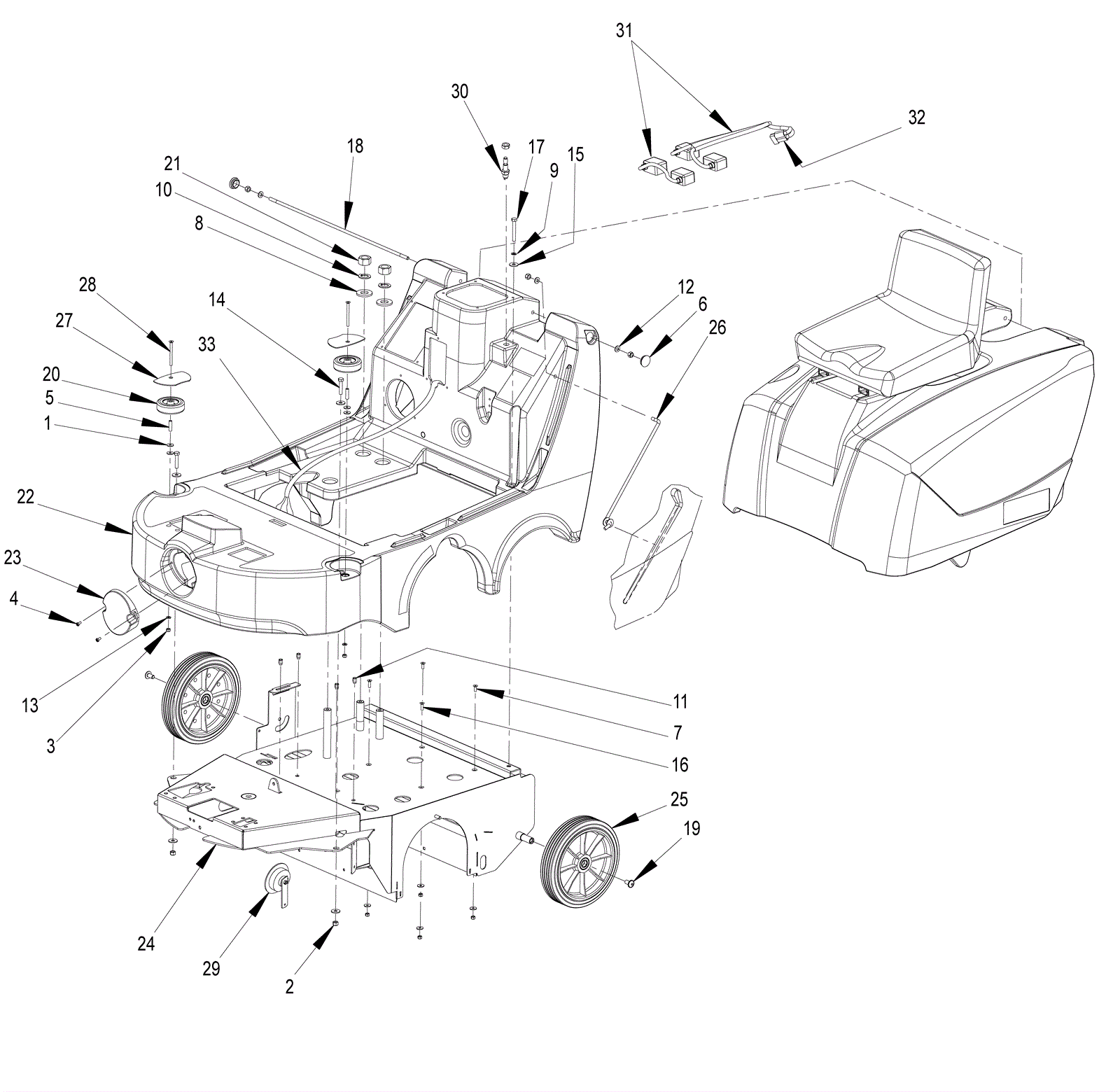

Terra 3700B Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 270-8151 Roller bumper assembly $393.07 4 (Washer) usually ships 1-5 days
2 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 5 (Nut) usually ships 1-5 days
3 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 6 (Nut) usually ships 1-5 days
4 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 2 (Screw) usually ships 1-5 days
5 270-8151 Roller bumper assembly $393.07 2 (Spacer) usually ships 1-5 days
6 172-4695 Locking tank cap $16.95 2 usually ships 17-28 days
7 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 2 (Screw) usually ships 1-5 days
8 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 2 (Washer) usually ships 1-5 days
9 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 1 (Washer) usually ships 1-5 days
10 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 2 (Washer) usually ships 1-5 days
11 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 4 (Insert) usually ships 1-5 days
12 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 3 (Washer) usually ships 1-5 days
13 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 2 (Washer) usually ships 1-5 days
14 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 2 (Screw) usually ships 1-5 days
15 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 5 (Washer) usually ships 1-5 days
16 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 2 (Screw) usually ships 1-5 days
17 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 1 (Screw) usually ships 1-5 days
18 172-3781 Handle shaft $19.36 1 usually ships 1-5 days
19 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 2 (Screw) usually ships 1-5 days
20 270-8151 Roller bumper assembly $393.07 2 (Roller bumper) usually ships 1-5 days
21 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 2 (Nut) usually ships 1-5 days
22 272-5690 Rotomolded chassis $988.35 1 usually ships 1-5 days
23 272-5691 Light cover $41.25 1 usually ships 1-5 days
24 N/A Not available Call for price 1 (Frame) usually ships 3-26 days
25 270-8152 Rear wheel $160.86 2 usually ships 17-28 days
26 270-8153 Bonnet supporting rod $23.77 1 usually ships 1-5 days
27 270-8151 Roller bumper assembly $393.07 2 (Plate) usually ships 1-5 days
28 270-8151 Roller bumper assembly $393.07 2 (Screw) usually ships 1-5 days
29 472-1366 HORN 24V PKD $74.21 1 usually ships 17-28 days
30 172-3646 Safety switch $47.96 1 usually ships 1-5 days
31 N/A Not available Call for price 1 (Battery harness) usually ships 3-26 days
32 272-8374 120amp connector (red) $52.67 1 usually ships 17-28 days
33 270-8155 Machine harness $716.22 1 usually ships 1-5 days
KIT 1 270-8150 Chassis hardware assembly (OBSOLETE) $304.70 1 (includes: 2-4, 7-17, 19, 21) usually ships 1-5 days
KIT 1 270-8151 Roller bumper assembly $393.07 1 (includes: 1, 3, 5, 13, 20, 27, 28) usually ships 1-5 days
