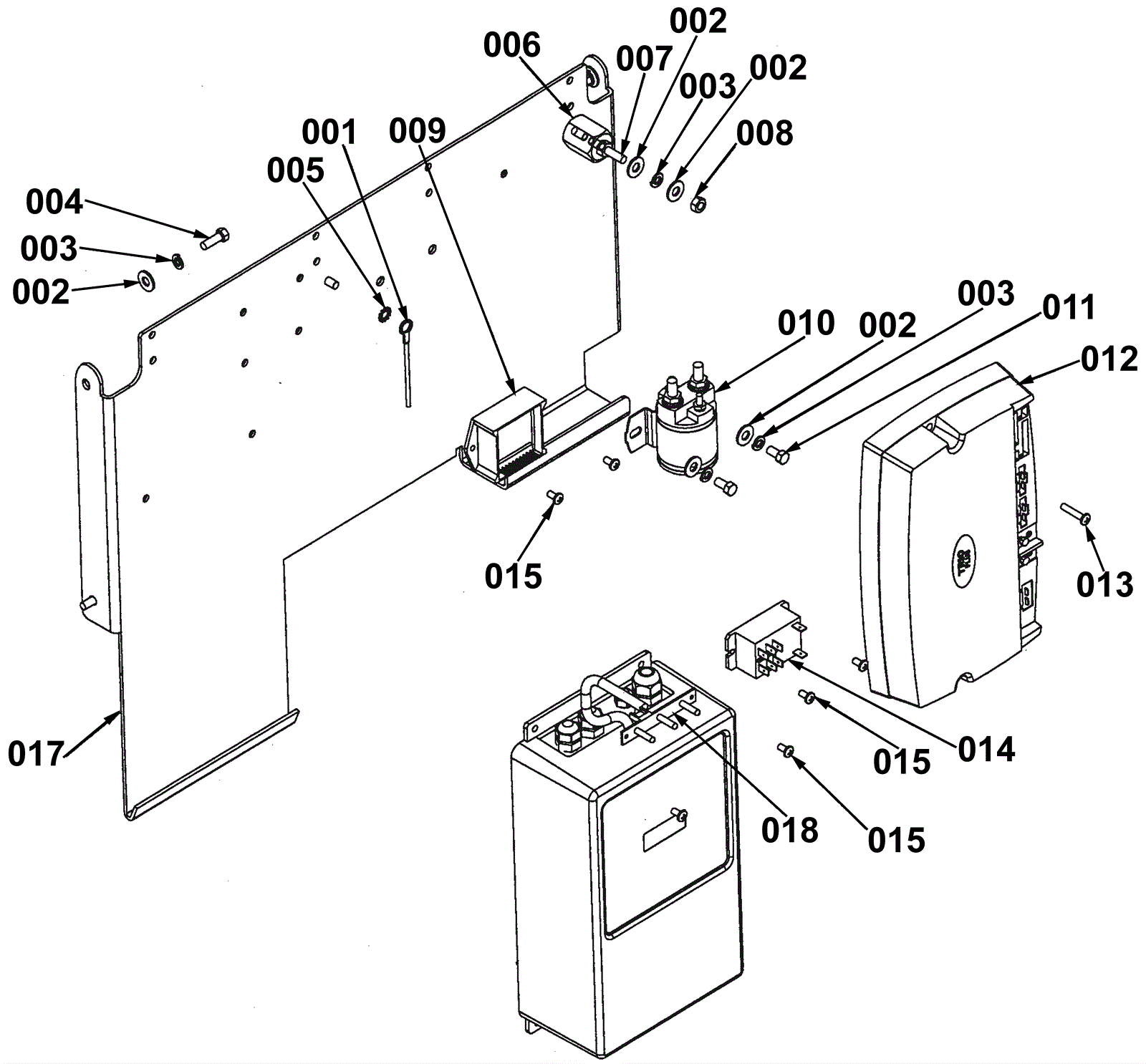

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
170-7464
|
Main power harness (OBSOLETE) |
1 |
(rotary) |
|
001b |
270-0140
|
Main power harness (OBSOLETE) |
1 |
(cylindrical) |
|
002 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
003 |
999-0060
|
Washer 1/4 split lock plain finish |
7 |
|
|
004 |
999-0275
|
Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling |
4 |
|
|
005 |
999-0017
|
Washer 1/4 external star lock |
1 |
|
|
006 |
170-0063
|
Insulated stand off |
1 |
|
|
007 |
170-0064
|
Stud 1/4-20 |
1 |
|
|
008 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
009 |
170-7466
|
Speed interface module (OBSOLETE) |
1 |
|
|
010 |
172-2805
|
36V contactor |
1 |
|
|
011 |
999-0273
|
Screw 1/4-20 x 1/2 hex washer head thread rolling zinc |
2 |
|
|
012a |
270-0142
|
Main controller |
1 |
(28 inch) |
|
012b |
170-7468
|
Main controller (OBSOLETE) |
1 |
(34 inch) |
|
013 |
999-0389
|
Screw 10-32 x 1 round head slotted zinc plated |
1 |
|
|
014 |
172-1779
|
36V relay SPST |
1 |
|
|
015 |
999-0811
|
Screw 10-32 x 3/8 pan head phillips stainless steel |
6 |
|
|
017 |
170-7470
|
Electrical panel (OBSOLETE) |
1 |
|
|
018 |
170-7469
|
36V onboard battery charger with display and cord |
1 |
|
|
N/S |
170-8872
|
24 inch positive battery cable |
1 |
|
|
N/S |
170-8873
|
32 inch negative battery cable (OBSOLETE) |
1 |
|
|
N/S |
170-8874
|
200amp fusable cable |
1 |
|
|
N/S |
170-7471
|
Battery connection decal (OBSOLETE) |
1 |
|
|
N/S |
170-7472
|
Logic harness (OBSOLETE) |
1 |
|
|
N/S |
170-0229
|
Battery warning decal |
1 |
|
|
