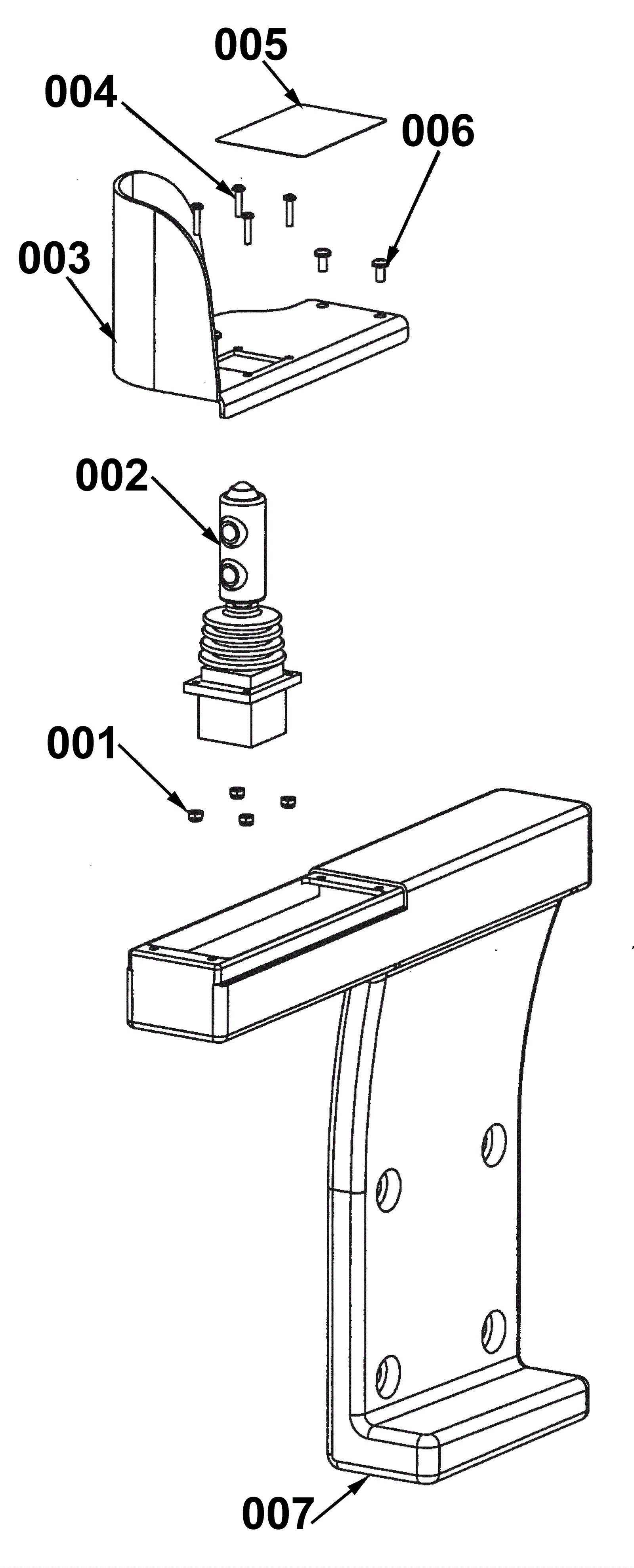

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0227
|
Nut 6-32 hex nylon insert lock jam zinc plated |
4 |
|
|
002 |
170-7454
|
3 button joystick weldment (OBSOLETE) |
1 |
|
|
003 |
170-7458
|
Joystick control panel (OBSOLETE) |
1 |
|
|
004 |
999-0365
|
Screw 6-32 x 5/8 pan head phillips zinc plated |
4 |
|
|
005 |
170-7456
|
Joystick panel decal (OBSOLETE) |
1 |
|
|
006 |
999-0409
|
Screw 10-24 x 3/8 pan head slotted zinc plated |
4 |
|
|
007 |
170-7457
|
Right arm control |
1 |
|
|
