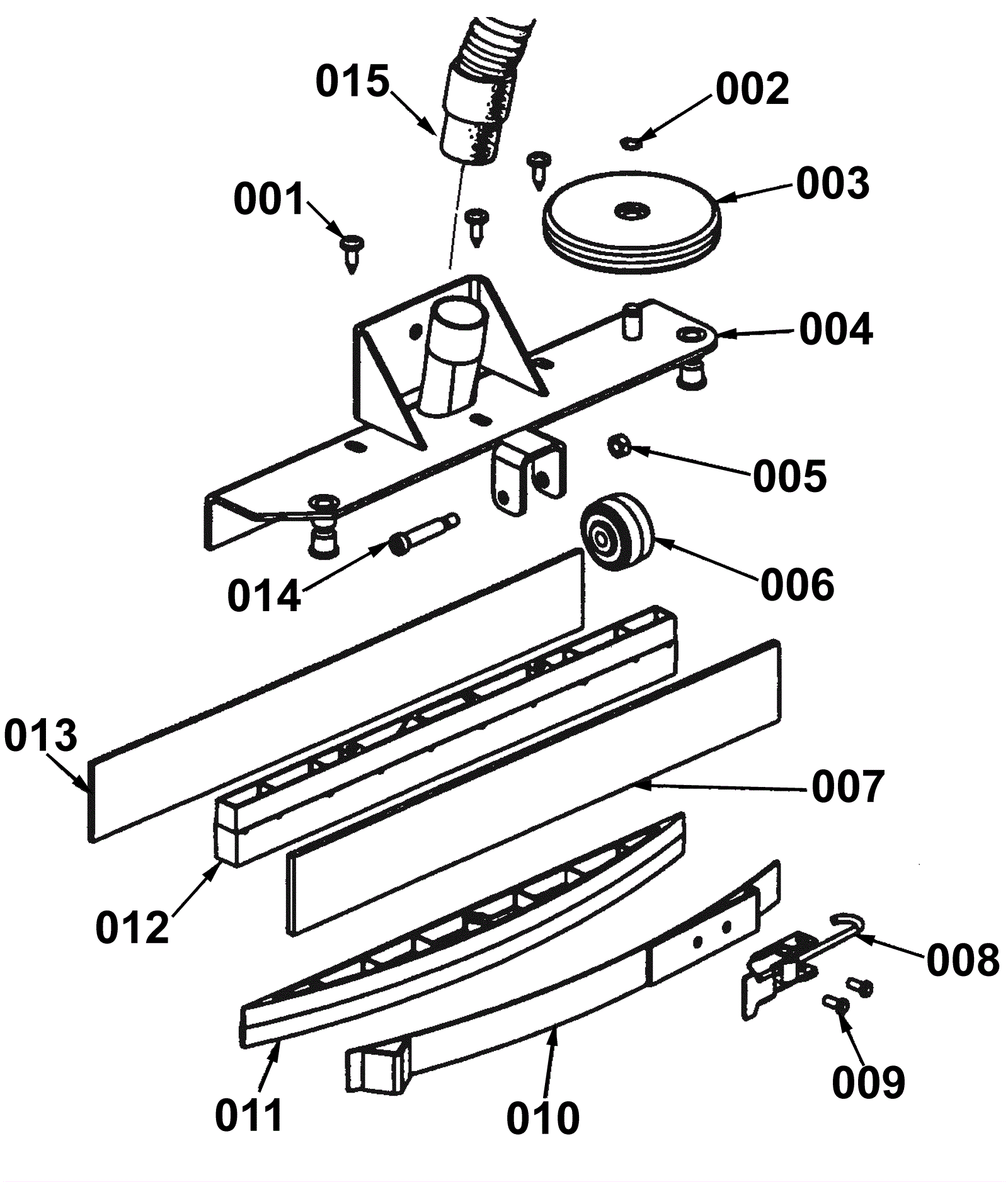

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0717
|
Screw 1/4-14 x 3/4 pan head phillips self-drilling SS |
3 |
|
|
002 |
170-7333
|
Snap ring |
1 |
|
|
003 |
170-7172
|
4 inch guide wheel |
1 |
|
|
005 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
006 |
170-3310
|
Front wheel |
1 |
|
|
007 |
170-8169
|
Squeegee blade gum rubber rear (tan) (OBSOLETE) |
1 |
|
|
008 |
170-7162
|
Clamp latch |
1 |
|
|
009 |
170-7163
|
Aluminum rivet |
2 |
|
|
011 |
170-7451
|
Secondary squeegee wedge |
1 |
|
|
012 |
170-7452
|
Secondary squeegee spacer |
1 |
|
|
013 |
994-0019
|
Squeegee blade 33 inch urethane front (clear) |
1 |
OEM blade no longer available |
|
014 |
999-0813
|
Bolt 5/16-18 x 1 x 1/4-20 socket head shoulder |
1 |
|
|
015 |
170-7453
|
Squeegee vacuum hose |
1 |
|
|
