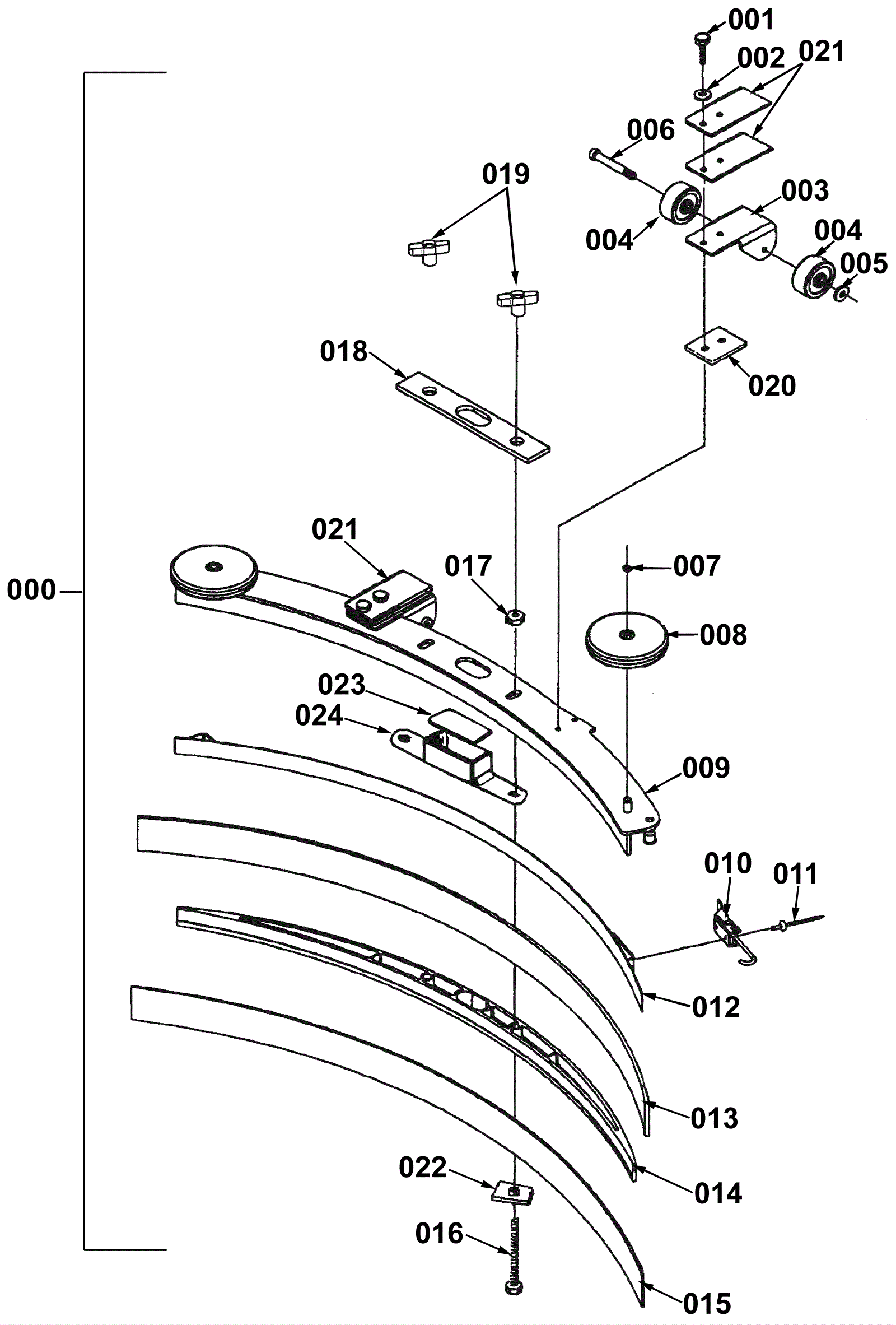

| # | Part | Description |
Req | Notes | Availability |
|---|
000a |
170-1668
|
32 inch squeegee assembly |
1 |
(28 inch) |
|
000b |
170-7188
|
39 inch squeegee assembly |
1 |
(34 inch) |
|
001a |
999-0830
|
Screw 1/4-20 x 1 hex head plain finish |
4 |
(28 inch) |
|
001b |
999-9073
|
Screw 12-24 x 1 hex head slotted zinc indent |
4 |
(34 inch) |
|
002 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
003 |
170-7168
|
Squeegee wheel bracket |
2 |
|
|
004 |
170-7169
|
Squeegee wheel |
4 |
|
|
005 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
006 |
170-7170
|
Bolt 5/16 x 2 1/4 shoulder |
2 |
|
|
007 |
170-7333
|
Snap ring |
2 |
|
|
008 |
170-7172
|
4 inch guide wheel |
2 |
|
|
009a |
170-7173
|
32 inch squeegee weldment |
1 |
(28 inch) |
|
009b |
170-7161
|
39 inch squeegee weldment |
1 |
(34 inch) |
|
009c |
270-0132
|
41 inch squeegee weldment |
1 |
(optional) |
|
010 |
170-7162
|
Clamp latch |
1 |
|
|
011 |
170-7163
|
Aluminum rivet |
2 |
|
|
012a |
170-7175
|
32 inch retainer clamp strap |
1 |
(28 inch) |
|
012b |
170-7164
|
39 inch retainer clamp strap |
1 |
(34 inch) |
|
013a |
270-0134
|
Squeegee blade 32 inch gum rubber rear (tan) (OBSOLETE) |
1 |
(28 inch) |
|
013b |
170-7336
|
Squeegee blade 32 inch linatex rear (OBSOLETE) |
1 |
(28 inch) |
|
013c |
170-8919
|
Squeegee blade 39 inch linatex notched rear |
1 |
(34 inch) |
|
013d |
170-7334
|
Squeegee blade 39 inch linatex rear (red) |
1 |
(34 inch) |
|
013e |
170-8171
|
Squeegee blade 42 inch gum rubber rear (tan) |
1 |
(optional) (OEM) |
|
013f |
994-0022
|
Squeegee blade 42 inch gum rubber rear (tan) |
1 |
(optional) (NON-OEM) |
|
013g |
270-0084
|
Squeegee blade 41 inch linatex rear BOOST |
1 |
(optional) |
|
014a |
170-7176
|
32 inch squeegee spacer |
1 |
(28 inch) |
|
014b |
170-7159
|
39 inch squeegee spacer |
1 |
(34 inch) |
|
014c |
270-0135
|
41 inch squeegee spacer |
2 |
(optional) |
|
015a |
170-7165
|
Squeegee blade 33 inch urethane front (clear) |
1 |
(28 inch) (OEM) |
|
015b |
994-0019
|
Squeegee blade 33 inch urethane front (clear) |
1 |
(28 inch) (NON-OEM) |
|
015c |
170-8935
|
Squeegee blade 32 inch front linatex (red) |
1 |
(28 inch) (OEM) |
|
015d |
994-0023
|
Squeegee blade 32 inch gum rubber front notched (red) |
1 |
(28 inch) (NON-OEM) |
|
015e |
170-7167
|
Squeegee blade 40 1/4 inch urethane front (clear) |
1 |
(34 inch) (OEM) |
|
015f |
994-0021
|
Squeegee blade 40 1/4 inch urethane front (clear) |
1 |
(34 inch) (NON-OEM) |
|
015g |
270-0083
|
Squeegee blade 41 inch gum rubber front BOOST |
1 |
(optional) |
|
016 |
999-0887
|
Bolt 3/8-16 x 3 hex head hot dipped galvanized |
2 |
|
|
017 |
999-0628
|
Nut 3/8-16 hex jam stainless steel |
2 |
|
|
018 |
170-9420
|
Gasket |
1 |
|
|
019 |
170-0171
|
Knob |
2 |
|
|
020 |
170-7177
|
Shim |
2 |
|
|
021 |
170-7338
|
Squeegee weight |
2 |
(optional) |
|
022 |
170-3394
|
Back up nut |
2 |
|
|
023 |
170-0166
|
Squeegee gripping pad |
1 |
|
|
024 |
170-7126
|
Air duct (OBSOLETE) |
1 |
|
|
