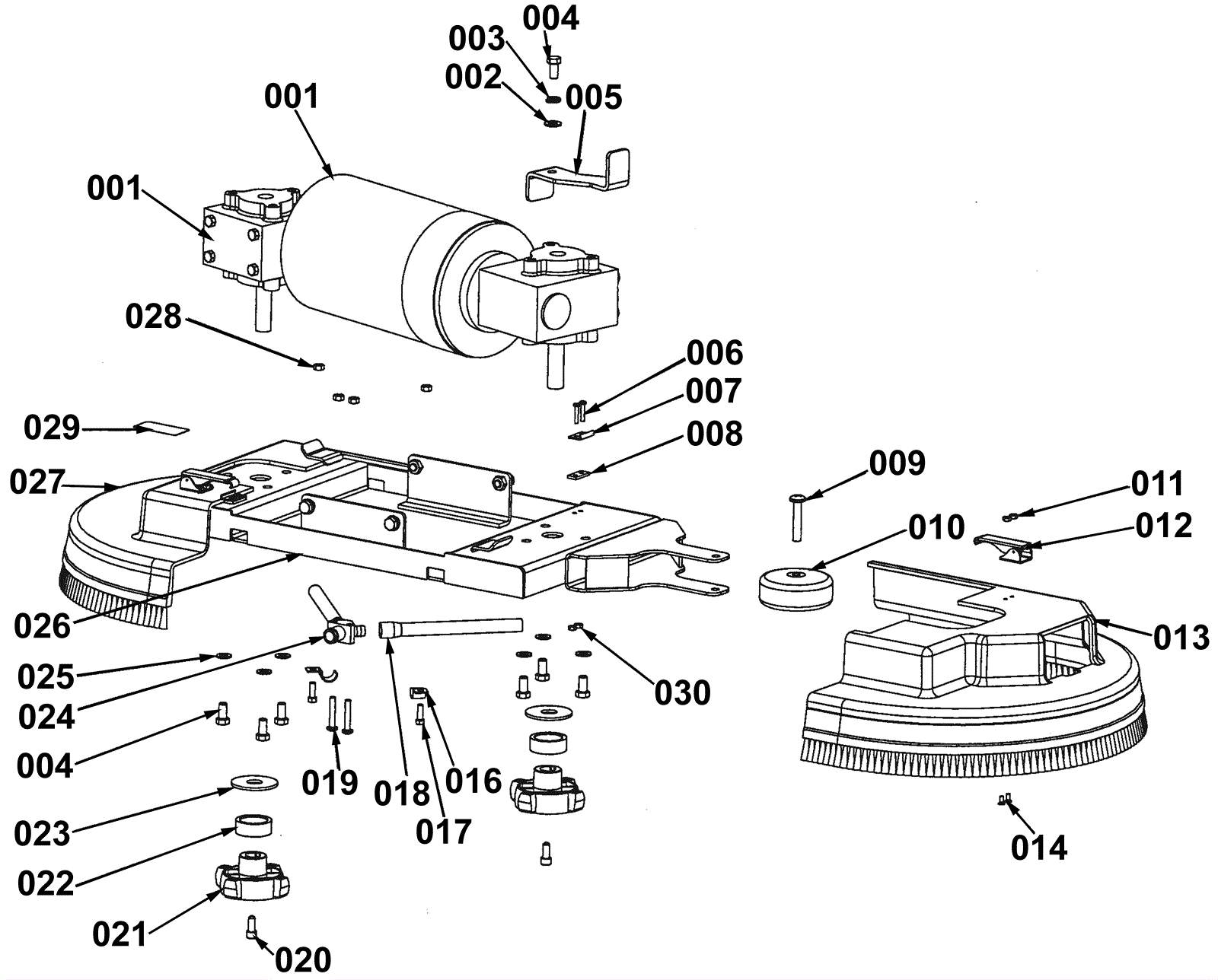

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
170-7348
|
36V dual gear box brush motor (OBSOLETE) |
1 |
|
|
001b |
170-3075
|
Square keyway |
2 |
|
|
002 |
999-0032
|
Washer 3/8 USS flat plain finish |
2 |
|
|
003 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
2 |
|
|
004 |
999-0119
|
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
11 |
|
|
005a |
170-7350
|
Squeegee plate |
1 |
(automatic side) |
|
005b |
170-7341
|
Squeegee plate |
1 |
(manual side) |
|
006 |
999-1356
|
Screw 8-32 x 7/8 pan head phillips stainlesss steel |
4 |
|
|
007 |
170-7029
|
Keeper |
2 |
|
|
008 |
170-7342
|
Keeper spacer (OBSOLETE) |
2 |
|
|
009 |
999-9074
|
Screw 5/16-18 x 1 1/2 flat head stainless steel |
1 |
|
|
010 |
170-7343
|
4 inch guide wheel (OBSOLETE) |
1 |
|
|
011 |
999-1036
|
Nut 8-32 hex NTM nylon insert jam lock stainless steel |
4 |
|
|
012 |
170-7019
|
Brush deck latch |
2 |
|
|
013 |
170-7351
|
34 inch right brush housing |
1 |
|
|
014 |
999-9075
|
Screw 10-32 x 3/8 flat head socket steel |
4 |
|
|
016 |
170-0198
|
Hose clamp |
2 |
|
|
017 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
|
018 |
170-7352
|
Vinyl tubing (sold by the foot) |
3 |
(cut down to 34 inches) |
|
019 |
999-0398
|
Screw 1/4-20 x 1 1/2 pan head phillips zinc plated |
2 |
|
|
020 |
170-1599
|
Screw 5/16-18 x 3/4 socket head nylock |
2 |
|
|
021a |
170-0207
|
Male gimbal with collar |
2 |
|
|
021b |
170-0207
|
Male gimbal with collar |
|
|
|
022 |
170-0233
|
Brush driver collar - See pop-up (OBSOLETE) |
2 |
|
|
023 |
170-0706
|
Washer 3/4 rubber |
2 |
|
|
024 |
170-7013
|
Solution splitter |
1 |
|
|
025 |
999-0659
|
Washer 3/8 medium split lock stainless steel |
10 |
|
|
026 |
170-7353
|
34 inch brush motor frame |
1 |
|
|
027 |
170-7354
|
34 inch left brush housing (OBSOLETE) |
1 |
|
|
028 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
|
029 |
170-0226
|
Moving warning decal |
1 |
|
|
030 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
4 |
|
|
